3.3 The TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A
Enclosure
The TX3-CX-4-A, TX3-CX-6-A, and TX3-CX-8-A enclosures mount with four
screws as shown in Figure 6.
36.83cm
14.50in
27.94cm
11.00in
17.78cm
7.00in
30.48cm
12.00in
Figure 6.
UL Listed TX3-CX Card Access System Installation Manual
28
LT-6906 Copyright 2019
DOUBLE KNOCKOUT 1.125 AND
TAMPER SWITCH
GROUND TERMINAL

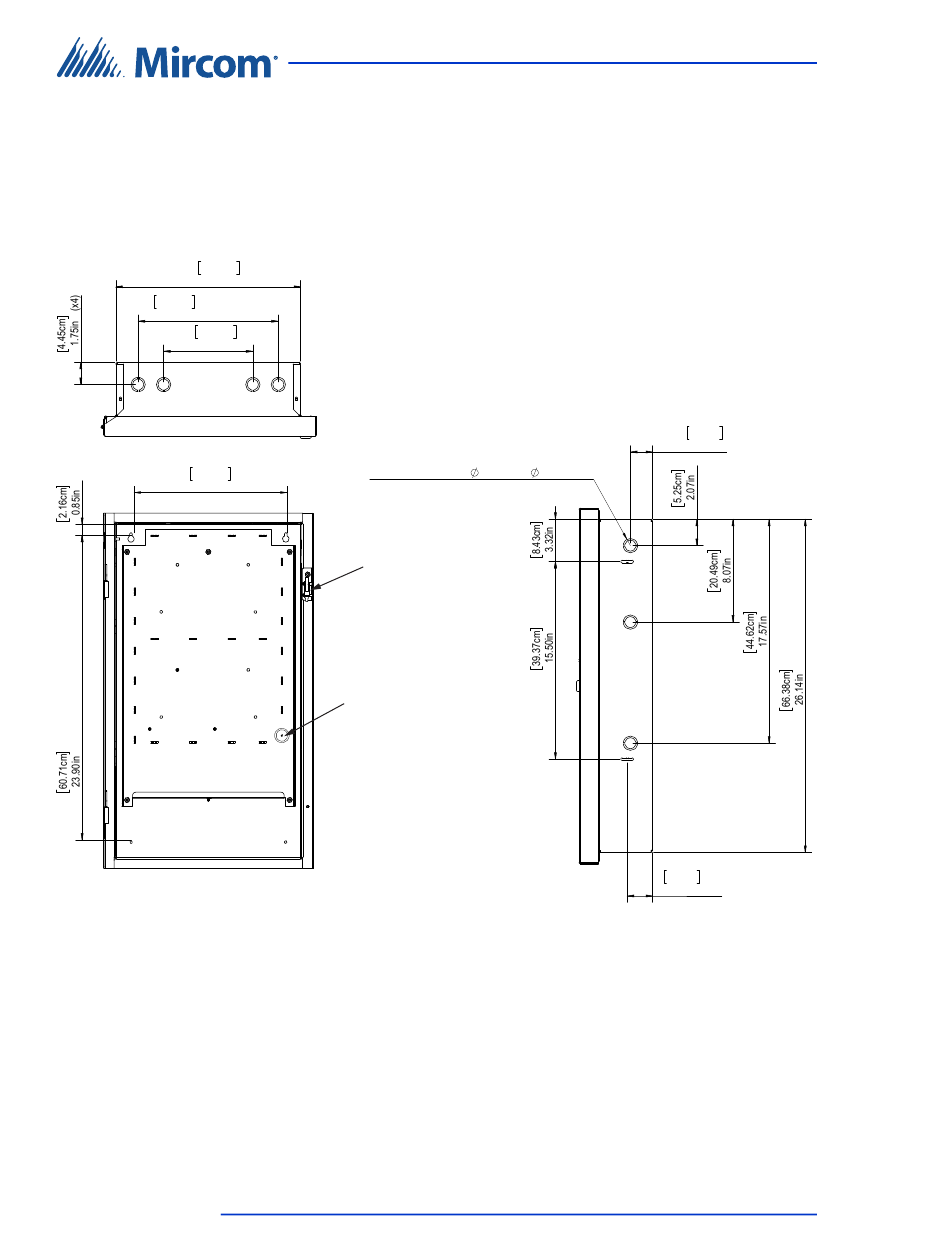

Enclosure dimensions for TX3-CX-4-A, TX3-CX-6-A,
TX3-CX-8-A
Mechanical Installation
4.45cm
1.75in
0.875 (x10)
5.08cm
2.00in (X2)
Version 2
