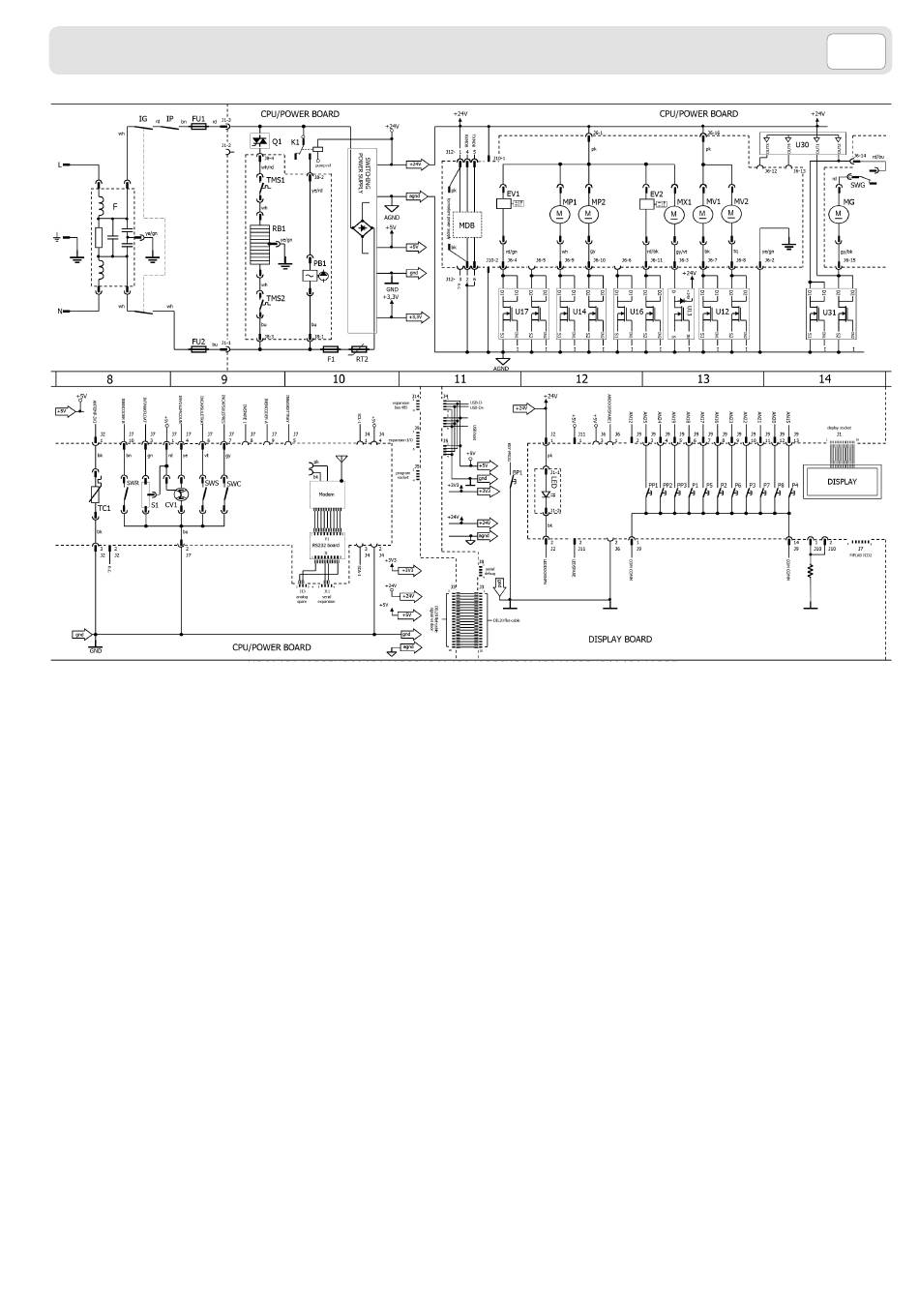

Electrical Plan - LAVAZZA Magystra LB 2600 INT Installation And Maintenance Manual

BP1 = programming mode button
CV1 = coffee water volumetric counter
EV1 = solenoid valve
EV2 = coffee infusion water solenoid valve
F = anti-noise filter
F1 = fuse 4A delayed
FU1/2 = fuses 12A delayed
IG = general switch
IP = door safety switch
K1 = relay for boiler pump
MG = coffee brewer motor
MP1/2 = products motor
MV1/2 = aspirator motor
MX1 = mixer motor
P1...8 = drinks selection buttons
TQ = TURQUOISE
PK = PINK
WH = WHITE
GY = GREY
VT = VIOLET
BU = BLUE

ELECTRICAL PLAN

PB1 = boiler pump
PP1...3 = preselection buttons
Q1 = boiler thermostat
RB1 = boiler resistance
RT2 = ptc device
S1 = water tank level sensor
SWC = insertion capsules switch
SWG = safety switch for coffee brewer motor
SWR = waste container presence switch
SWS = capsule drawer locking switch
TC1 = boiler water temperature sensor
TMS1/2 = boiler interruption thermal device
U12...17 = drivers for actuators 24V
U30...31 = drivers for coffee brewer
GN = GREEN
YE = YELLOW
OG = ORANGE
RD = RED
BN = BROWN
BK = BLACK
