The microswitches inserted into the capsule flap are used
to: detect the capsule passage in the unit , detect the cor-
rect closure of the flap and enable the capsule unit to
carry out the dispensing cycle.

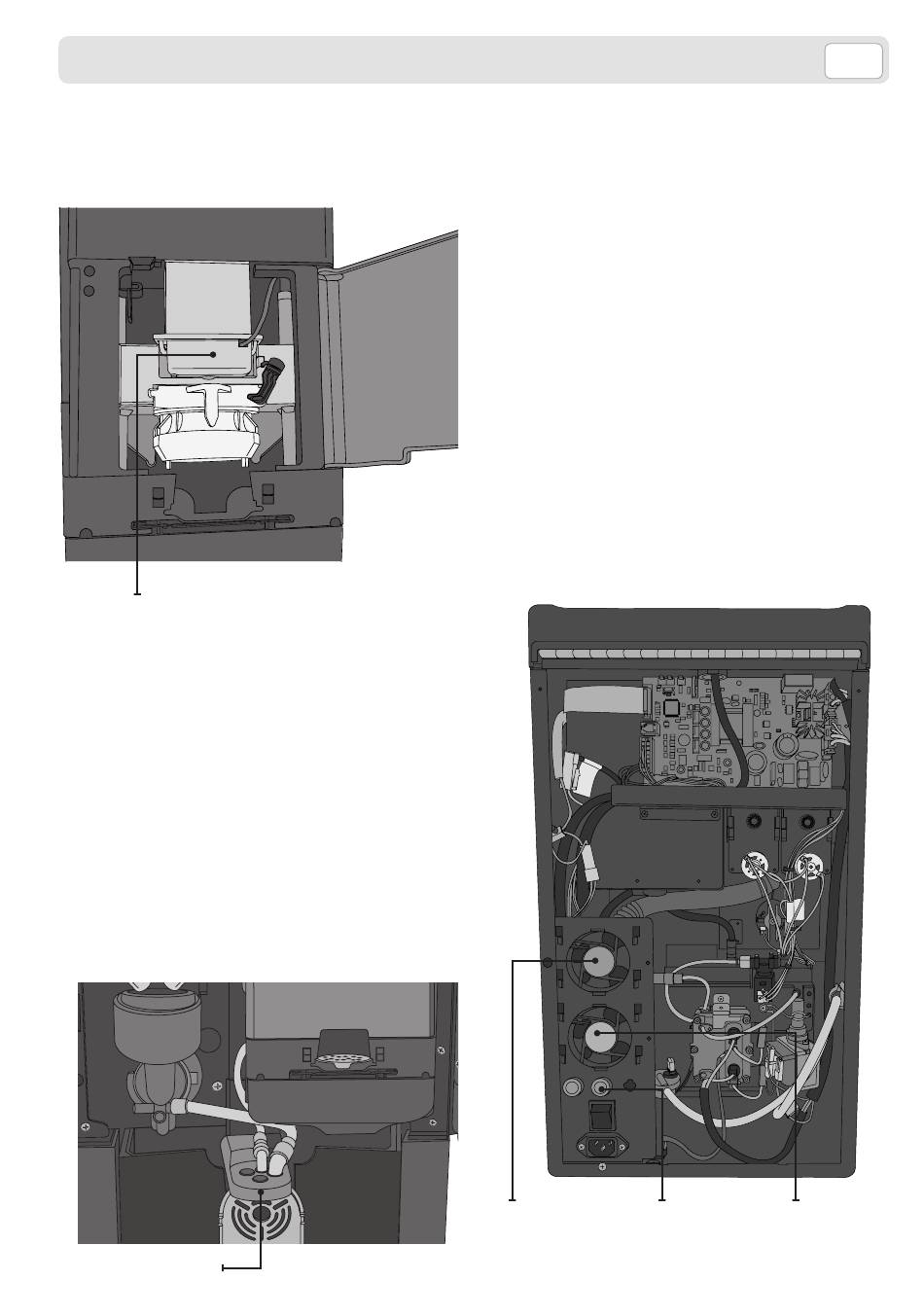

Capsule group

MIXING BOWLS

The mixing bowls of the mixer will accommodate the
instant products you have poured to mix them with wa-
ter. The fan of mixer motor will act at the bottom and
the drink outflow to the dispenser occurs by means of
a silicone tube. Mixing bowls and outlet tubes can be
washed with lukewarm running water.

NOZZLES HOLDER

A fixed support on the cup station is intended to house
the dispensers from the coffee group and the mixer
bowl. Press the release lever and put the support toward
to clean or to remove the nozzles holder.
Nozzles holder
MACHINE COMPONENTS
Powder
aspirator

POWDER ASPIRATOR

An aspirator will eject suspended product resid-
uals from the vending machine. The aspirator is
connected with a drawer beneath product slides to
intercept the residual impalpable powder coming
from selections. The action time of the aspirator is
programmable by means of a software parameter.
Aspirated air is ejected through the slots of the rear
panel.

AIR ASPIRATOR

It provides to intake air from the inside of the ma-
chine so as to avoid the formation of condensation
and decreases the moisture level by a constant re-
circulation. Intake air is expelled through the rear
panel slots.

FUSES

Installed on the mains power supply to protect the
machine. Fuses must be necessarily replaced by
specialised technical personnel only.
Fuses
EN
Air aspirator
13
