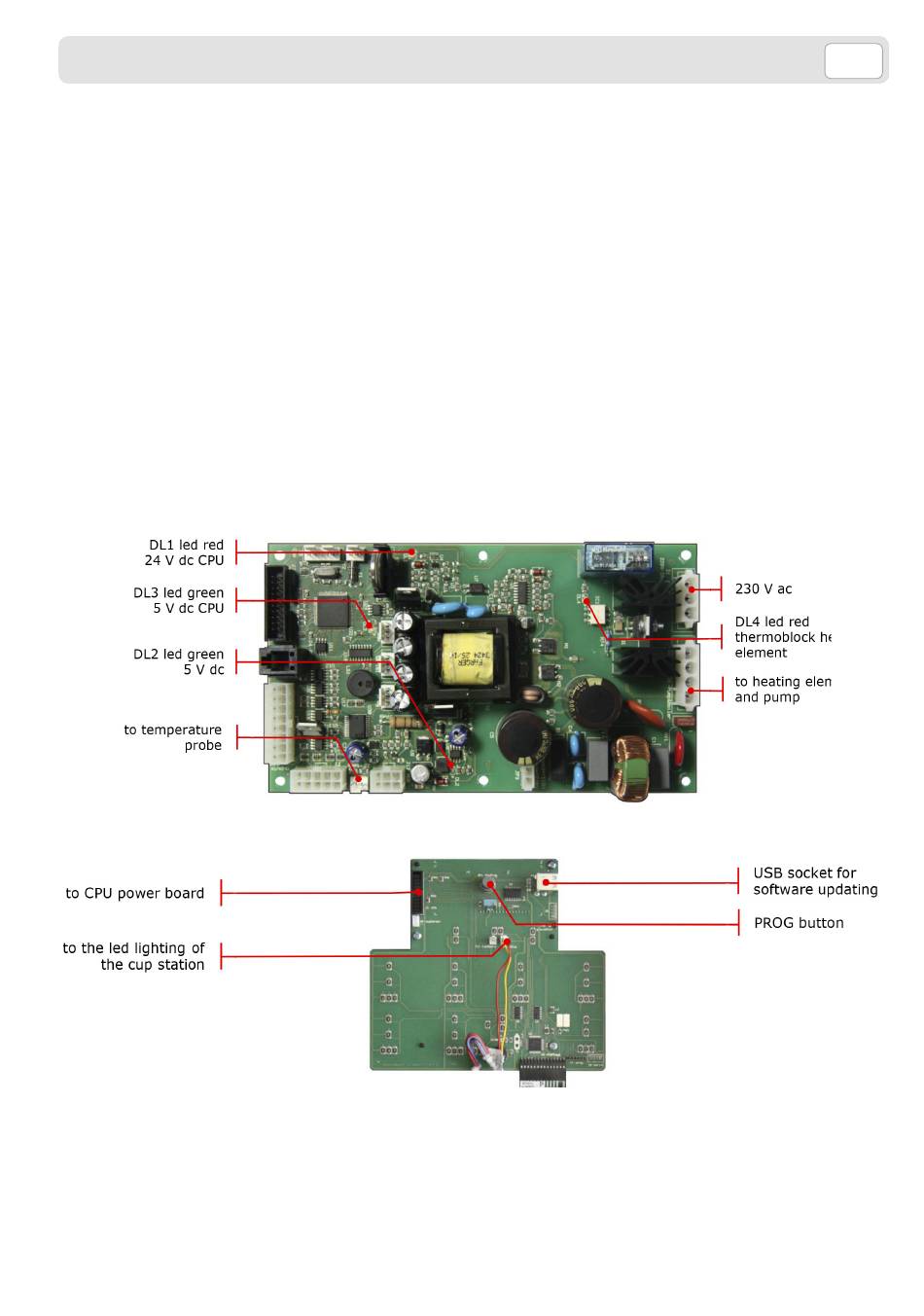

CPU BOARD
The CPU board is intended to govern the machine
operation. It is the place of location of machine
programs and it is secured to the frame by means
of board supports. The temperature probe cable is
separated from the machine wiring to avoid ham-
pering the removal of the probe.
DISPLAY BOARD
It gathers and processes the signals necessary to
display the messages for the user and the operator.
It receives the signals from the selection keyboard
and supplies the leds intended to illuminate the cup
compartment; the button for access to the to the
programming mode of the machine is secured at the
back of the display board and protected by a plastic
flap.
ELECTRONIC COMPONENTS
MODEM
A modem (if installed), connected with the CPU
board by means of a phone cable (J8) and supplied
by 24 V (J16), provides for connection with a remote
operator to send/receive data by means of an aerial
placed inside the door.
RFID
The RFID card is a hardware option that can equip
the machine. It is housed inside the cover, it enables
the operator to programme the product decounters
and/or it can be used as a payment system.
EN
39
