MIXER MOTORS

The motors of mixers help you mix instant prod-
ucts with water by means of the rotation of the fan
mounted on their axis; the rotation speed can be
adjusted to the features of the various products.

VOLUMETRIC COUNTER

It supplies the CPU the water quantity running
through the coffee brewer to establish its volume.
The water quantity of instant selections is estab-
lished by the time set in the "water N" parameter
only.

PRODUCT MOTORS

They are intended to rotate the worm screws inside
instant product canisters to pour the product quan-
tity necessary for selection in the mixing bowls.

PUMP

A vibrating pump send water inside the ther-
moblock.
Pump
14

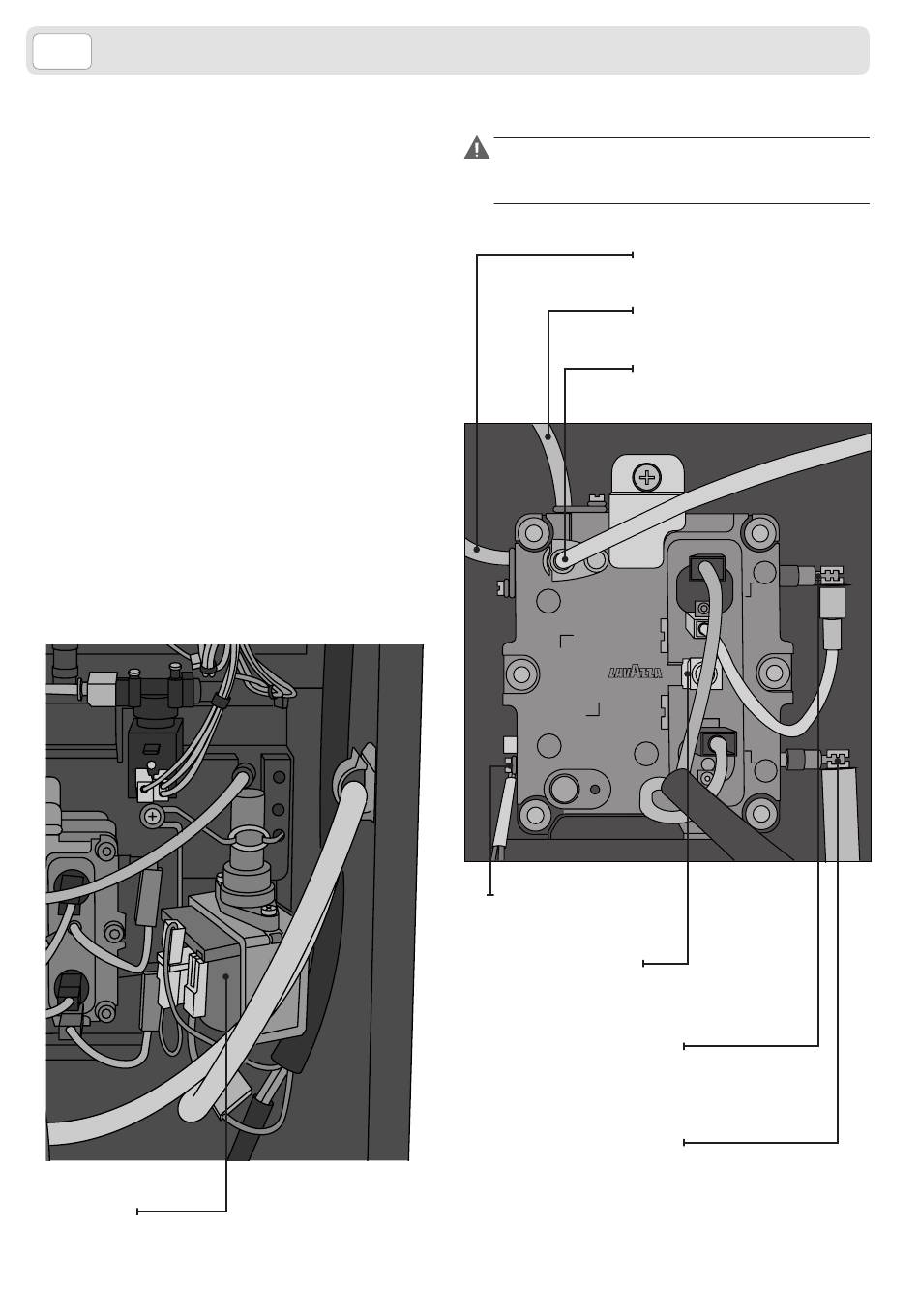

MACHINE COMPONENTS
Temperature probe

THERMOBLOCK

It's not allowed the disassembly of the ther-
moblock . these components may be very hot
even if the machine is off .
Mixer connection
Coffee capsule
group connection
Water inlet
Klixon
Heating element
connections
Heating element
connections
