EN
SE = Tank
CV = Volumetric counter
MP = Volumetric pump
TB = Termoblock
GC = Capsule group
M1 = Mixer
ER = Dispenser
40

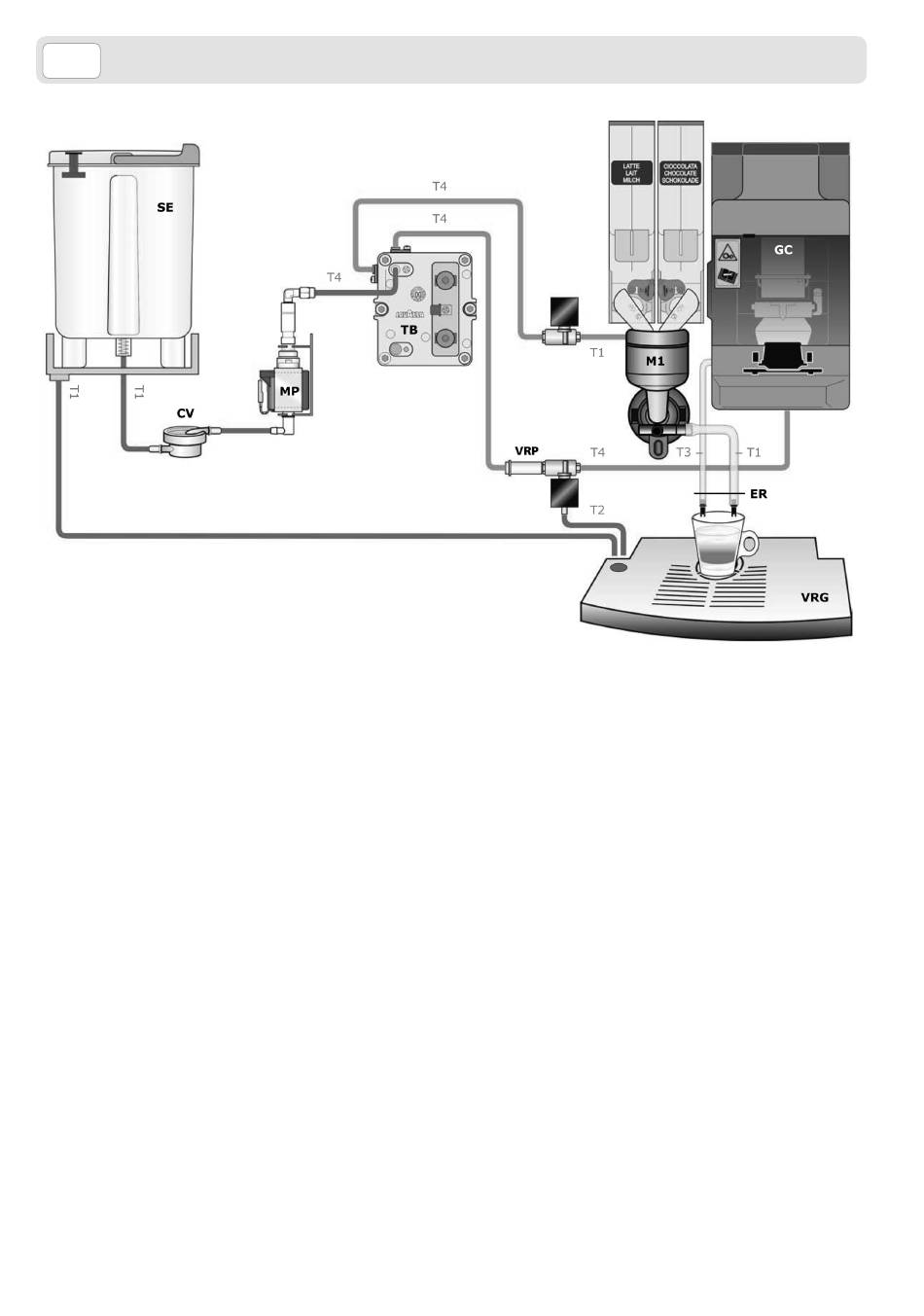

HYDRAULIC DIAGRAM

VRG = Drip tray
T1 = Silicon hose 06/09T
T2 = Silicon hose 07/11T
T3 = Silicon hose 04/06T
T4 = Silicon hose 02/04T
VRP = Pressure control valve 6 bar
