Outer Gas Nozzles Cleaning Brush Program Sequence - Fronius Robacta TSS /i Operating Instructions Manual

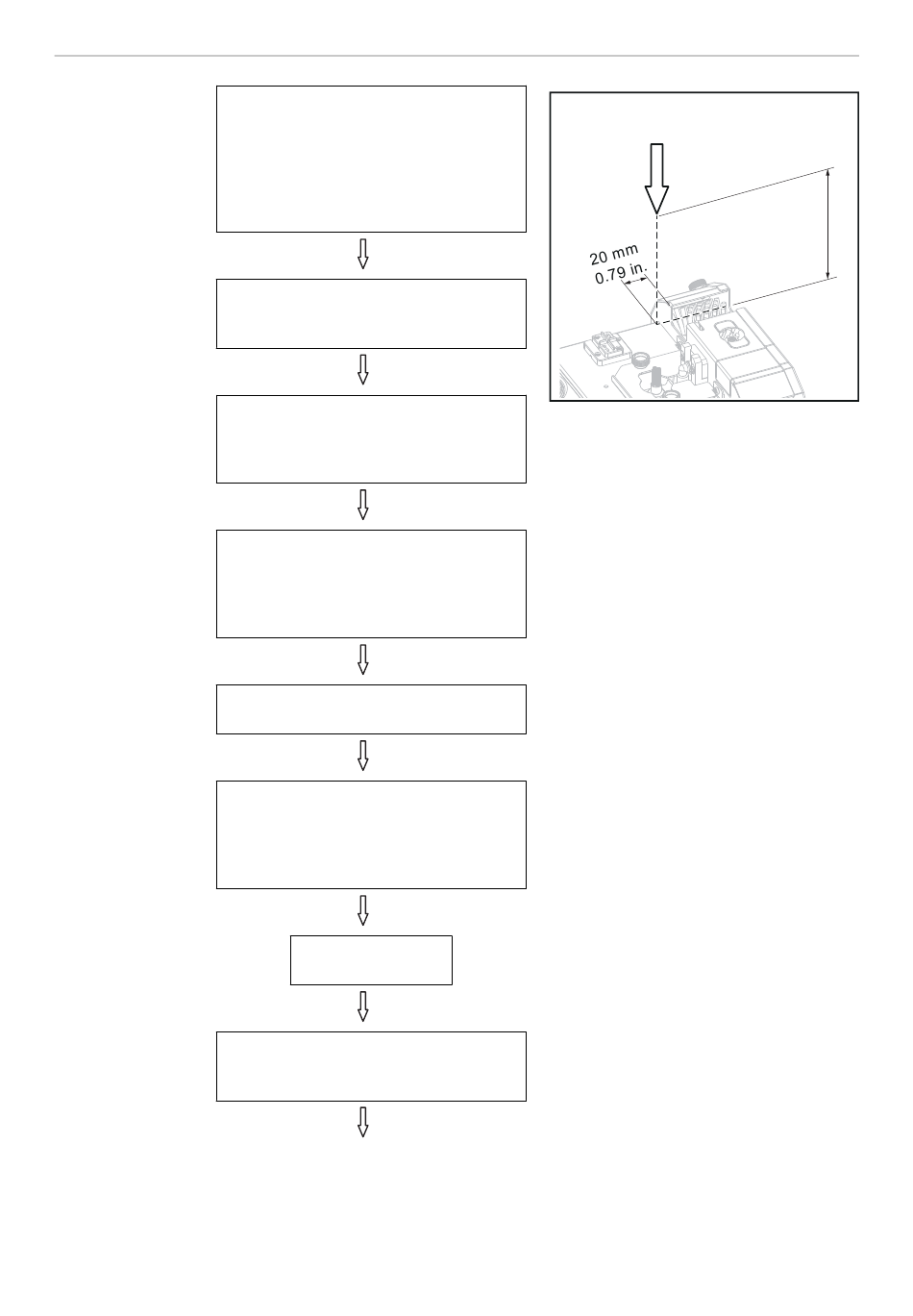

Outer gas
Move to position E
nozzles cleaning
approx. 50 mm/1.97 in. centrally above
brush program
the outer gas nozzle cleaning brush and
sequence
approx. 20 mm/0.79 in. in front of the
housing of the service station
Position welding torch at an angle
Speed: High-speed mode
Set
external signal "External valve brush
cleaning"
Move into the external gas nozzle
cleaning brush
max. speed: 50 cm/min / 19.69 ipm
max. insertion depth: 12 mm / 0.47 in.
Pass through the external gas nozzle
cleaning brush x2
forwards and backwards
max. speed: 50 cm/min / 19.69 ipm
max. insertion depth: 12 mm / 0.47 in.
Turn welding torch 180°
*)
Pass through the external gas nozzle
cleaning brush x2
forwards and backwards
max. speed: 50 cm/min / 19.69 ipm
max. insertion depth: 12 mm / 0.47 in.
Reset
external signal "External valve brush
cleaning"
76
Wait approx. 2-3
seconds
E
*) Alternative:
Break the second cleaning brush free
and pass through each cleaning brush x
1
50 mm
1.97 in.
