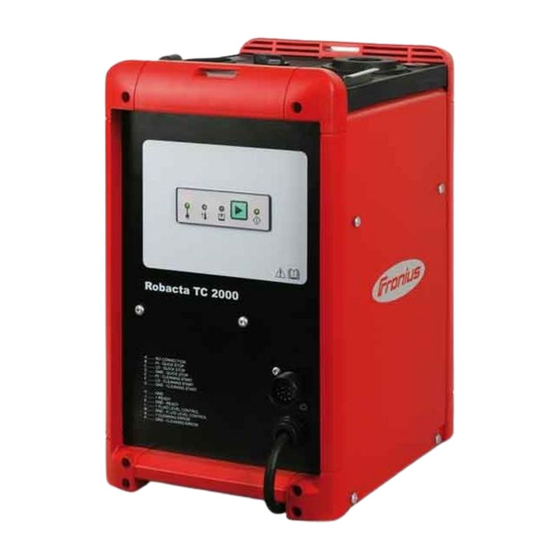

Fronius Robacta TC 2000 Operating Instructions Manual
Hide thumbs
Also See for Robacta TC 2000:
- Operating instructions & spare parts (72 pages) ,
- Operating instructions manual (80 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Fronius Robacta TC 2000
Summary of Contents for Fronius Robacta TC 2000
- Page 1 Robacta TC 2000 Robacta TC 2000 Twin Robacta TC 2000 Ø35 Robacta TC 2000 LH TWIN Robacta TC 2000 US Robacta TC 2000 Twin US Robacta TC 2000 Ø1.181inch US Robacta TC 2000 LH TWIN US Operating instructions 42,0426,0135,EN 025-21102022...
-
Page 3: Table Of Contents
Parting agent types and their use Functional principle Functional principle Magnetic flux densities within the cleaning coil for Robacta TC 2000, Robacta TC 2000 Magnetic flux densities within the cleaning coil for Robacta TC 2000 Twin, Robacta TC 2000 Twin US... - Page 4 Cleaning program sequence with parting agent nebuliser Cleaning program sequence with dipping bowl Cleaning program sequence - Robacta TC 2000 Twin, Robacta TC 2000 Twin US Program sequence with parting agent nebuliser - overview Program sequence with parting agent nebuliser and dipping bowl - overview...
-
Page 5: Safety Rules
Safety rules Explanation of DANGER! safety notices Indicates immediate danger. ▶ If not avoided, death or serious injury will result. WARNING! Indicates a potentially hazardous situation. ▶ If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage or injury could occur. ▶... -
Page 6: Proper Use
Proper use The device is to be used exclusively for its intended purpose. The device is intended solely for the electromagnetic cleaning of Fronius welding torches. Any use above and beyond this purpose is deemed improper. The manufacturer shall not be held liable for any damage arising from such usage. -
Page 7: Specific Hazards
Specific hazards Stay out of the working area of the robot. The device must be incorporated into a higher-level safety system within a se- cured area. If this area has to be accessed when setup and maintenance work is carried out, make sure that the entire system is switched off for the duration of the work in this area and that it is prevented from starting up accidentally, e.g., as the result of a... -
Page 8: Risks From Mains Current And Operating Current
Protective clothing refers to a variety of different items. Operators should: Protect eyes and face from UV rays, heat and sparks using a protective visor and regulation filter Wear regulation protective goggles with side protection behind the protect- ive visor Wear stout footwear that provides insulation even in wet conditions Protect the hands with suitable gloves (electrically insulated and providing protection against heat) -
Page 9: Emc Device Classifications
The housing screws provide an adequate ground conductor connection for earth- ing the housing. The screws must never be replaced with different screws unless a reliable ground conductor connection is set up. EMC Device Devices in emission class A: Classifications Are only designed for use in industrial settings Can cause line-bound and radiated interference in other areas Devices in emission class B:... -
Page 10: Safety Measures In Normal Operation
When setting up the device, ensure an all-round clearance of at least 0.5 m (19.69 in.) from any surrounding objects, e.g. walls, other devices or objects. The device must be set up at least 1 m (40 in.) away from computers, control lines and the welding process. -
Page 11: Safety Inspection
(e.g. relevant product standards of the EN 60 974 series). Fronius International GmbH hereby declares that the device is compliant with Directive 2014/53/EU. The full text on the EU Declaration of Conformity can be found at the following address: http://www.fronius.com Devices marked with the CSA test mark satisfy the requirements of the relevant standards for Canada and the USA. -
Page 13: General
General... -
Page 15: General
I/O connecting plug (X1) of the Robacta TC 1000 can be used with the cleaning devices without any modi- fications. Robacta TC 2000 The cleaning devices are more or less maintenance-free, as there are no mechan- ically stressed parts. Application The cleaning device cleans welding torches in automated steel applications. - Page 16 WARNING! Risk of serious injury from: The magnetic field surrounding the cleaning opening Compressed air/parting agent mixture escaping from the cleaning opening Flying parts (shavings, etc.) Mechanically powered components Keep device free from current and pressure during maintenance and servicing. Do not use the functions described here until you have fully read and understood the following documents: These Operating Instructions...
-
Page 17: Parting Agent Types And Their Use
Forbidden for anyone wearing a pacemaker Parting agent NOTE! types and their Parting agents are not included in the scope of supply. Parting agent types and their use: "Robacta TC Cool +" parting agent for immersing the welding torch in the dipping bowl "Robacta Reamer"... -
Page 18: Functional Principle
Functional principle Functional prin- Once the cleaning device is connected to the mains power supply, the mains ciple voltage indicator lights up. The capacitors, which store energy for the clean- ing operation, are discharged and no outputs are activated. NOTE! Before the capacitors can be charged, the cleaning device must be connected to both the mains power supply and the robot control. - Page 19 Once the cleaning operation is complete, the program sequence restarts by checking the device's temperature. If there was a problem during the clean- ing operation, the "Error" signal is output. The cleaning device resumes char- ging the capacitors. Once ready to clean ("Ready"), a second cleaning opera- tion can be started.
-
Page 20: Magnetic Flux Densities Within The Cleaning Coil For Robacta Tc 2000, Robacta Tc 2000
Magnetic flux Depending on the application, the strength of the magnetic flux density on the densities within individual areas of the welding torch can be controlled by regulating how deeply the cleaning coil the welding torch is immersed in the cleaning coil. for Robacta TC 2000, Robacta NOTE! -
Page 21: Magnetic Flux Densities Within The Cleaning Coil For Robacta Tc 2000 Twin, Robacta Tc
Magnetic flux Depending on the application, the strength of the magnetic flux density on the densities within individual areas of the welding torch can be controlled by regulating how deeply the cleaning coil the welding torch is immersed in the cleaning coil. for Robacta TC 2000 Twin, NOTE! -
Page 22: Scope Of Supply And Options
Scope of supply and options General The cleaning device may be operated in conjunction with various options. De- pending on the area of application, various sequences in the work process can be optimized as a result. Scope of supply Cleaning device with dipping bowl and integrated cleaning unit Standard I/O connecting plug (X1) without cable Four screws for fitting the cleaning device to the installation stand Available op-... -
Page 23: Transport
Transport Transport The device is to be transported by the following devices: devices On pallets using a forklift truck On pallets using a lift truck Manual WARNING! Danger from machines and objects falling. This can result in serious injury and damage to property. ▶... -
Page 25: Controls, Connections And Mechanical Components
Controls, connections and mechan- ical components... -
Page 27: Safety
Safety Safety Observe the following safety rules for all work described in the "Control ele- ments, connections and mechanical components" section. WARNING! Danger due to incorrect operation and incorrectly performed work. This can result in serious injury and damage to property. ▶... -
Page 28: Standard I/O Connecting Plug (X1) Pin Assignment For Robot Control
Standard I/O connecting plug (X1) pin assign- ment for robot control General WARNING! Danger from electric current. This can result in serious personal injury and damage to property. ▶ The cleaning device must remain de-energised until the installation is fully complete. - Page 29 Roboter Not assigned +24 V HIGH - Quick Stop +24 V LOW - Quick Stop HIGH - Cleaning Start +24 V LOW - Cleaning Start +24 V Supply Voltage max. 20 mA Ready +24 V Supply Voltage max. 20 mA Fluid Level Control Supply Voltage +24 V...
-
Page 30: Controls, Connections And Mechanical Components
Controls, connections and mechanical compon- ents General All functions of the cleaning unit are activated by the robot control. For adjust- ment, the cleaning operation can be manually triggered on the control panel. NOTE! The individual illustrations may differ slightly from your device. However, the functioning of the controls and the connections is identical. - Page 31 NOTE! If the dipping bowl in use, it should be refilled with parting agent as soon as the fill level indicator lights up. NOTE! The cleaning function of the Robacta TC remains available even if the fill level indicator is illuminated. Discharge key press the key briefly;...
-
Page 32: Robacta Tc 2000, Robacta Tc 2000 Us Connections And Mechanical Components
Robacta TC 2000, Robacta TC 2000 US con- nections and mechanical com- ponents (10) Front of device Rear of device Level sensor monitors the parting agent fill level in the dipping bowl Cleaning opening with internal parting-agent injection nozzle and brush seal for cleaning the gas nozzle and the inside of the welding torch for coating the gas nozzle and welding torch interior with parting agent... - Page 33 Wire cutter connection for electrically controlling the wire cutter (10) Compressed air connection for supplying the cleaning device with compressed air (11) Installation stand (option) (12) Spatter tray for welding residues (12) (11)
-
Page 34: Robacta Tc 2000 Twin, Robacta Tc 2000 Twin Us Connections And Mechanical Compon
Robacta TC 2000 Twin, Robacta TC 2000 Twin US connections and mechanical com- ponents (10) Front of device Rear of device Level sensor monitors the parting agent fill level in the dipping bowl Cleaning opening with internal parting-agent injection nozzle for cleaning the gas nozzle and the inside of the welding torch for coating the gas nozzle and welding torch interior with parting agent Dipping bowl with spill tray... - Page 35 (10) Compressed air connection for supplying the cleaning device with compressed air (11) Installation stand (option) (12) Spatter tray for welding residues (12) (11)
-
Page 37: Installation And Commissioning
Installation and commissioning... -
Page 39: Safety
This can result in serious personal injury and damage to property. ▶ All the work and functions described in this document must only be carried out by a trained Fronius service technician. ▶ Read and understand this document in full. -
Page 40: Before Commissioning
Before commissioning Operators, main- WARNING! tenance person- Risk of machines starting automatically. This can result in serious injury and damage to property. ▶ The device must only be operated/serviced by 1 person at a time. ▶ Ensure that there is only 1 person within the working area of the device when the device is being worked on. -
Page 41: Mains Connection
Mains connec- CAUTION! tion Danger due to insufficiently dimensioned electrical installations. This can result in damage to property. ▶ Dimension the mains lead and its fuse to suit the local power supply. The technical data shown on the rating plate applies. CAUTION! Danger from incorrect mains voltage. -
Page 42: Bolting The Cleaning Device To The Underlying Surface (Foundation)
Bolting the cleaning device to the underlying sur- face (foundation) Screwing the NOTE! cleaning device and installation The device should only ever be set up with the designated installation stand. stand to the un- derlying surface NOTE! (foundation) Different fixings may be required to connect the installation stand to the under- lying surface (foundation) depending on the nature of this surface. -
Page 43: Connecting The Mains Cable
Connecting the mains cable Connecting the Connect the mains cable: mains cable Plug in the mains cable Turn the mains cable 45° to the right until you hear it latch into place... -
Page 44: Installing The Wire Cutter
Installing the wire cutter Installing the NOTE! wire cutter on the cleaning Wire cutters for conventional applications (one wire electrode) and for twin ap- plications (two wire electrodes) are installed in the same way - as described be- device low. Attach the wire cutter holder (1) to the cleaning device Fix the wire cutter (2) to the holder... -
Page 45: How The Electrically-Controlled Wire Cutter Works
If a torch neck pushes the valve lever (1) to the side by more than 15° with the gas nozzle, the wire cutter is activ- ated and the wire electrode is cut. NOTE! The wire electrode is cut while the torch neck is moving. -
Page 46: Filling The Dipping Bowl With Parting Agent
Filling the dipping bowl with parting agent Filling the dip- NOTE! ping bowl with parting agent Only use the "Robacta TC Cool +" parting agent supplied by the manufacturer. The composition of the manufacturer's parting agent is intended specifically for the Robacta TC. -
Page 47: Connecting The Cleaning Device To The "Robacta Reamer" Parting Agent Container
Connecting the cleaning device to the "Robacta Reamer" parting agent container Connecting the NOTE! cleaning device to the "Robacta Only use "Robacta Reamer" parting agent supplied by the manufacturer. Reamer" parting The composition of the manufacturer's parting agent is intended specifically for agent container the Robacta TC. -
Page 48: Starting Up The Cleaning Device
Starting up the cleaning device General NOTE! Not coating the interior of the welding torch may result in permanent soiling of the torch when welding begins. Always wet the inside of the welding torch with the manufacturer's "Robacta Reamer" parting agent before starting automatic operation. To achieve the best cleaning results, please note the following: Apply an even layer of parting agent to the inside of the torch Follow the cleaning sequences as described below... -
Page 49: Cleaning Program Sequence - Robacta Tc 2000, Robacta Tc 2000 Us
Cleaning program sequence - Robacta TC 2000, Robacta TC 2000 US Program se- Weld quence with Clean gas nozzle tip and nozzle fitting parting agent Spray parting agent nebuliser - over- Weld view Program se- Weld quence with Cool welding torch in dipping bowl... -
Page 50: Cleaning The Gas Nozzle Tip And Nozzle Fitting - Detailed Description
Cleaning the gas NOTE! nozzle tip and During the cleaning operation, blow out the welding torch with compressed air nozzle fitting - detailed descrip- through the hosepack - any remaining dirt or parting agent is removed. tion NOTE! Ensure that the gas nozzle does not touch the housing components of the cleaning opening at any time. - Page 51 Place the welding torch in the spray position see figure NOTE! During the spraying process, ensure that compressed air is not blown out through the welding torch. Spray welding torch with parting agent for approximately 0.7 seconds Move the welding torch to the start position above the cleaning opening - ap- proximately 50 mm (1.97 in.) centrally above the middle of the cleaning open- The cleaning operation is complete and the welding torch is ready for use again...
-
Page 52: Cleaning Program Sequence With Parting Agent Nebuliser
Cleaning pro- Start Set 1/Reset 1 gram sequence "Welding torch Blow compressed air through torch with parting cleaning" program Set 2/Reset 2 agent nebuliser "Start cleaning" signal Set 3/Reset 3 Move to position C "Spray parting agent" signal Move to position E Set 1 Wait 0.5 s Set 2... -
Page 53: Cleaning Program Sequence With Dipping Bowl
Cleaning pro- Set 1/Reset 1 Start gram sequence Blow compressed air through welding torch "Welding torch with dipping Set 2/Reset 2 cleaning" program bowl "Start cleaning" signal Set 3/Reset 3 Move to position A "Spray parting agent" signal Move to position B Wait 1 - 4 s = 10 cm/s (236.22 ipm) -
Page 54: Cleaning Program Sequence - Robacta Tc 2000 Twin, Robacta Tc 2000 Twin Us
Cleaning program sequence - Robacta TC 2000 Twin, Robacta TC 2000 Twin US Program se- Weld quence with Clean gas nozzle tip and nozzle fitting parting agent Spray parting agent nebuliser - over- Weld view Program se- Weld quence with... -
Page 55: Cleaning The Gas Nozzle Tip And Nozzle Fitting - Detailed Description
Cleaning the gas NOTE! nozzle tip and nozzle fitting - During the cleaning operation, blow out the welding torch with compressed air detailed descrip- through the hosepack - any remaining dirt or parting agent is removed. tion NOTE! Ensure that the gas nozzle does not touch the housing components of the cleaning opening at any time. -
Page 56: Cleaning Program Sequence With Parting Agent Nebuliser
Ensure that not too much parting agent has accumulated on the gas nozzle (no droplet formation). If this is the case: Reduce the spray time or After the cleaning operation, blow out the welding torch with com- pressed air using the hosepack Cleaning pro- Start Set 1/Reset 1... -
Page 57: Cleaning Program Sequence With Dipping Bowl
Cleaning pro- Set 1/Reset 1 Start gram sequence Blow compressed air through welding torch "Welding torch with dipping Set 2/Reset 2 cleaning" program bowl "Start cleaning" signal Set 3/Reset 3 Move to position A "Spray parting agent" signal Move to position B Wait 1 - 4 s = 10 cm/s (236.22 ipm) -
Page 59: Troubleshooting, Maintenance And Disposal
Troubleshooting, maintenance and disposal... -
Page 61: Safety
This can result in serious personal injury and damage to property. ▶ All the work and functions described in this document must only be carried out by a trained Fronius service technician. ▶ Read and understand this document in full. - Page 62 WARNING! Danger from inadequate ground conductor connection. This can result in serious personal injury and damage to property. ▶ The housing screws provide a suitable ground conductor connection for earthing the housing and must NOT be replaced by any other screws which do not provide a reliable ground conductor connection.
-
Page 63: Troubleshooting
Troubleshooting Troubleshooting Make a note of the serial number and configuration of the device and contact our After-Sales Service team with a detailed description of the error, if errors occur that are not listed below the troubleshooting measures listed are unsuccessful Mains voltage indicator not lit Mains cable connected Cause:... - Page 64 Fill level indicator lit A dipping bowl is not available or is not being used Cause: A parting agent nebuliser is being used Remedy: Not necessary Fill level indicator not lit The liquid in the dipping bowl is already below the optimum fill level Cause: Fill-level sensor faulty Remedy:...
- Page 65 Error is sent to the robot. Overtemperature and fill level indicators flash at the same time, no cleaning takes place Cause: Quick Stop is active (HI - Quick Stop = LO / LO - Quick Stop =HI) Remedy: Deactivate Quick Stop (HI - Quick Stop = HI / LO - Quick Stop =LO) Cause: Fault in the cleaning device Remedy:...
-
Page 66: Care, Maintenance And Disposal
Care, maintenance and disposal Before each Check the fill level in the "Robacta Reamer" parting agent container and the start-up dipping bowl, top up if necessary NOTE! The "Robacta TC Cool / Robacta TC Cool MD" and "Robacta Reamer" parting agents differ in their composition. -
Page 67: Every 6 Months
Every 12 months Arrange for a safety inspection to be carried out on the cleaning device by a Fronius service engineer Disposal Dispose of in accordance with the applicable national and local regulations. -
Page 69: Technical Data
Technical data... -
Page 71: Technical Data
Technical data General CAUTION! Danger due to insufficiently dimensioned electrical installations. This can result in severe damage to property. ▶ Dimension the mains lead and its fuse to suit the device being used. The technical data shown on the rating plate applies. Robacta TC Mains voltage 230 V... - Page 72 Dimensions l/w/h 330 / 250 / 422 mm 12.99 / 9.84 / 16.61 Weight (without "Robacta TC Cool / Robacta TC Cool 24.4 kg MD" parting agent) 53.79 lb. EMC emission class Mark of conformity CE, CSA...
