Installing the
Twin Clamping
System
50
1
2
2
4
4
3
3

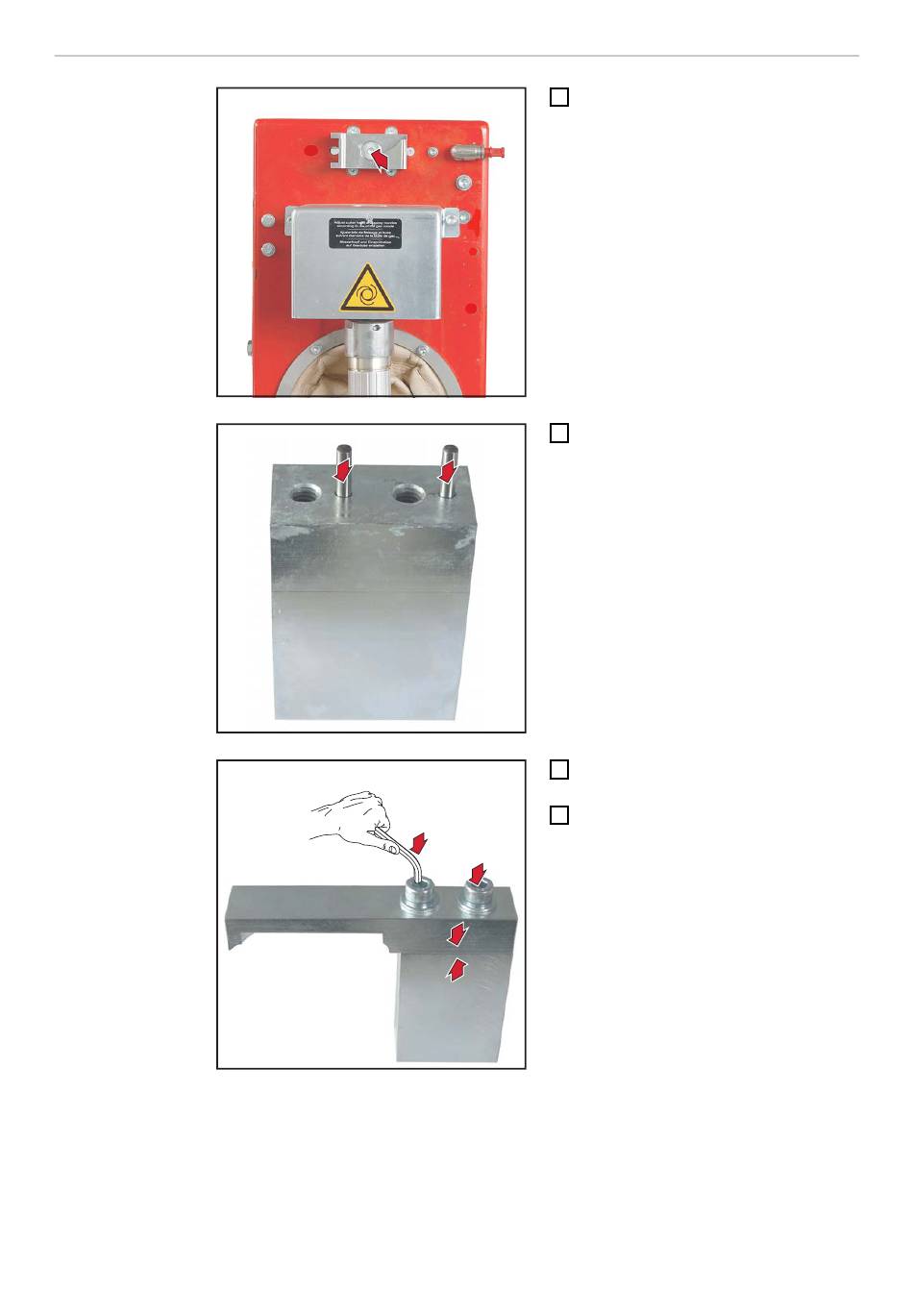

Secure the clamping device element
1
with M8 x 25 mm countersunk Allen
screw
size 5 mm
Insert two 3 x 12 mm dowel pins
2
Connect the clamping device ele-
3
ments together
Screw the clamping device elements
4
together with two washers and two M6
x 25 mm Allen screws
size 5 mm
