Fronius Robacta TSS /i Operating Instructions Manual page 41

2 x TX20
7
6
7
8
2x TX20
1 0
1 0

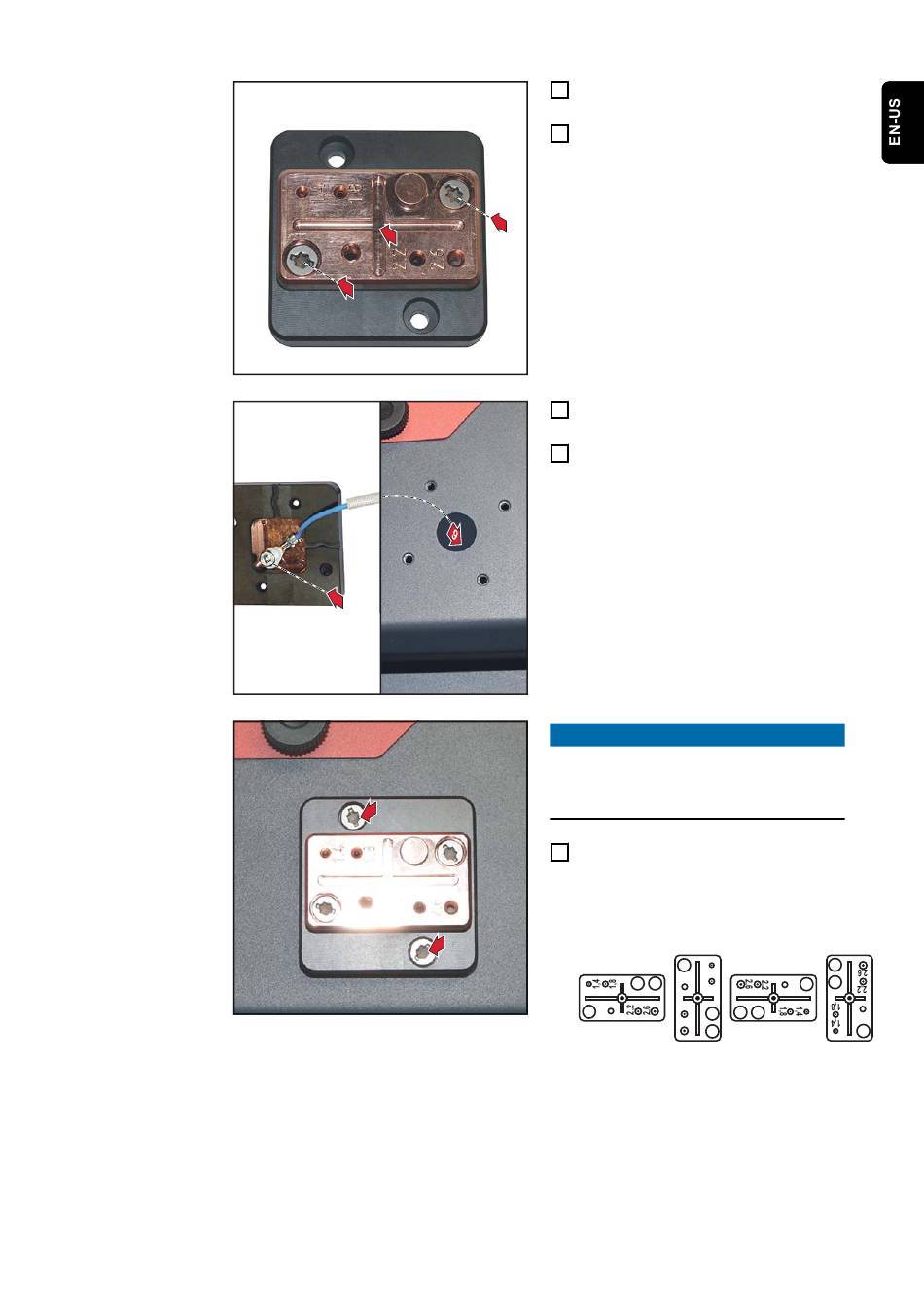

Position the Touch Sense on the
6
plastic support
Secure the Touch Sense with 2 TX20
7
screws
Secure the cable to the bottom of the
8
Touch Sense with a 3 mm Allen screw
Insert the cable into the knocked-out
9
opening
NOTE!
When installing the Touch Sense, do
not pinch, kink, shear off, or otherwise
damage the cable!
Install the Touch Sense on the service
10
station with 2 TX20 screws
The Touch Sense can be installed in
all 90° positions.
1,4
1,8
2,2
2,6
41
