- Page 1 / Perfect Charging / Perfect Welding / Solar Energy Operating instructions RC Panel Pro 42,0426,0282,EA 003-22112021 Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).
- Page 3 General Safety WARNING! Incorrect operation and incorrectly performed work can cause serious injury and damage to property. All work listed in this document may only be performed by trained specialist personnel. All functions described in this document may only be used by trained specialist person- nel.
- Page 4 Dimensions (l x w x h) 260 x 220 x 60 mm 10.24 x 8.66 x 2.36 in. Notes on Radio The device is equipped with a wireless module. Certification Wireless modules in the USA require FCC certification: This device complies with Section 15 of the FCC Rules. Operation is subject to the fol- lowing conditions: (1) This device may not cause interference;...

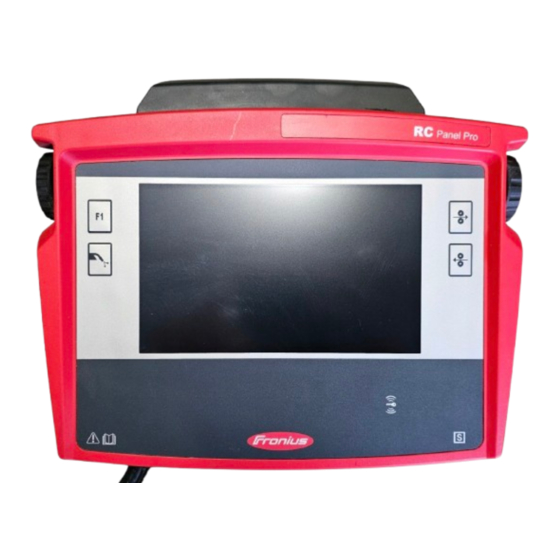

- Page 5 Controls, connections and indicators Keys and Sym- bols Control dial with rotary/push button function For selecting elements, setting values and scrolling through lists Special function button For selecting special functions depending on configuration Gas-test button For setting the required amount of gas on the gas pressure regulator. After pressing the gas-test button, gas is emitted for 30 seconds.
- Page 6 Pivoting mounting and positioning bracket USB port For connecting USB flash drives (service dongle, license key, etc.)
- Page 7 Installation and Startup Mount Remote CAUTION! Control on a Handle Tube Danger of injury and damage to property due to falling remote control. Always secure the remote control against falling. Connect Remote Control to Sys- tem Components...
- Page 8 SPAREPARTS ONLINE Fronius International GmbH Froniusstraße 1 4643 Pettenbach Austria contact@fronius.com www.fronius.com Under www.fronius.com/contact you will find the adresses of all Fronius Sales & Service Partners and locations.
