Hardware layout and configuration

The STM32H743I-EVAL Evaluation board is designed around the STM32H743XIH6
(240+25-pin TFBGA package) microcontroller. The hardware block diagram (see
illustrates the connection between STM32H743XIH6 and the peripherals (SDRAM, SRAM,
NOR Flash, Twin Quad-SPI Flash, color LCD, USB OTG connectors, USART, Ethernet,
Audio, FD-CAN, microSD 3.0 card and embedded ST-LINK).
these features on the Evaluation board. The mechanical dimensions of the board are
showed in Figure 4.

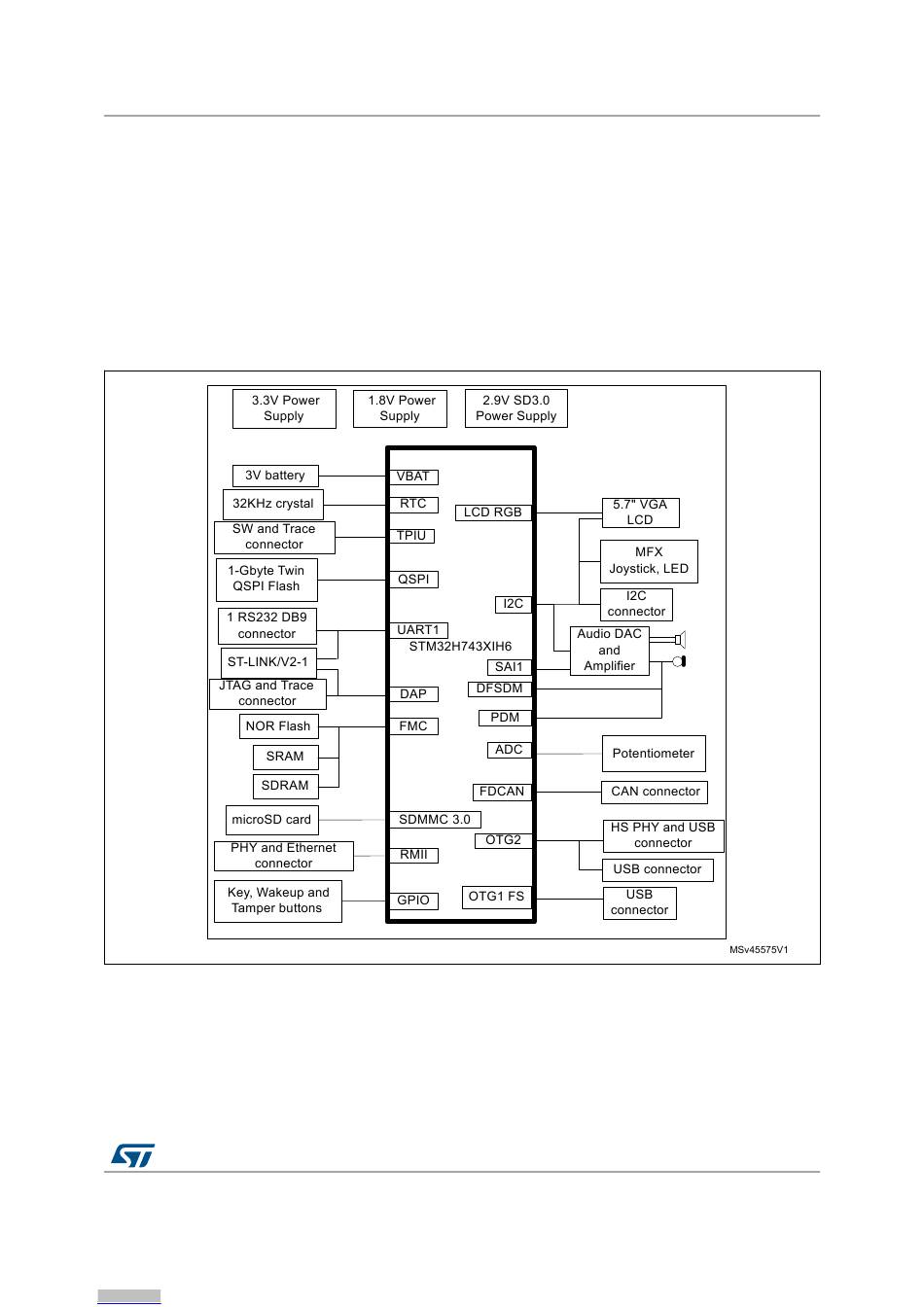

Figure 2. Hardware block diagram

Hardware layout and configuration
DocID030511 Rev 1
Figure
Figure 3 helps users to locate
2)
