UM2648
User manual
Evaluation board with increased-frequency 800 MHz STM32MP157 MPU
Introduction
The
STM32MP157F-EV1
Evaluation board is designed as a complete demonstration and development platform for
‑A7 32 bits and Cortex
‑M4 32 bits MPUs in the STM32MP1 Series. It leverages
®
®
®
STMicroelectronics Arm
-based dual Cortex
the capabilities of increased-frequency 800 MHz STM32MP1 Series microprocessors for the user to develop applications, using
STM32 MPU OpenSTLinux Distribution software for the main processor, and
STM32CubeMP1
software for the co-processor. It
includes an ST-LINK embedded debug tool, LEDs, push-buttons, one joystick, 1-Gbps Ethernet, CAN FD, one USB OTG Micro-
AB connector, four USB Host Type-A connectors, LCD display with touch panel, camera, stereo headset jack with analog
microphone input, four digital microphones, one SPDIF Rx/Tx, smartcard, microSD
card, and eMMC, NOR and NAND Flash
memories.
STM32MP157F-EV1, shown in
Figure 1
and
Figure
2, is used as the reference design for user application development,
although it is not considered as final application.
To expand the functionality of the
STM32MP157F-EV1
Evaluation board, two GPIO expansion connectors are also available for
®
motor control and Raspberry Pi
shields.
An ST-LINK/V2-1 is integrated on the board, as embedded in-circuit debugger and programmer for the STM32 MPU and the
USB Virtual COM port bridge.

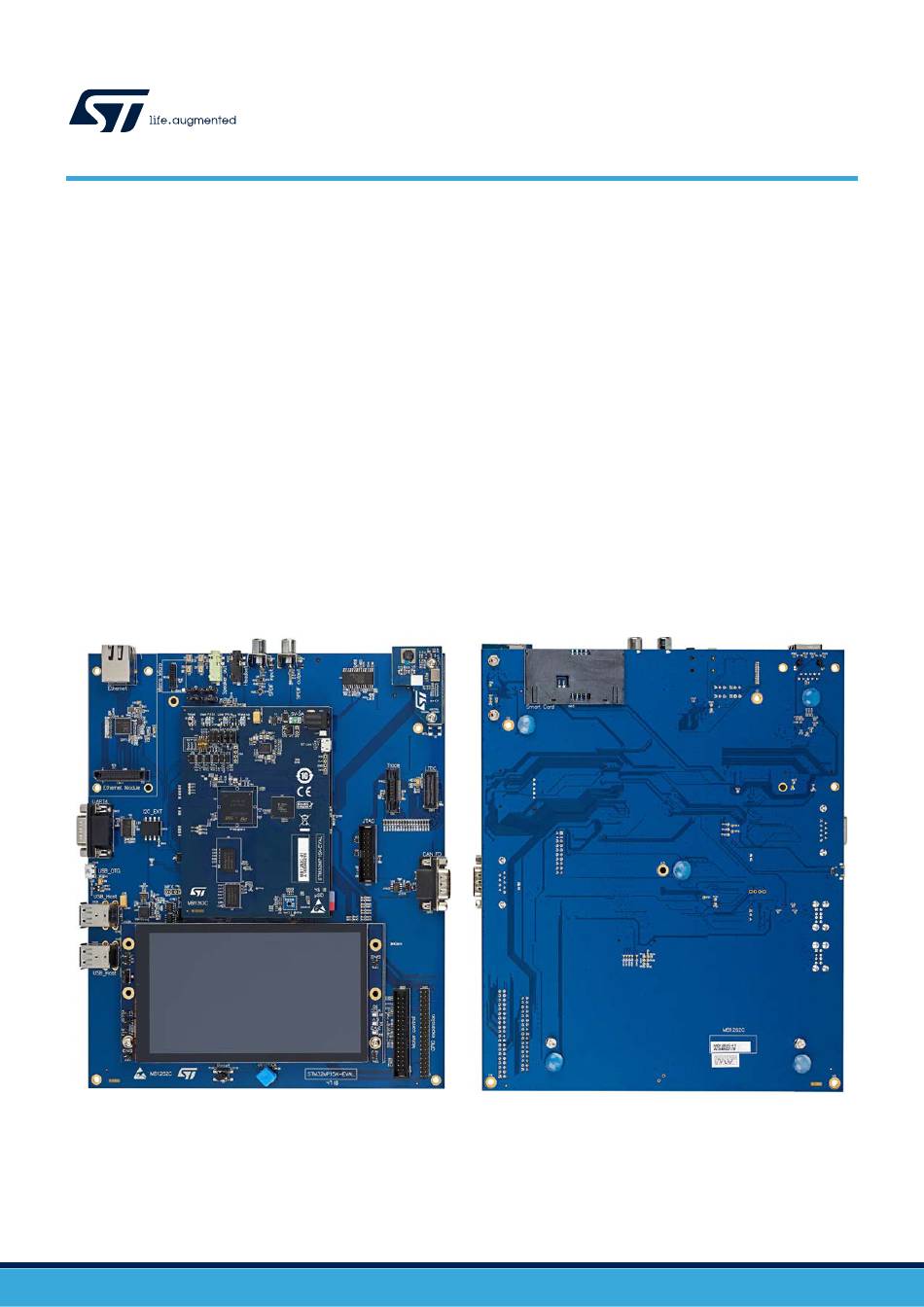

Figure 1.

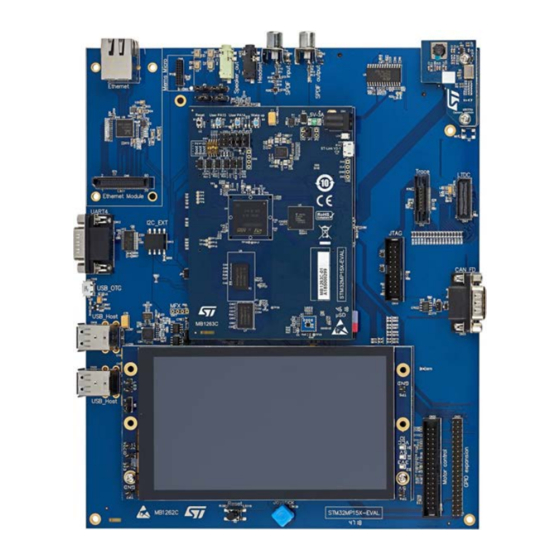

STM32MP157F-EV1 top view
Figure 2.
STM32MP157F-EV1 bottom view
Pictures are not contractual.
UM2648 - Rev 1 - June 2020
www.st.com
For further information contact your local STMicroelectronics sales office.
