STM32H743I-EVAL Evaluation board mechanical drawing

Figure 4 and Table 2 show the mechanical dimensions for the MB1246 board with the 5.7"
LCD daughterboard.

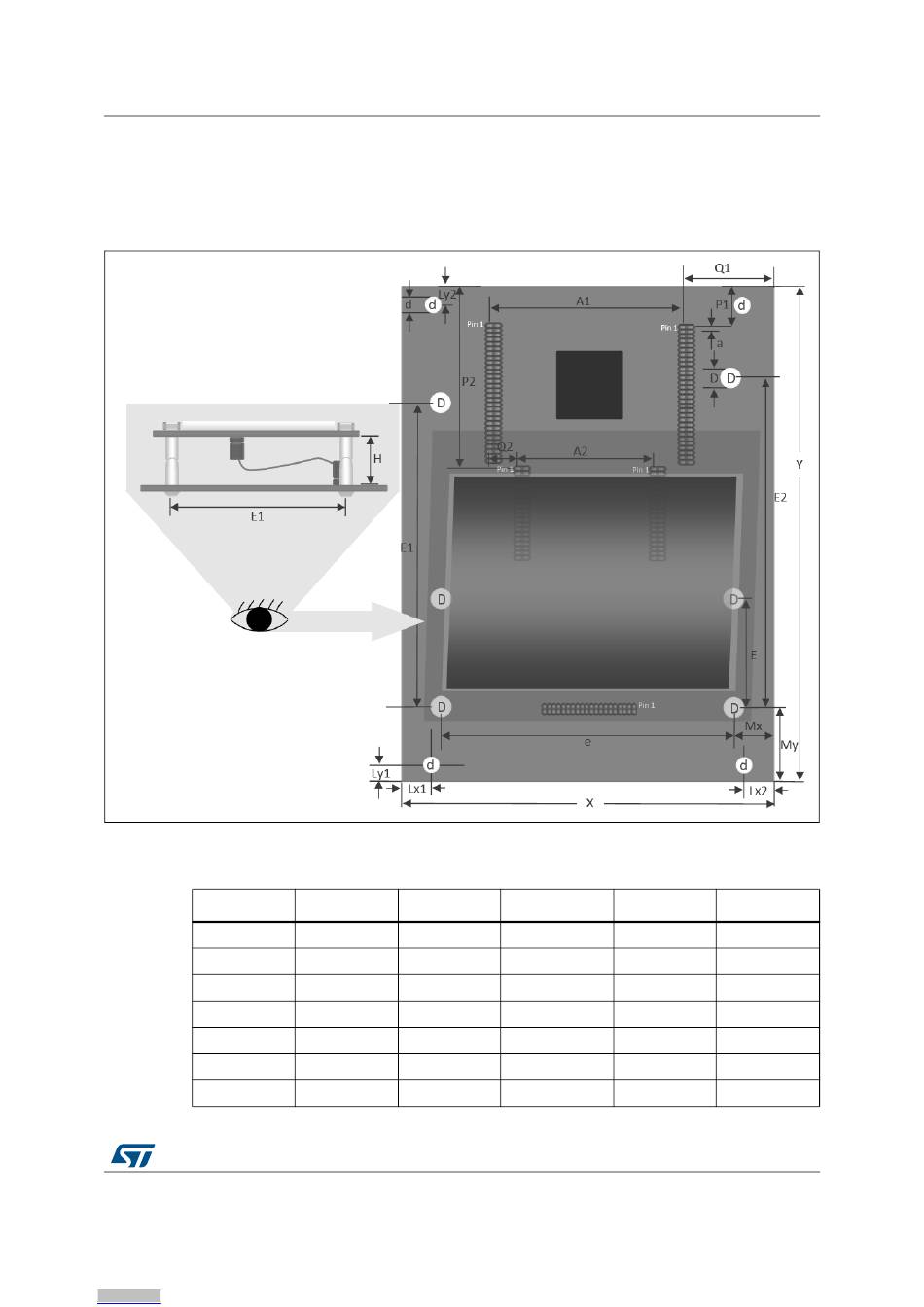

Figure 4. STM32H743I-EVAL Evaluation board mechanical drawing

Symbol Size (mm)
A1 68.58
A2 48.62
a 1.27
D 4.5
d 3.5
E1 107
E2 114.18

Table 2. Mechanical dimensions

Symbol Size (mm)
e 116.5
H 8
Lx1 13.7
Lx2 25
Ly1 5
Ly2 6.4
Mx 12.5
DocID030511 Rev 1
Hardware layout and configuration
Symbol Size (mm)
My
P1
P2
Q1
Q2
X
Y
32.7
16.76
55.32
39.23
9.98
141.60
172.72
