Digital outputs

The UMG511 has 5 digital outputs. These
outputs are galvanically separated from the
analysis electronics using optocouplers. The
digital outputs have a joint reference.
• The digital outputs can switch AC and DC
loads.
• The digital outputs are not short-circuit
proof.
• Connected cables that are longer than 30m
must be shielded when laid.
38
Installation

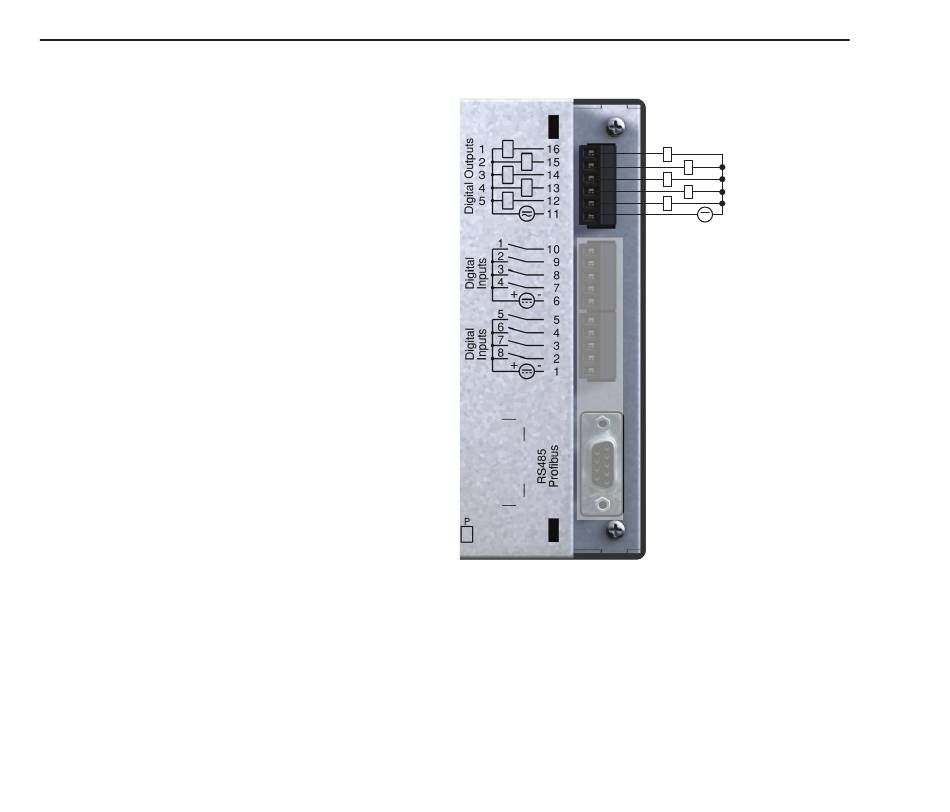

Fig. connection of digital outputs
~
