Main measurement, inputs 1-3

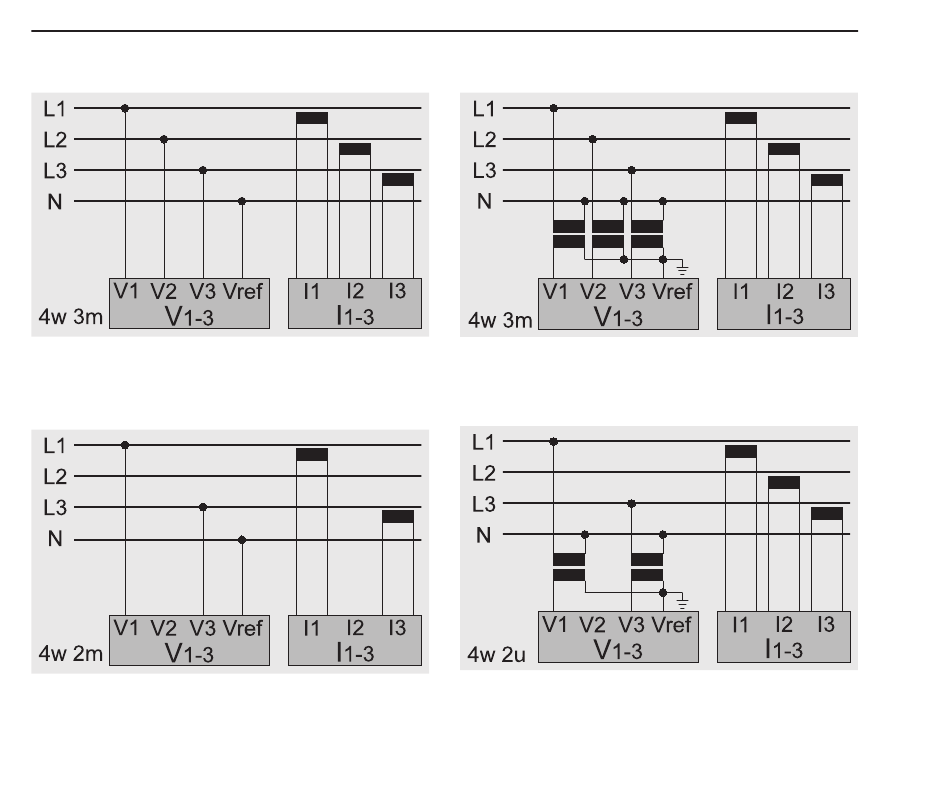

Fig. measurement in a three-phase 4 conduc-

tor network with asymmetrical load.

Fig. measurement using a three-phase 4 con-

ductor network with symmetrical load.

Installation

Fig. measurement using 3 voltage converters

in a three-phase 4 conductor network with

asymmetrical load.

Fig. measurement using 2 voltage converters

in a three-phase 4 conductor network with

asymmetrical load.
