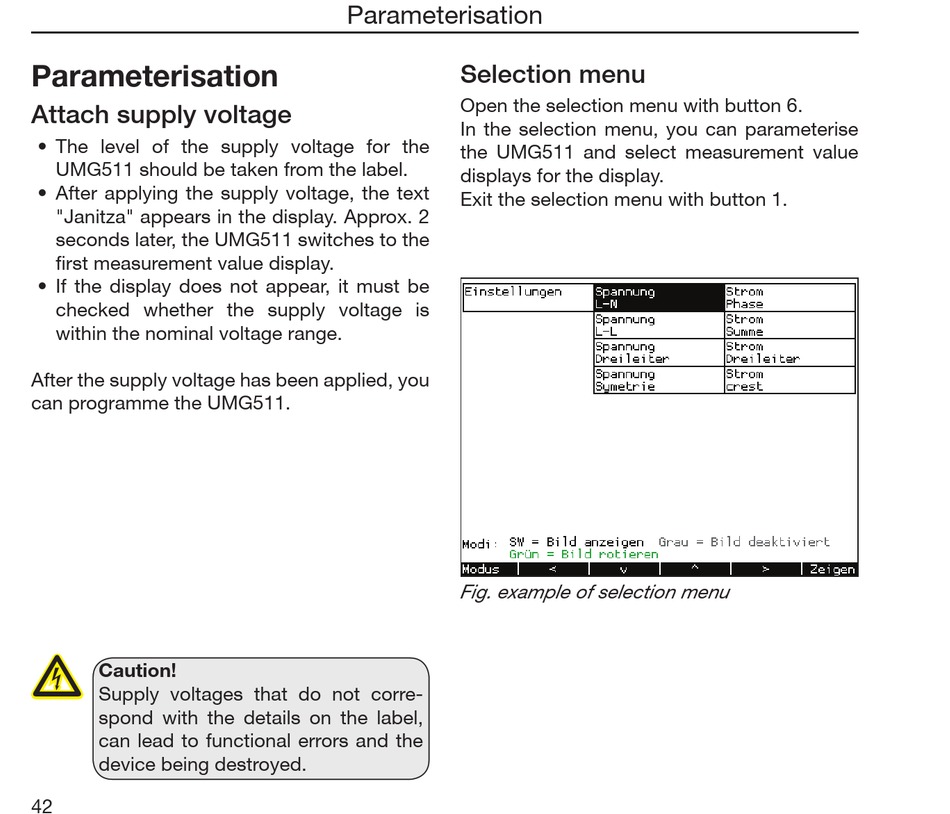

Parameterisation

Attach supply voltage
• The level of the supply voltage for the
UMG511 should be taken from the label.
• After applying the supply voltage, the text
"Janitza" appears in the display. Approx. 2
seconds later, the UMG511 switches to the
first measurement value display.
• If the display does not appear, it must be
checked whether the supply voltage is
within the nominal voltage range.
After the supply voltage has been applied, you
can programme the UMG511.
c
Caution!
Supply voltages that do not corre-
spond with the details on the label,
can lead to functional errors and the
device being destroyed.
42
Parameterisation
Selection menu
Open the selection menu with button 6.
In the selection menu, you can parameterise
the UMG511 and select measurement value
displays for the display.
Exit the selection menu with button 1.
Fig. example of selection menu
