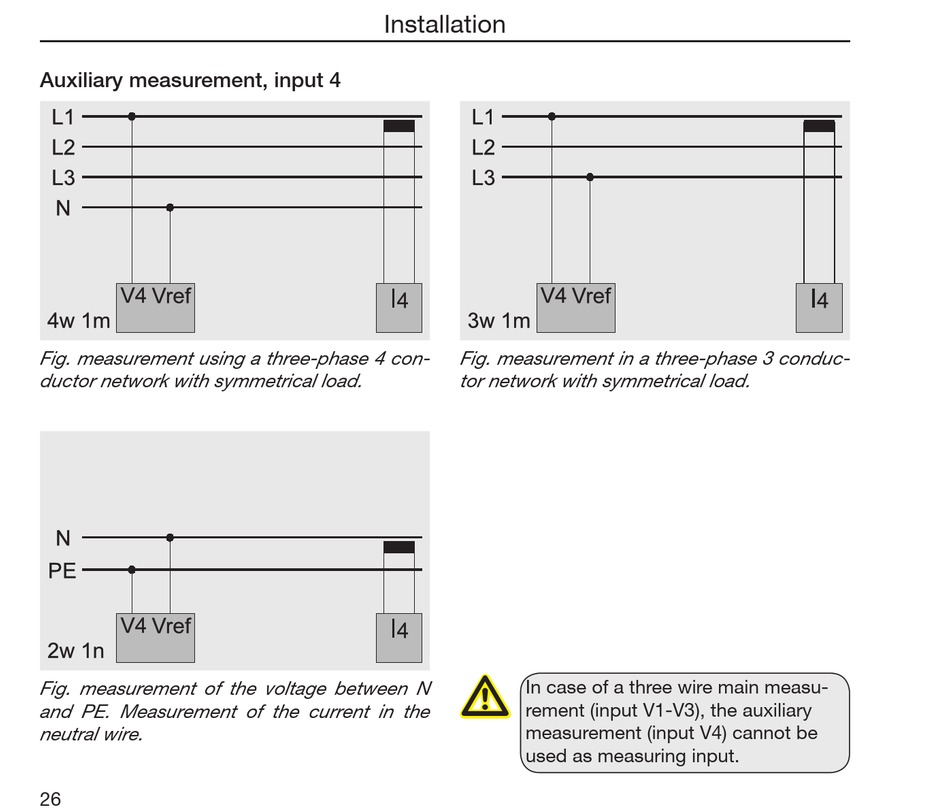

Auxiliary measurement, input 4

Fig. measurement using a three-phase 4 con-

ductor network with symmetrical load.

Fig. measurement of the voltage between N

and PE. Measurement of the current in the

neutral wire.

Installation

Fig. measurement in a three-phase 3 conduc-

tor network with symmetrical load.

In case of a three wire main measu-

rement (input V1-V3), the auxiliary

measurement (input V4) cannot be

used as measuring input.
