Differential current measurement
If the current measurement is taken using
two current converters, the overall translation
ratio of the current converters must be pro-
grammed in the UMG511.

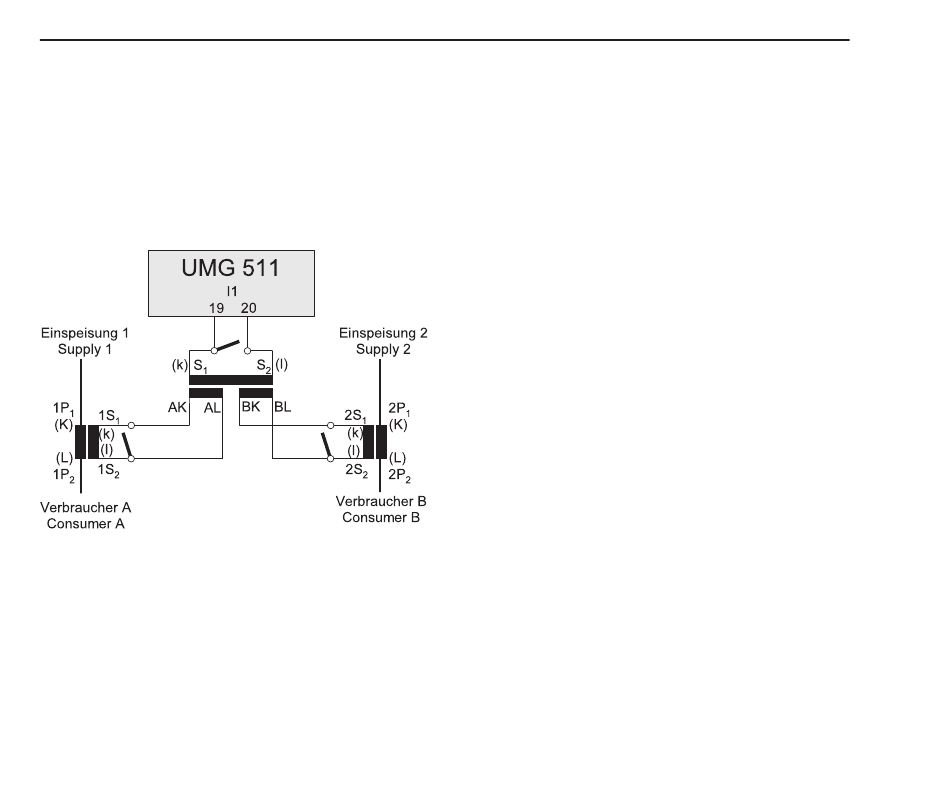

Fig. example of current measurement using a
differential current converter.
30
Installation
Example
The current measurement takes place using
two current converters. Both current convert-
ers have a translation ratio of 1000/5A. Differ-
ential measurement is carried out wth a differ-
ential current converter 5+5/5A.
The UMG511 must then be set as follows:
Primary current: 1000A + 1000A = 2000A
Secondary current:
5A
