janitza UMG511 Installation And Commissioning Manual page 25

Power quality analyser

Hide thumbs Also See for UMG511:

Table of Contents

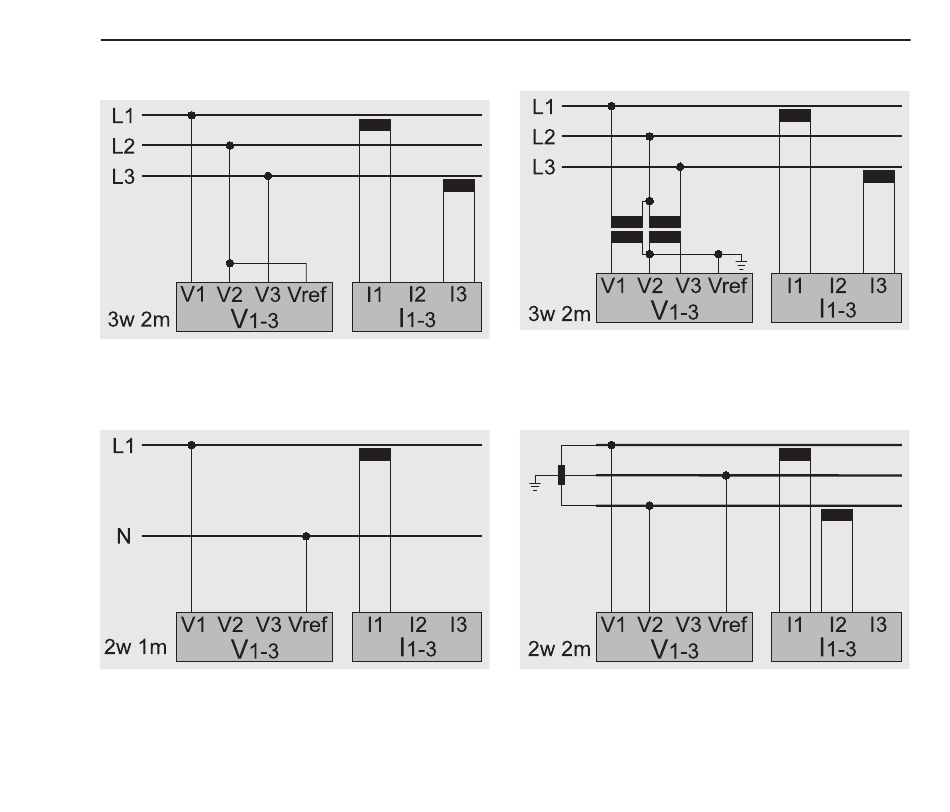

Fig. measurement in a three-phase 3 conduc-

tor network with asymmetrical load.

Fig. measurement of a phase in a three-phase

4 conductor network.

Installation

Fig. measurement in a three-phase 3 conduc-

tor network with asymmetrical load.

Fig. measurement in a single-phase 3 conduc-

tor network. I3 and U3 are not calculated and

set to zero.
