Ccw Configuration Tab - Spectrum Controls Micro800 User Manual

Chapter 3: Configuring the 2085-IF4XOF4-SC Using CCW
Using the Module Profile Tool to import the 2085-IF4XOF4-SC AOP into
NOTE
CCW software is necessary only if you are using a CCW version earlier
than 11.00.00. For information on manually importing an AOP file, see

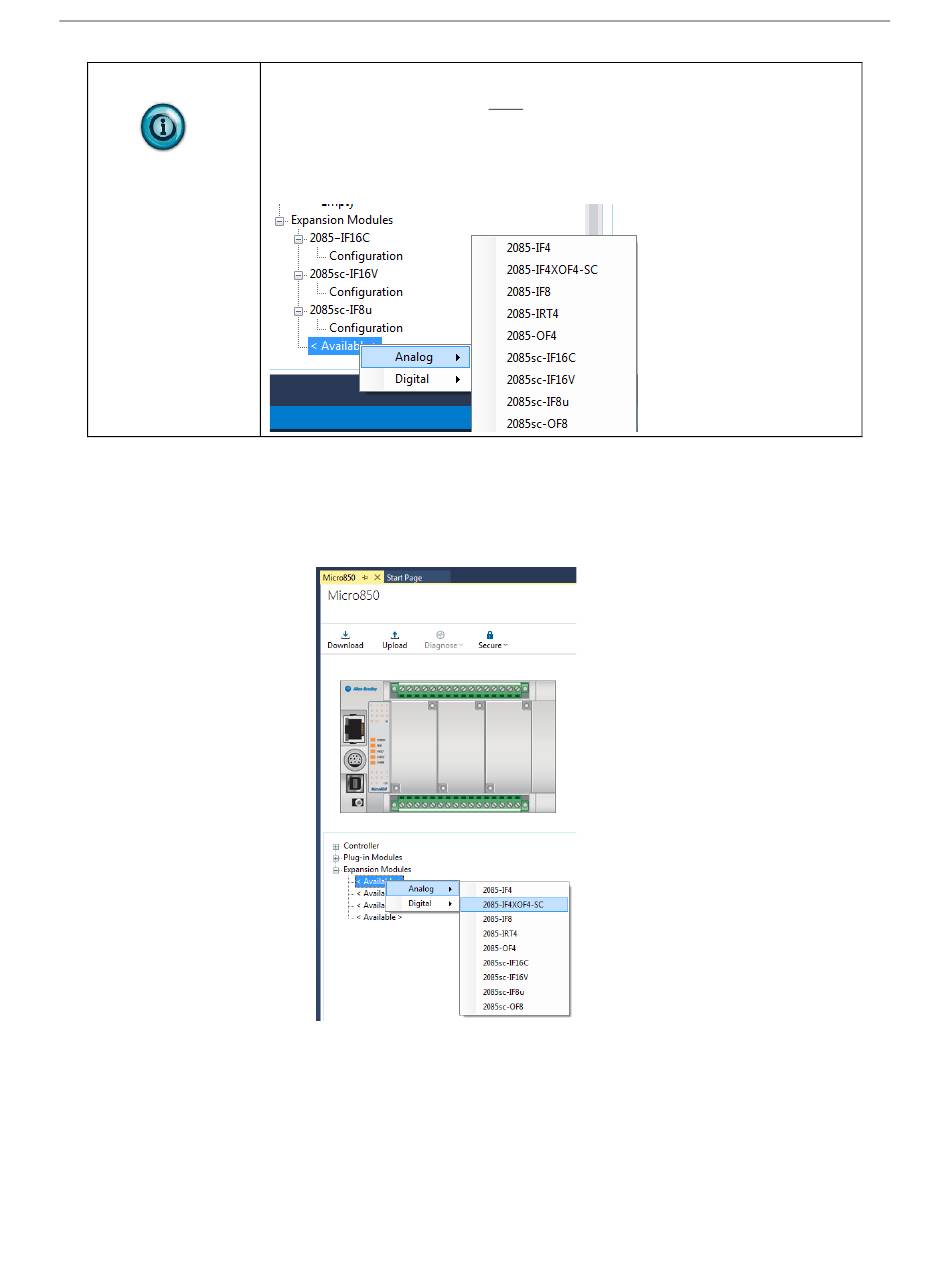

Appendix A. For Version 11.00.00 and later, the module is already
available as a selection from the CCW Expansion Modules drop-down
menu:
To add the module to your project, and see its configuration parameters on the

CCW configuration tab:

1. From your CCW project, load the module AOP to a first Available slot
from the Expansion Modules drop-down list.
2. Once the module AOP is loaded, to view the associated variables, click
the Module Catalog Name option.
User's Manual Pub. 0300307-01 Rev. A
3-5
