Chapter 3: Configuring the 2085-IF4XOF4-SC Using CCW

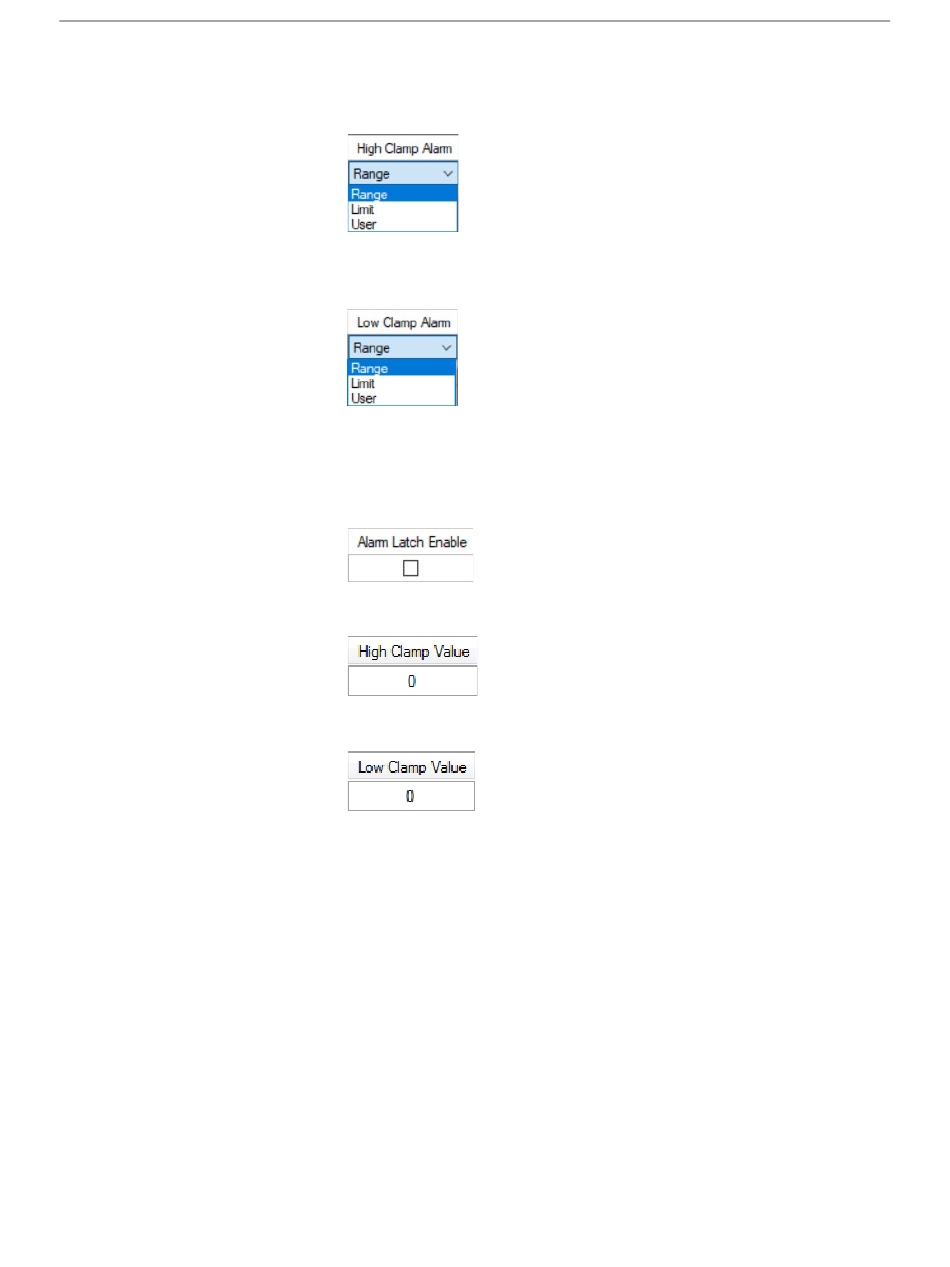

• High Clamp Alarm. Specifies whether to clamp the maximum
output as defined by Range, Limit, or User setting. Default is
Range:
• Low Clamp Alarm. Specifies whether to clamp the minimum
output as defined by Range, Limit, or User setting. Default is
Range:
Alarm Latch Enable. If the checkbox is enabled, the channel Over
•
Range, Under Range, or Load Error bit in Output Channel Status
(AI_02:01) will remain set even after the channel output is normal.
To clear the bits, you must set the channel Unlatch Alarm Bits
(AO_04) to clear the bits:
• High Clamp Value. Specifies high value at which output is clamped
if the channel High Clamp Alarm is set to User option:
• Low Clamp Value. Specifies low value at which output is clamped
if the channel Low Clamp Alarm is set to User option:
7. When finished making selections, click Generate.
The Configuration Text dialog appears with your configuration settings
for all the channels.
