2-8 Chapter 2: Installation and Wiring
RTB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
User's Manual Pub. 0300307-01 Rev. A

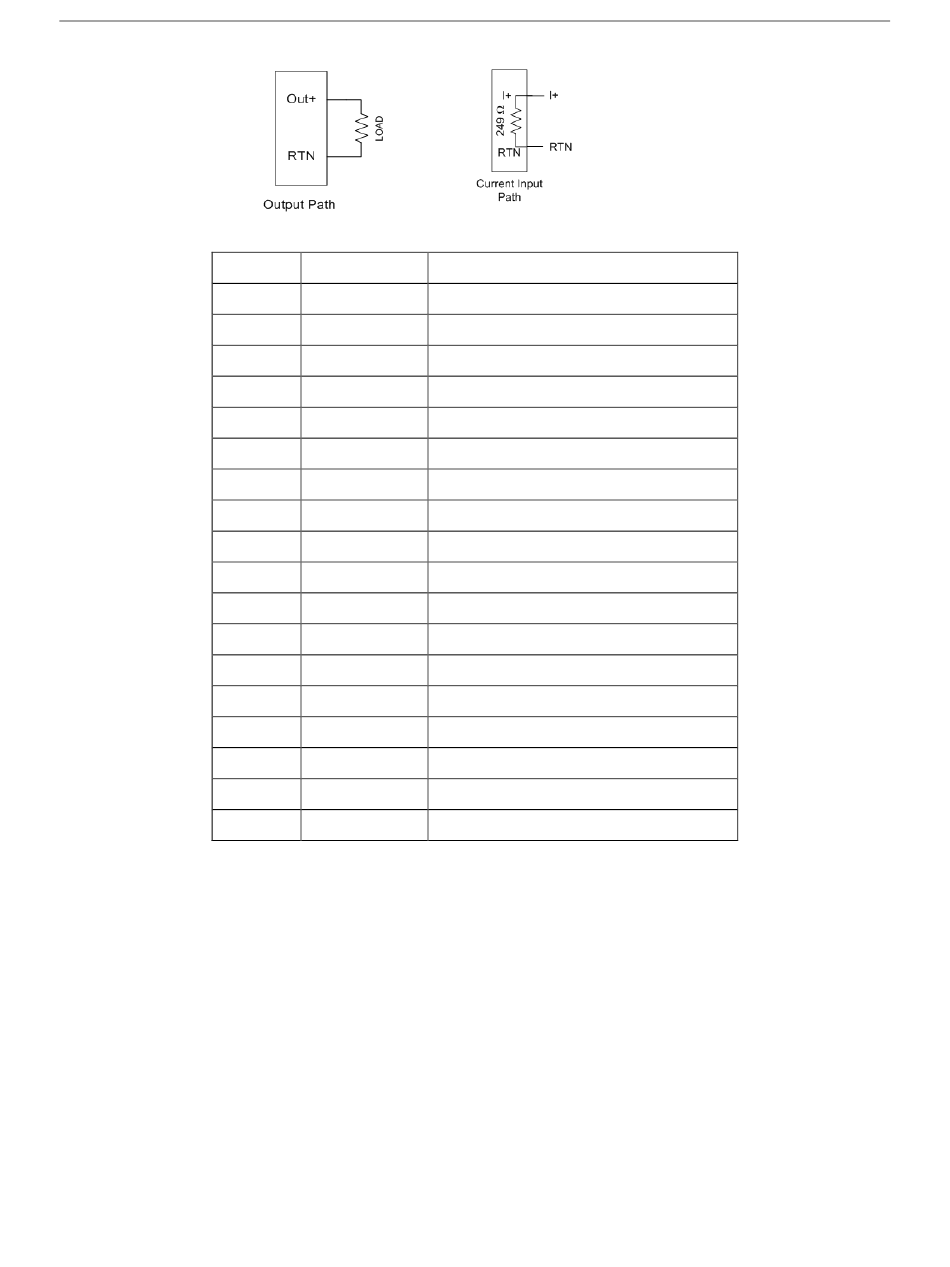

Terminal Block signal descriptions are as follows:
Name
OUT+0
RTN0
OUT+1
RTN1
OUT+2
RTN2
OUT+3
RTN3
NC
NC
IN+4
RTN4
IN+5
RTN5
IN+6
RTN6
IN+7
RTN7
Description
Channel 0 voltage or current output
Channel 0 return
Channel 1 voltage or current output
Channel 1 return
Channel 2 voltage or current output
Channel 2 return
Channel 3 voltage or current output
Channel 3 return
No connection
No connection
Channel 4 voltage or current input
Channel 4 return
Channel 5 voltage or current input
Channel 5 return
Channel 6 voltage or current input
Channel 6 return
Channel 7 voltage or current input
Channel 7 return
