Chapter 3: Configuring the 2085-IF4XOF4-SC Using CCW

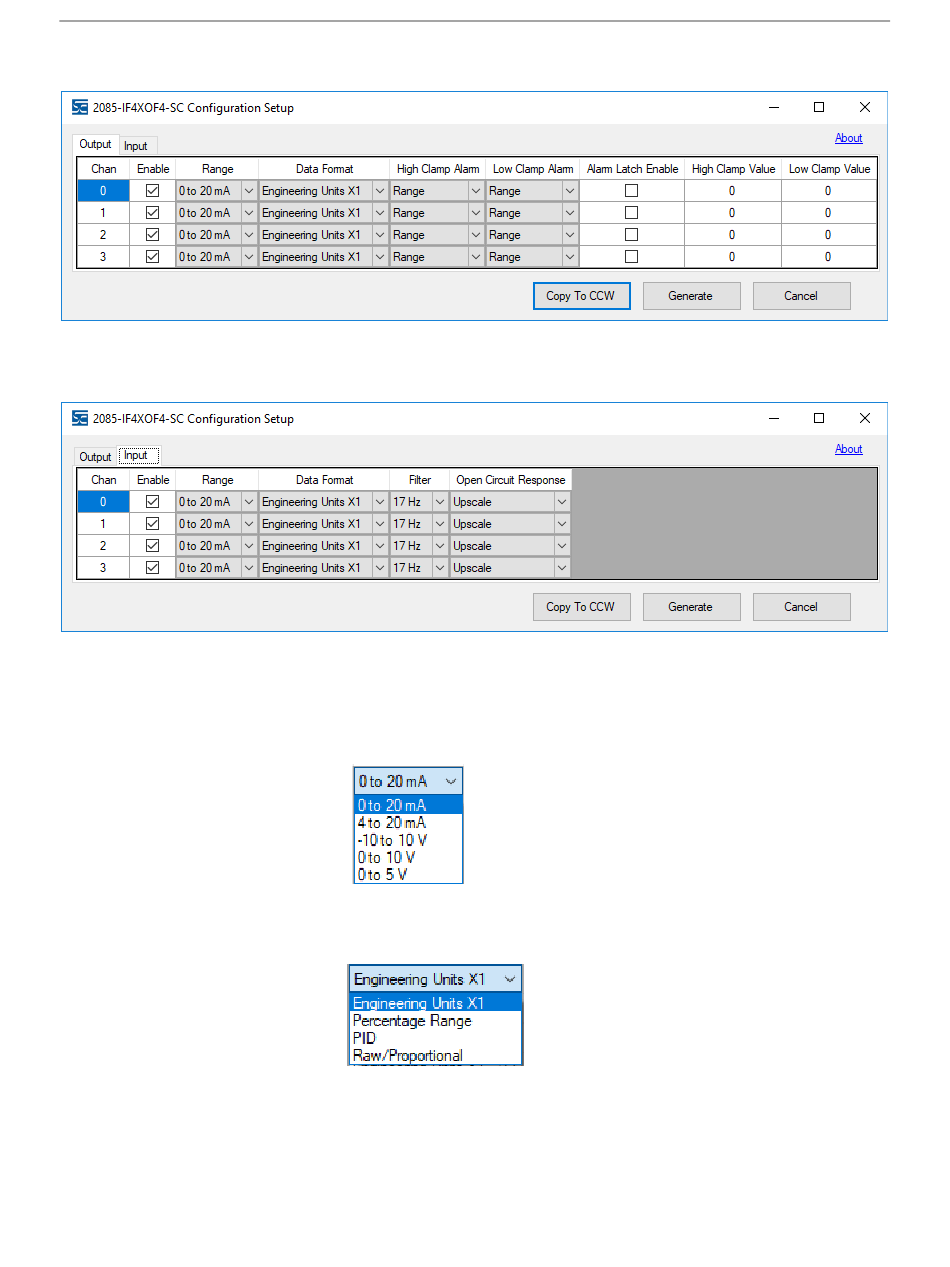

The 2085-IF4XOF4-SC Configuration Setup window appears:
5. Click the Input tab, and view and specify the following options as
needed. See Configuration Assembly for details on the settings for every
configuration bit:
Chan. Lists number of input channels from 0 to 3.
•
Enable. Specifies whether to disable use of this channel. Enabled by
•
default (checkbox enabled).
• Range. Specifies which Range type (voltage or current) to use.
Select type from drop-down list. Default is 0 to 20 mA:
Data Format. Specifies which data format to use for reporting input
•
values.
Default is Engineering Units X1:
