Hazard of damage to equipment.
WARNING
The Spectrum Controls RTB hold down and terminal screws must be
tightened by hand using the guidelines in Step 5. They must not be
tightened using a power tool.
Use a slot screwdriver of 0.8 × 2.0 mm and carefully tighten to no more
than 2.2 Lb-in torque (0.25 Nm).
Failure to follow these guidelines may result in damage to your connector.
To install:
1. Place the module next to the controller against the panel where you are
2. Mark drilling holes through the mounting screw holes and mounting feet,
3. Drill the holes at the markings.
4. Replace the module and mount it. Leave the protective debris strip in

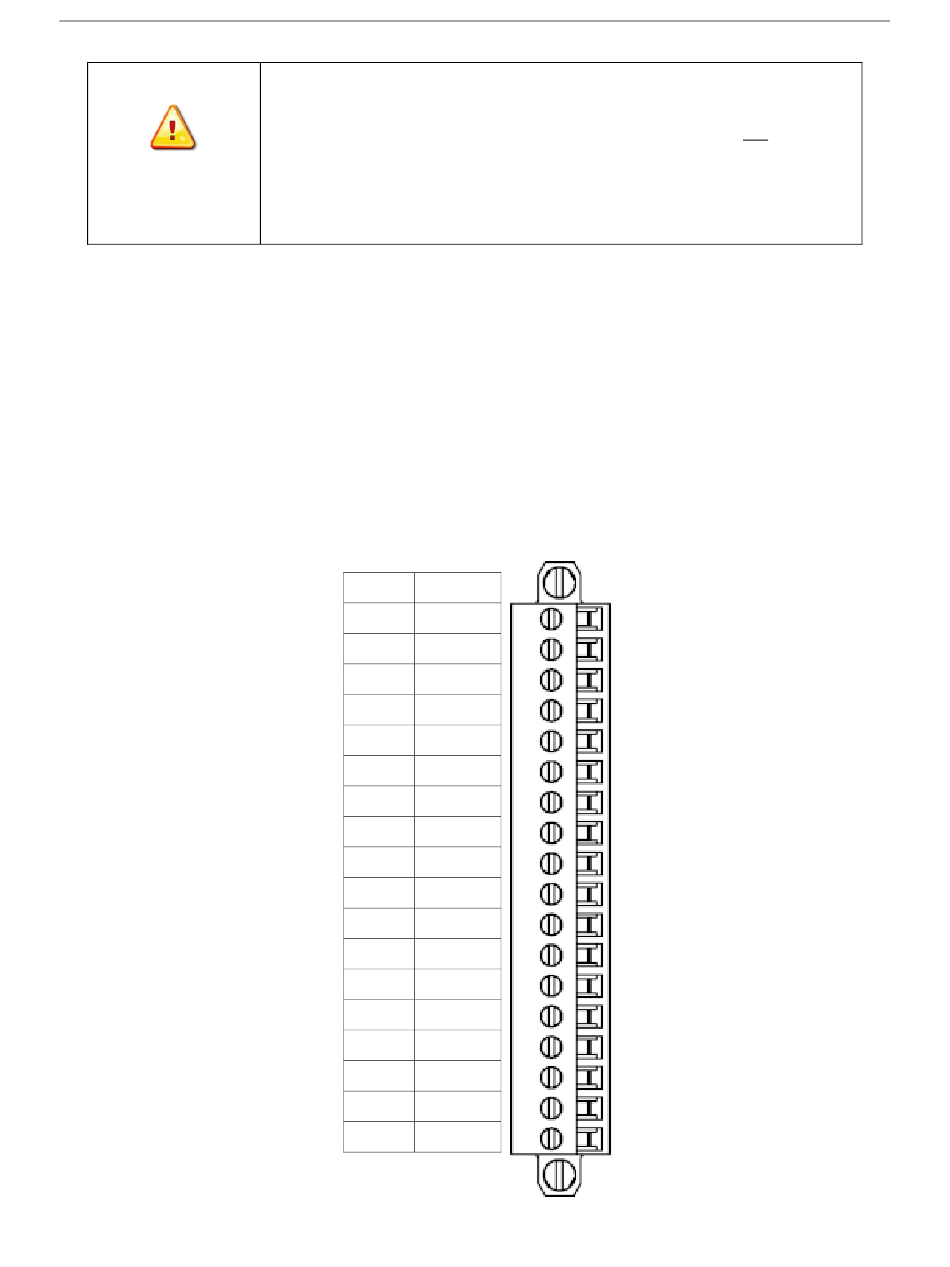

Wiring Diagram
Wire the module using the following table and image: OUT+3
mounting the module.
and then remove the module.
place until you are finished wiring the module, and any other devices.
RTB Name
1 OUT+0
2 RTN0
3 OUT+1
4 RTN1
5 OUT+2
6 RTN2
7 OUT+3
8 RTN3
9 NC
10 NC
11 IN+4
12 RTN4
13 IN+5
14 RTN5
15 IN+6
16 RTN6
17 IN+7
18 RTN7
Chapter 2: Installation and Wiring
User's Manual Pub. 0300307-01 Rev. A
2-7
