3-8
Chapter 3: Configuring the 2085-IF4XOF4-SC Using CCW
User's Manual Pub. 0300307-01 Rev. A
Example. C:\Program Files (x86)\Rockwell
Automation\CCW\SpectrumTool

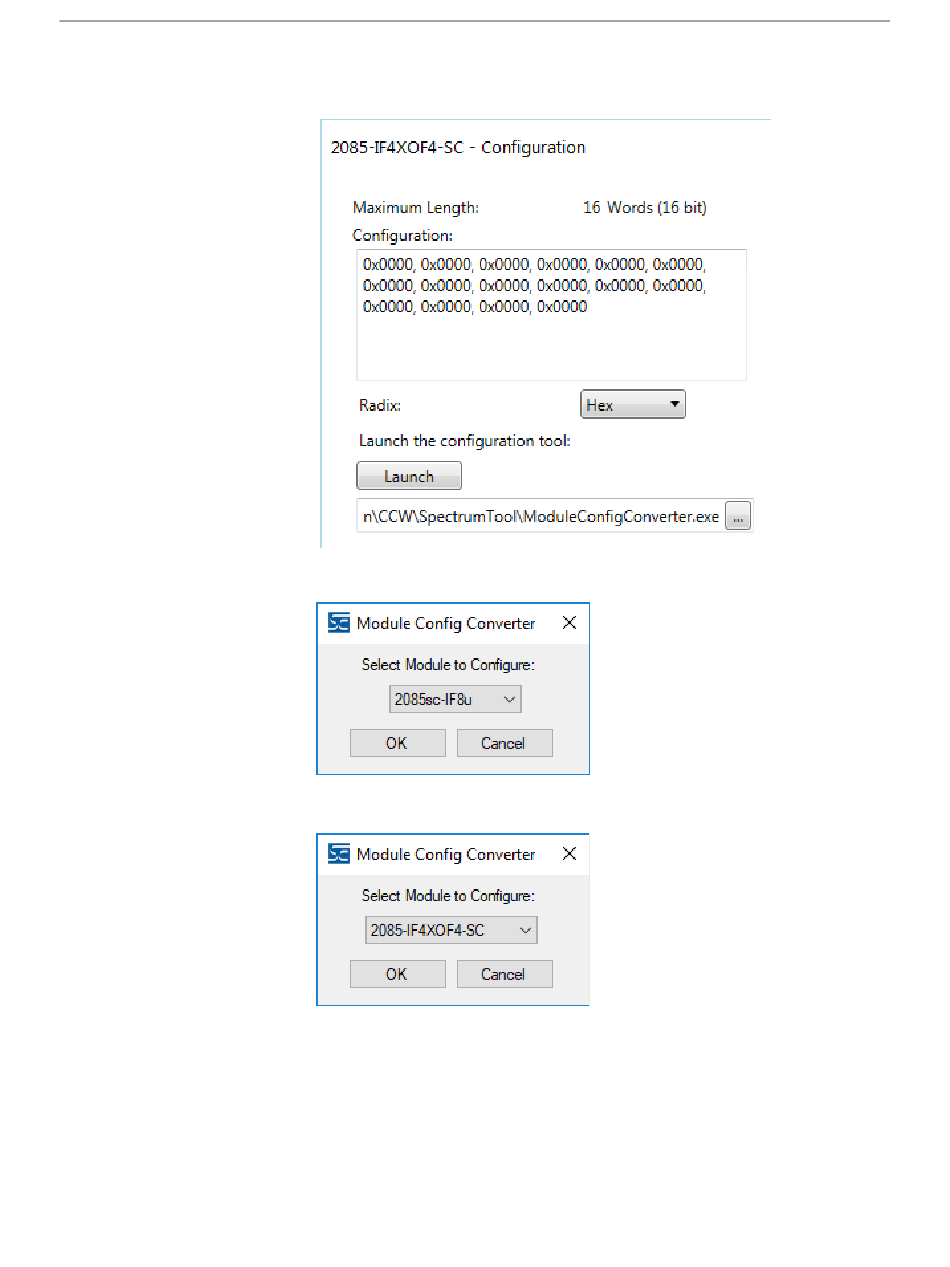

3. To run the tool, click Launch. The Module Config Converter dialog
appears:
4. Select the 2085-IF4XOF4-SC module from the drop-down menu, and
click OK:
