3-6 Chapter 3: Configuring the 2085-IF4XOF4-SC Using CCW
User's Manual Pub. 0300307-01 Rev. A
The same variables can also be found on the CCW Global Variables Tab:

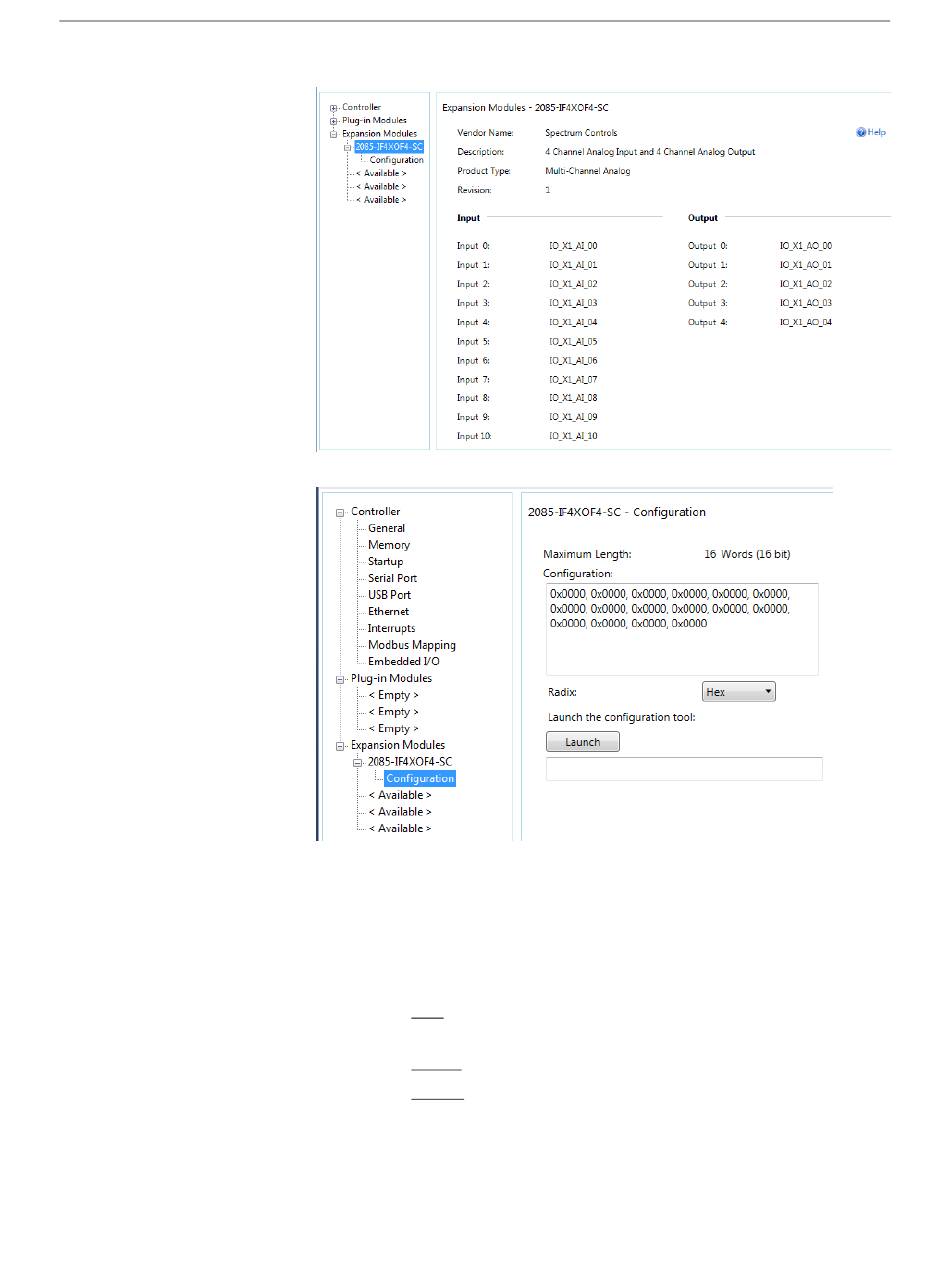

3. To view the configuration tab, click the Configuration option:
Maximum Length. Shows maximum number of words available.
•
Each word is 16-bit.
Configuration. The textbox lists out the whole module configuration
•
value.
Radix. The drop-down menu contains the following number formats
•
for indicating module configuration value. Options are:
- Hex. Default option. Characters represented as hexadecimal.
Example: 0×7FFF as 32767 in decimal format.
- ASCII: Characters represented as ASCII. Example: \7F\FF
-
Binary: Characters represented as 0 and 1. Example:
0111111111111111
