1-2
Chapter 1, Module Overview
General
Description
User's Manual Pub. 0300307-01 Rev. A

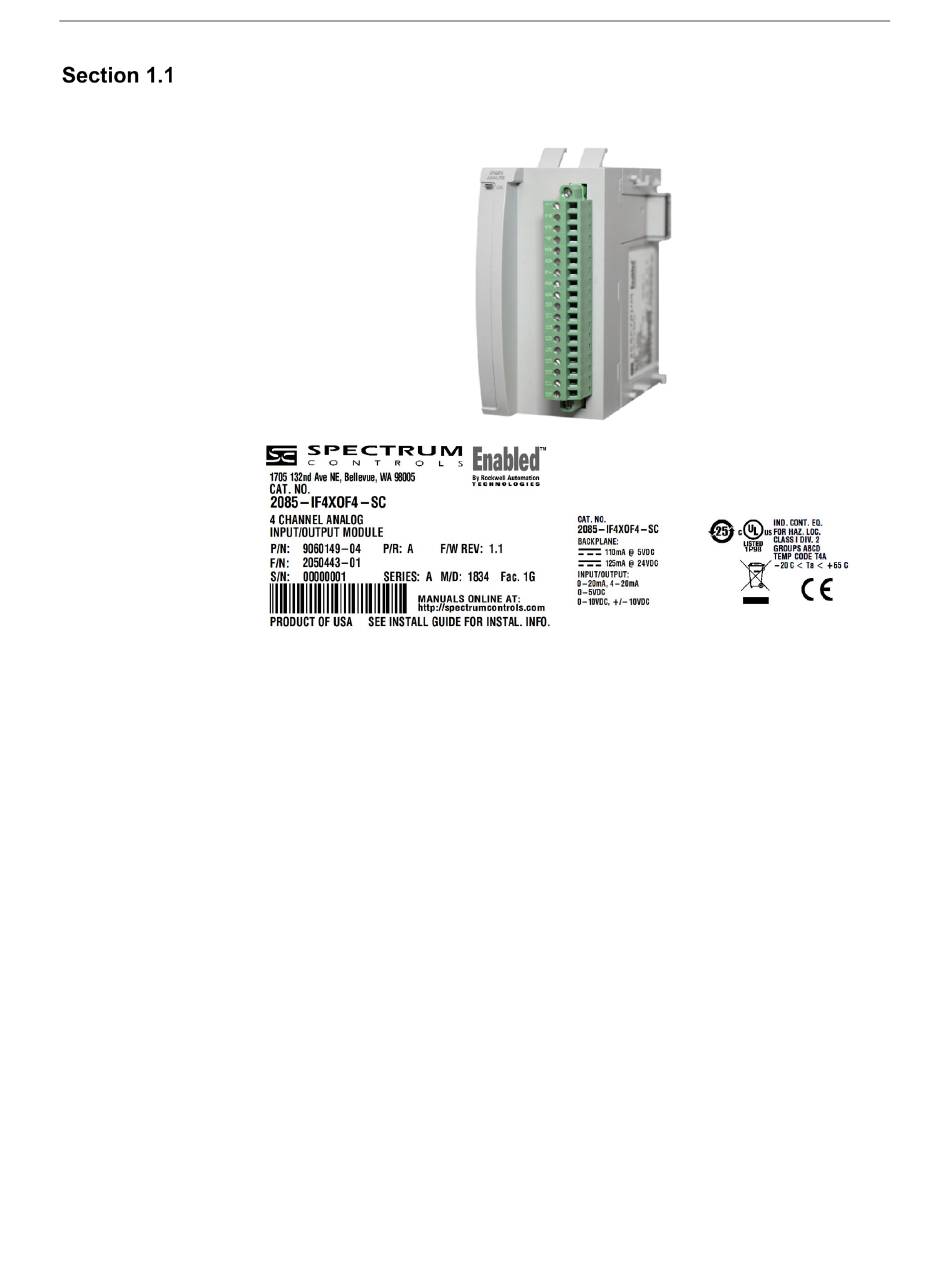

The 2085-IF4XOF4-SC Expansion I/O module measures up to 4 channels of
current and/or voltage inputs, and 4 channels of current and/or voltage outputs.
The module supports:
Four input channels:
-
The module measures either voltage or current input signal for each
channel.
-
Five input range types.
-
Four data formats.
-
Four filter frequency setup.
-
Over or under range detection.
-
Open wire detection except for 0 to 20 mA current range.
-
Option to disable open-wire detection for voltage measurement.
Four output channels:
-
Current or voltage output. When the module receives a new
command value from the output control variable, the module
converts the digital value to an analog current or voltage signal using
a DAC (Digital to Analog Converter).
-
Five output range types.
-
Four data formats.
-
Over and under range detection (from user-defined values).
