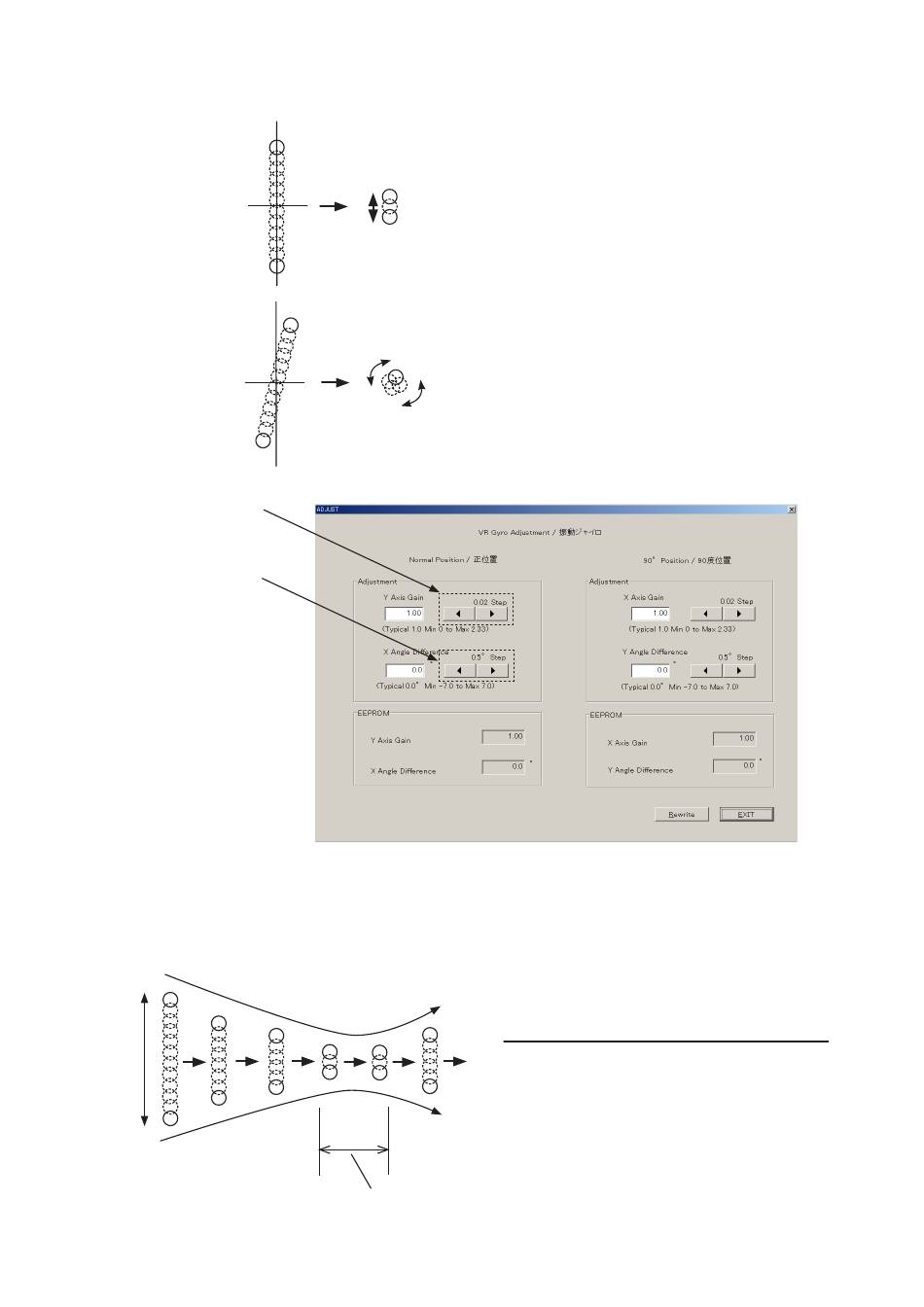

・Angle Difference Adjustment
Buttons for [Gyro
Gain] Adjustment
Buttons for [Angle
Difference] Adjustment
・Gyro Gain Adjustment
Adjust the vibration width by the button for Gyro Gain Adjustment so that the length of the vibration width
becomes be less than 1/5 of the measured laser vibration width a.
α
If there is angle difference, the laser beam source
becomes be whether if it rotates round even performing
the Gyro Gain Adjustment.
If it is possible to confirm the angle difference, adjust it
by the buttons for the angle difference adjustment.
Notes：After operating the adjustment button, wait for
a few seconds until a vibration motion is stabilized.
Standard: Less than 1/5 of the vibration width a
Notes：The laser beam vibrates widely again after it
passes the peak section of the minimum value.
Peak section of the minimum
value of the vibration width
- Ａ 51・AF-S VR 70-300/4.5-5.6G -
INC
JAA79551-R.3690.A
