Nikon JAA78351 Repair Manual

Af zoom-nikkor if 6g.5-5.3/f 200mm-28 e
Hide thumbs

Advertisement

Quick Links

Download this manual

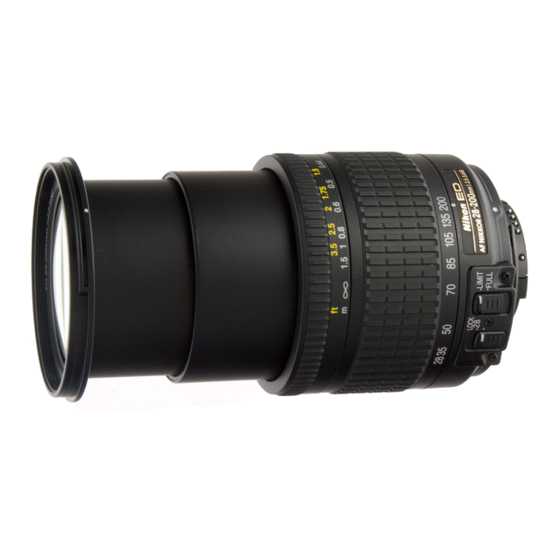

AF Zoom-Nikkor
ED 28-200mm f/3.5-5.6G IF
Recycled paper
Printed in Japan September 2003
JAA78351(BLACK)
JAA78301(SILVER)
REPAIR MANUAL
NIKON CORPORATION
作成承認印
TEMPORARY
Tokyo, Japan
Copyright ｃ 2003 by Nikon Corporation.
All Rights Reserved.
JAA78351-R.3597.A
配布許可印

Advertisement

loading
Need help?

Need help?

Do you have a question about the JAA78351 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nikon JAA78351

Summary of Contents for Nikon JAA78351

  • Page 1 JAA78351-R.3597.A 配布許可印 作成承認印 TEMPORARY AF Zoom-Nikkor ED 28-200mm f/3.5-5.6G IF JAA78351(BLACK) JAA78301(SILVER) REPAIR MANUAL NIKON CORPORATION Tokyo, Japan Copyright ｃ 2003 by Nikon Corporation. All Rights Reserved. Recycled paper Printed in Japan September 2003...

  • Page 2: Specifications

    JAA78351-R.3597.A SPECIFICATIONS Type of lens G-type AF Zoom- Nikkor lens having built-in CPU and Nikon bayonet mount Focal length 28mm-200mm Maximum aperture f/3.5-f/5.6 Lens construction 12 elements in 11 groups (2 ED lens elements) Picture angle 74°-12°20′ 53°-8° with Nikon Digital Camera D1/D1H/D1X/D100)
  • Page 3 JAA78351-R.3597.A Disassembly Cover ring - L1 ・AF28-200/3.5-5.6G -...
  • Page 4 JAA78351-R.3597.A Change-over switch unit - L2 ・AF28-200/3.5-5.6G -...
  • Page 5 JAA78351-R.3597.A - L3 ・AF28-200/3.5-5.6G -...
  • Page 6 JAA78351-R.3597.A #193 #102 #118 - L4 ・AF28-200/3.5-5.6G -...
  • Page 7 JAA78351-R.3597.A #172 #186 Zoom encoder brush Zoom encoder brush #138 #139 #140×2 Cam ring unit - L5 ・AF28-200/3.5-5.6G -...
  • Page 8 JAA78351-R.3597.A - L6 ・AF28-200/3.5-5.6G -...
  • Page 9 JAA78351-R.3597.A 2nd lens group unit 2nd lens group #135 - L7 ・AF28-200/3.5-5.6G -...
  • Page 10 JAA78351-R.3597.A 3rd lens group unit, Aperture blade housing unit - L8 ・AF28-200/3.5-5.6G -...
  • Page 11 JAA78351-R.3597.A Assembly Cam ring unit #81×3 #90×3 #167×3×3 #165×3 #78×3 #79×3 3rd lens group unit, Aperture blade housing unit #198 B5×7 - L9 ・AF28-200/3.5-5.6G -...
  • Page 12 JAA78351-R.3597.A 4th lens group unit - L10・AF28-200/3.5-5.6G -...
  • Page 13 JAA78351-R.3597.A - L11・AF28-200/3.5-5.6G -...
  • Page 14 JAA78351-R.3597.A - L12・AF28-200/3.5-5.6G -...
  • Page 15 JAA78351-R.3597.A Zoom encoder brush - L13・AF28-200/3.5-5.6G -...
  • Page 16 JAA78351-R.3597.A ・As shown in the left circle, engage the rollers in the concavities (at 3 positions) to assmelbe them while turning in the direction indicated by the arrow. 1st lens group unit - L14・AF28-200/3.5-5.6G -...
  • Page 17 JAA78351-R.3597.A - L15・AF28-200/3.5-5.6G -...
  • Page 18 JAA78351-R.3597.A - L16・AF28-200/3.5-5.6G -...
  • Page 19 JAA78351-R.3597.A Zoom ring, Index ring #125×2 #166×2 #125×2 #122×2 Coupling shaft ・Fit the 3 convexities of the index ring in the 3 concavities of the zoom ring as shown in the Convexity left to assemble them, and turn the index ring clockwise a little.
  • Page 20 JAA78351-R.3597.A Bayonet - L18・AF28-200/3.5-5.6G -...
  • Page 21 JAA78351-R.3597.A Zoom distance ring, Zoom ring rubber Zoom distance ring 3 pieces of Both- sided adhesive tape Zoom ring rubber Adjustment of Aperture opening Aperture lever ・Move the aperture lever to the full up position. ・Check for the aperture. Standard: Full aperture #143 ・In case it is out of standard, loosen and move the 2...
  • Page 22 JAA78351-R.3597.A Distance adjustment between G10 lens and G11 lens G12 lens G10 lens ・Detach the 4th lens group (B47). ・Measure the thickness (i.e. the above "A") of the 4th lens group by the digital micrometer. ・Turn the zoom ring to the full up position of the wide zoom, and set the lens on the measurement stand.
  • Page 23 JAA78351-R.3597.A F. F. D adjustment (Back focus) Using the F.F.D adjustment software, input each measured value and calculate each washer’s adjustment thickness in order to display them on the PC screen. How to adjust ●Start up the F.F.D adjustment software J18357 and enter each measured value in accordance with the instructions on PC displays.
  • Page 24 JAA78351-R.3597.A Inspection of Encoder signal Use the F70 camera body and the inspection software for lens encoder signals, and make an inspection by displaying the encoder signals on PC monitor. How to inspect ● Start the inspection software for lens encoder signals, and select "1. READING OF LENS ENCODER SIGNAL”.
  • Page 25 JAA78351-R.3597.A TOOLS ★：NEW TOOL RJ No. Name Note MZ-800S DRY SURF MZ-800S G92KA FLOIL G92KA EDB0011 SCREW LOCK 1401C C-8008B CEMEDAIN 8008(BLACK) J19002 BACK FOCUS COLLIMATER LT-500S J18028 LENS ADAPTER FOR FOCUS TESTER ★ J18357   F.F.D INSPECTION FD IBM 3.5inch.
  • Page 26 JAA78351-R.3597.A 外観図 Sketch drawings - F1 ・AF28-200/3.5-5.6G -...
  • Page 27 JAA78351-R.3597.A 組立図 Structure of the Lens - F2 ・AF28-200/3.5-5.6G -...

This manual is also suitable for:

Jaa78301
