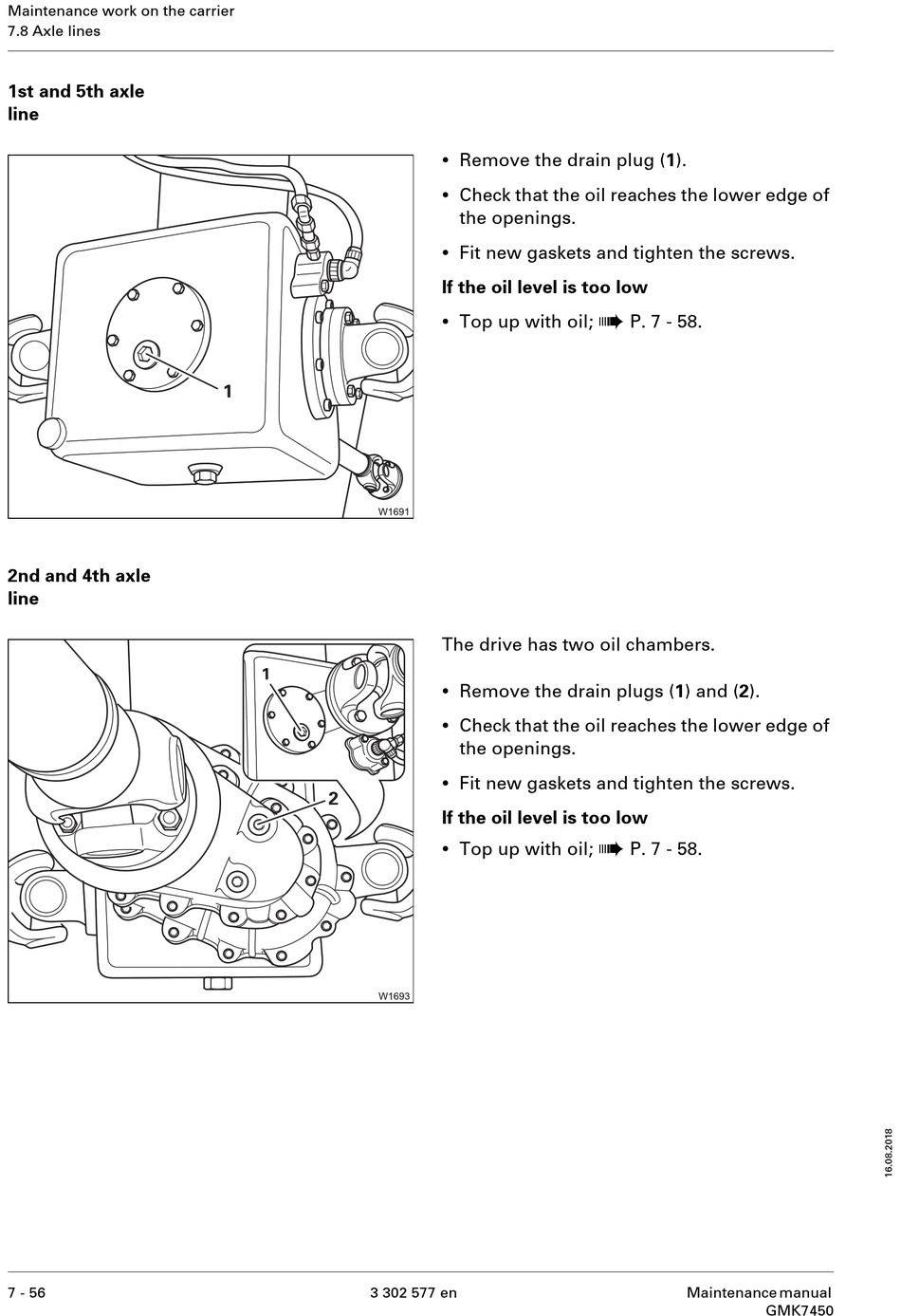

Manitowoc GROVE GMK7450 Maintenance Manual page 128

Maintenance work on the carrier
7.8 Axle lines
1st and 5th axle
line
2nd and 4th axle
line
7 - 56
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the openings.
•
Fit new gaskets and tighten the screws.
If the oil level is too low
•
Top up with oil;
The drive has two oil chambers.
•
Remove the drain plugs (1) and (2).
•
Check that the oil reaches the lower edge of
the openings.
•
Fit new gaskets and tighten the screws.
If the oil level is too low
•
Top up with oil;
3 302 577 en
à
P. 7 - 58.
à
P. 7 - 58.
Maintenance manual
GMK7450
