Maintenance manual
GMK7450
1 Air-conditioning system in the driver's cab
2 Connection for the hand-held control
3 Derricking-cylinder pressure sensor, left
4 Suspension struts
5 Control units for outriggers
6 Spotlights, pivoting
7 Lowering limit switch
8 Control unit at connection 1
9 Derricking-cylinder pressure sensor, right
10 Angle sensor switch box
11 RCL length measuring unit
12 Telescopic slide faces
13 Lifting limit switch
14 RCL terminal box
15 Distribution box
16 Removable supporting box (ROB) control unit
17 Crane cab air-conditioning system
Assemblies at risk of damage on the lattice extension;
operating manual .

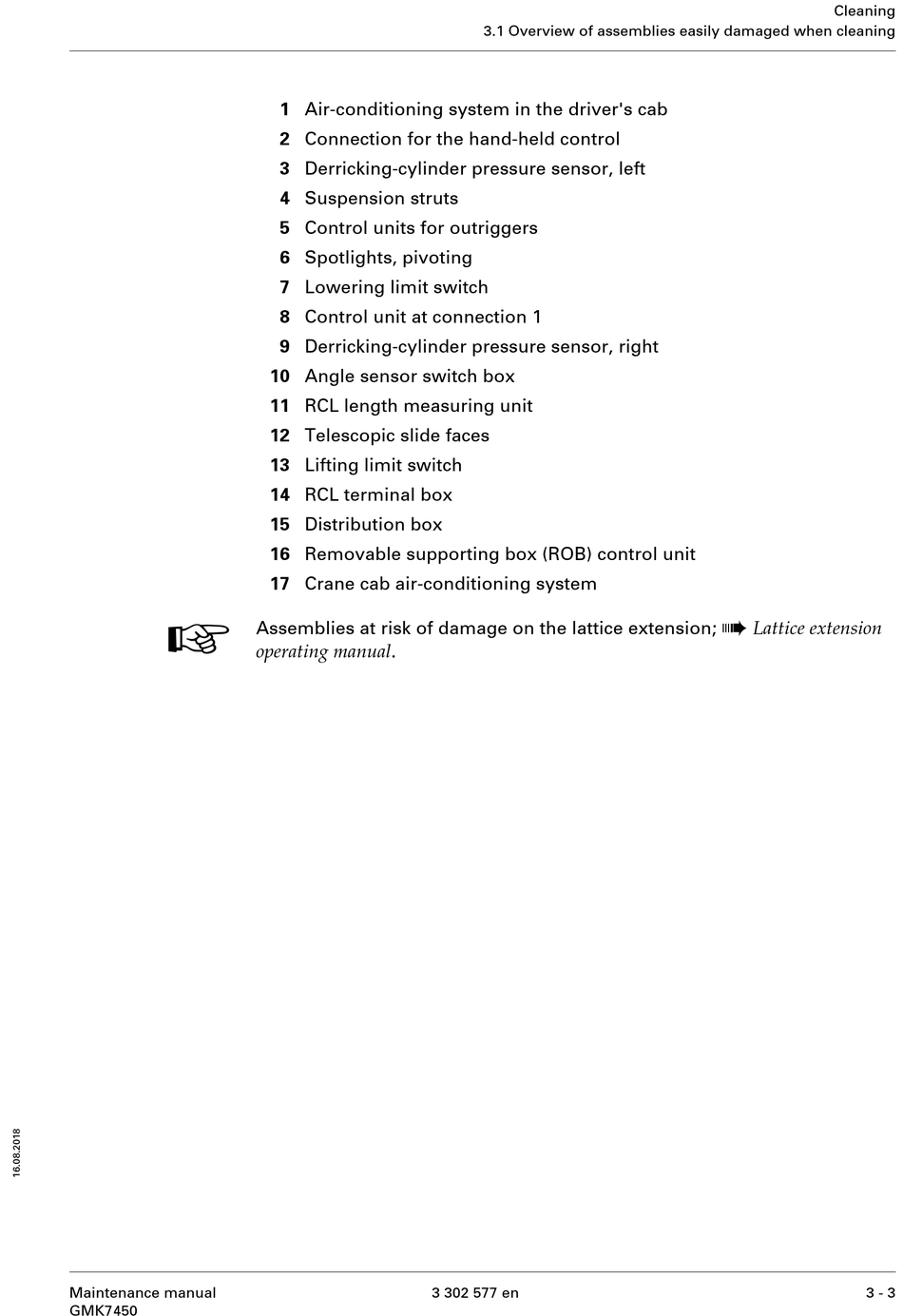

3.1 Overview of assemblies easily damaged when cleaning
3 302 577 en
Cleaning
à
Lattice extension
3 - 3
