Maintenance work on the superstructure
8.10 Hydraulic system
8.10.5
Spare parts and
tools
Prerequisites
O
8 - 72

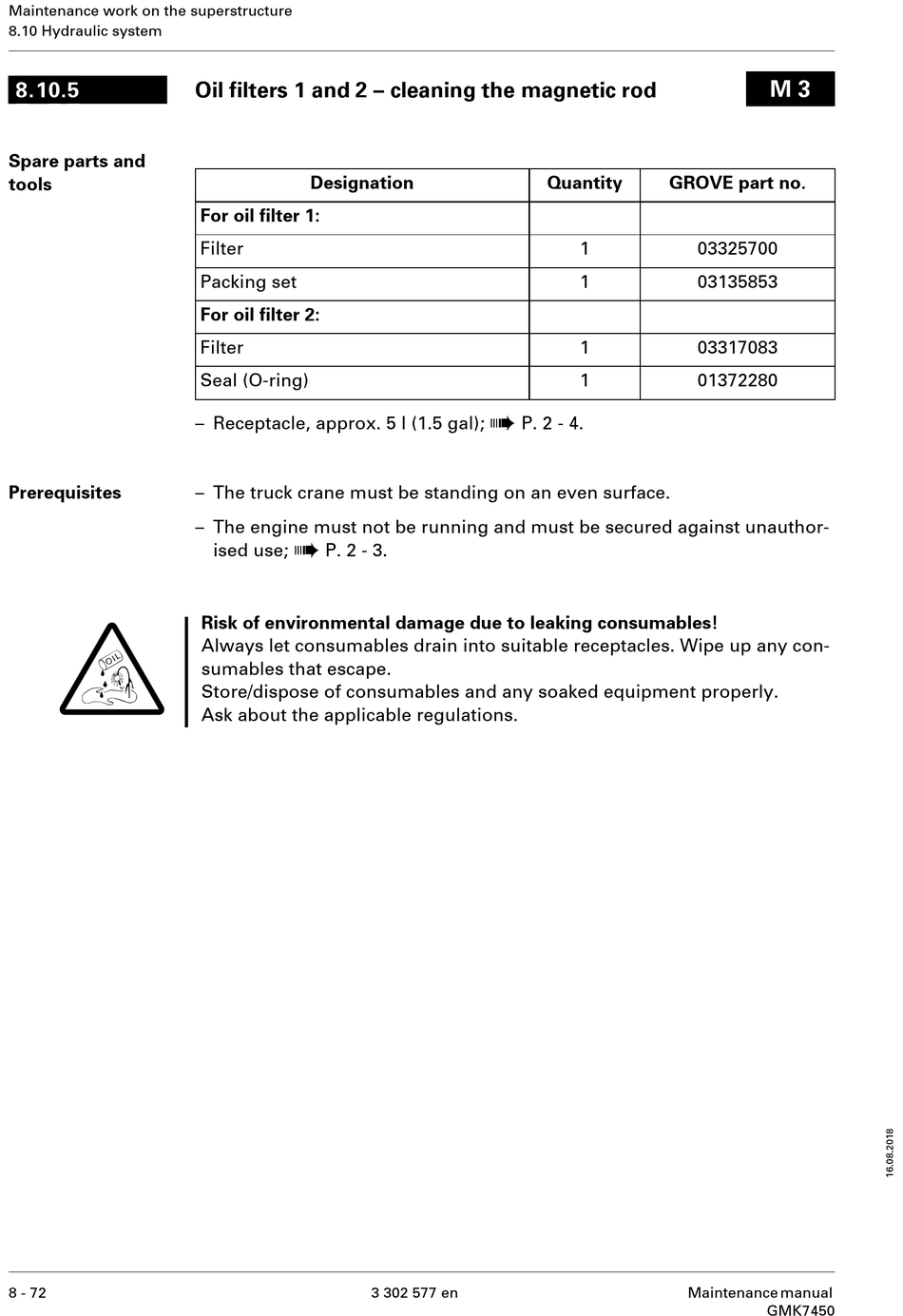

Oil filters 1 and 2 – cleaning the magnetic rod
Designation
For oil filter 1:
Filter
Packing set
For oil filter 2:
Filter
Seal (O-ring)
– Receptacle, approx. 5 l (1.5 gal);
– The truck crane must be standing on an even surface.
– The engine must not be running and must be secured against unauthor-
à
ised use; P. 2 - 3.
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
à
P. 2 - 4.
3 302 577 en
Quantity GROVE part no.
1 03325700
1 03135853
1 03317083
1 01372280
Maintenance manual
M 3
GMK7450
