Manitowoc GROVE GMK7450 Maintenance Manual page 162

Maintenance work on the carrier
7.14 Hydraulic system

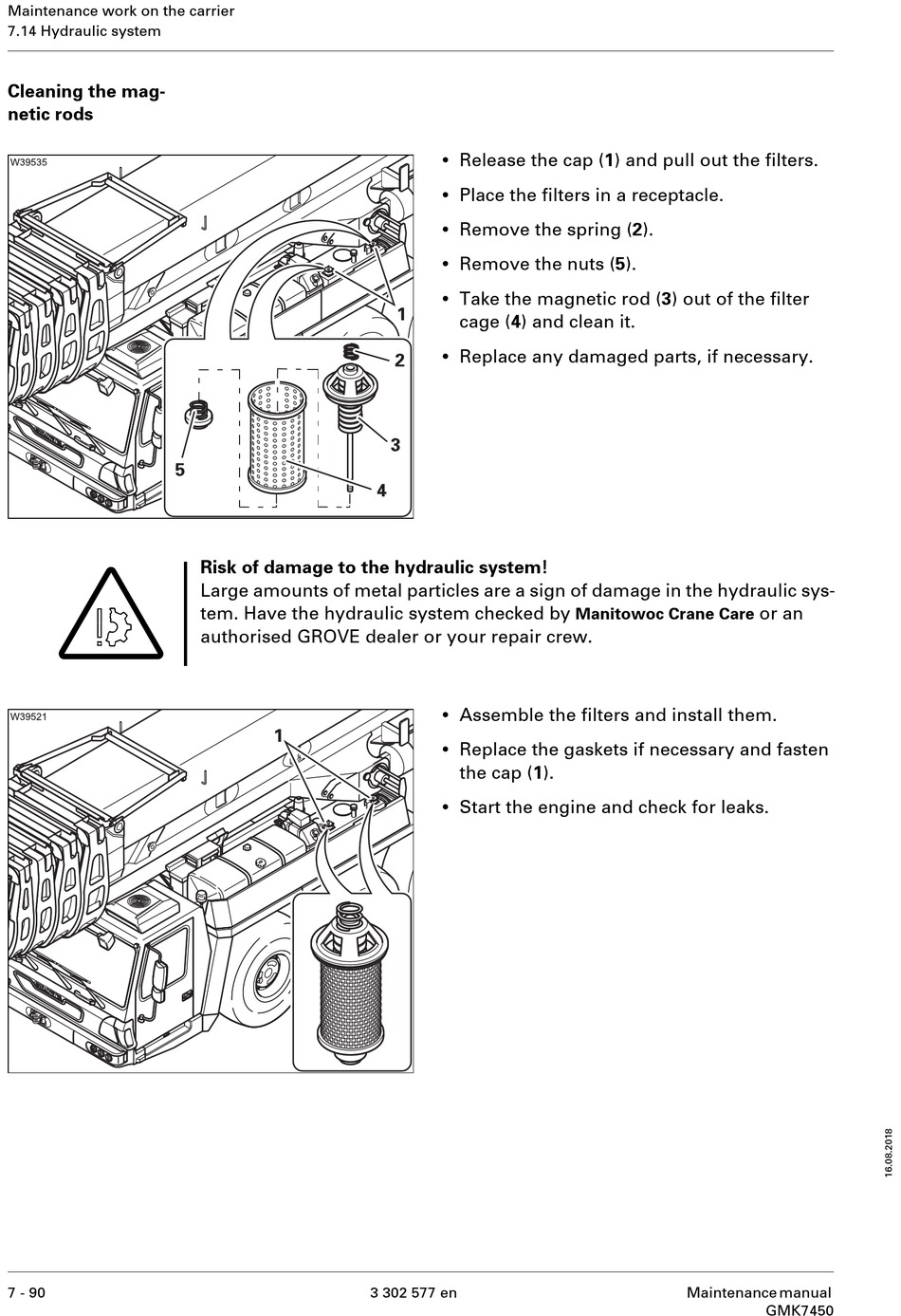

Cleaning the mag-
netic rods
S
7 - 90
Risk of damage to the hydraulic system!
Large amounts of metal particles are a sign of damage in the hydraulic sys-
tem. Have the hydraulic system checked by
authorised GROVE dealer or your repair crew.
3 302 577 en
•
Release the cap (1) and pull out the filters.
•
Place the filters in a receptacle.
•
Remove the spring (2).
•
Remove the nuts (5).
•
Take the magnetic rod (3) out of the filter
cage (4) and clean it.
•
Replace any damaged parts, if necessary.
Manitowoc Crane Care
•
Assemble the filters and install them.
•
Replace the gaskets if necessary and fasten
the cap (1).
•
Start the engine and check for leaks.
or an
Maintenance manual
GMK7450
