Maintenance work on the superstructure

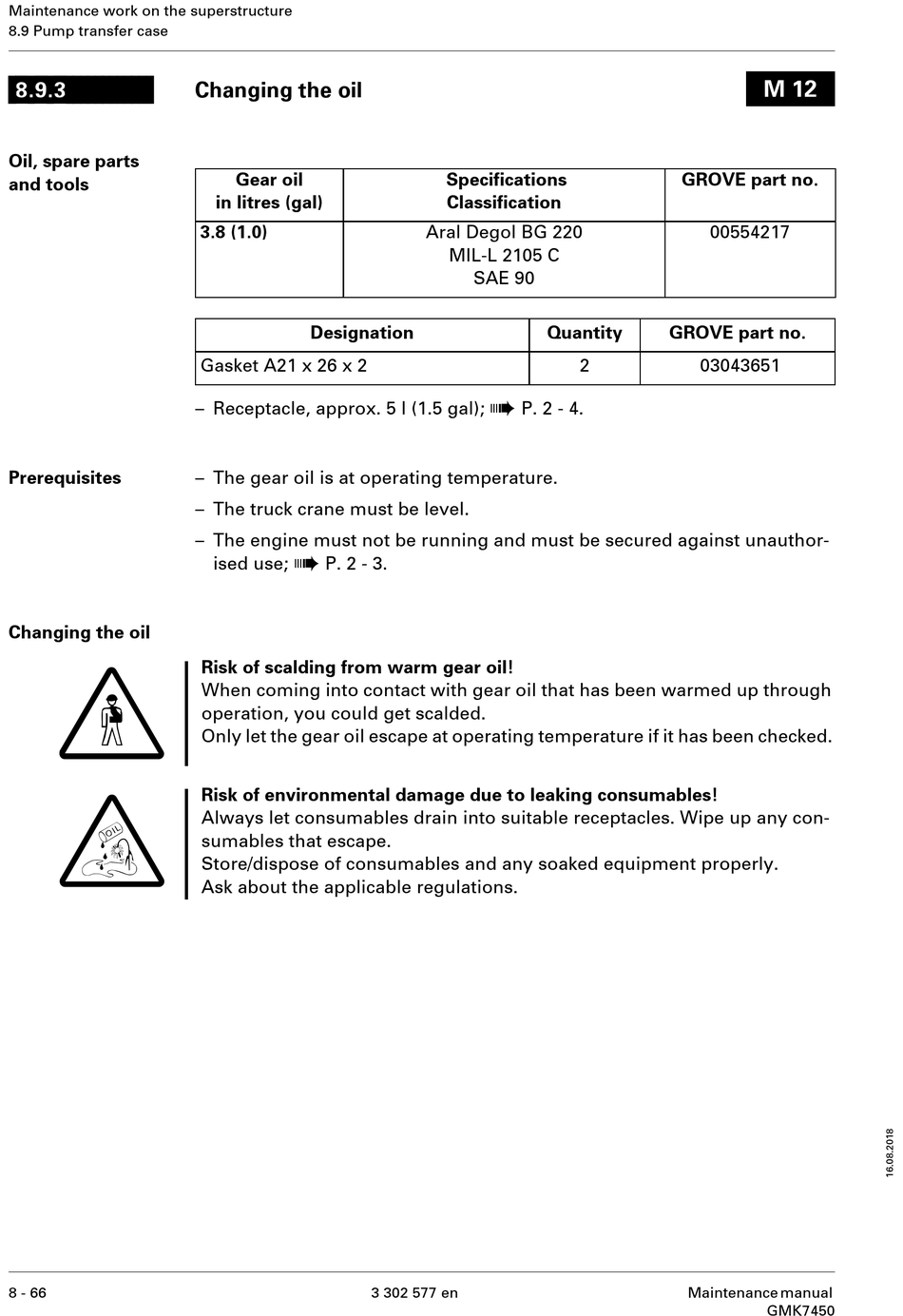

8.9 Pump transfer case
8.9.3
Oil, spare parts
and tools
Prerequisites

Changing the oil

G
O
8 - 66
Changing the oil
Gear oil
in litres (gal)
3.8 (1.0)
Designation
Gasket A21 x 26 x 2
– Receptacle, approx. 5 l (1.5 gal);
– The gear oil is at operating temperature.
– The truck crane must be level.
– The engine must not be running and must be secured against unauthor-
à
ised use; P. 2 - 3.
Risk of scalding from warm gear oil!
When coming into contact with gear oil that has been warmed up through
operation, you could get scalded.
Only let the gear oil escape at operating temperature if it has been checked.
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
Specifications
Classification
Aral Degol BG 220
MIL-L 2105 C
SAE 90
à
P. 2 - 4.
3 302 577 en
GROVE part no.
00554217
Quantity GROVE part no.
2 03043651
Maintenance manual
M 12
GMK7450
