Manitowoc GROVE GMK7450 Maintenance Manual page 282

Maintenance work on the superstructure
8.10 Hydraulic system
Change oil filter 2
8 - 80
•

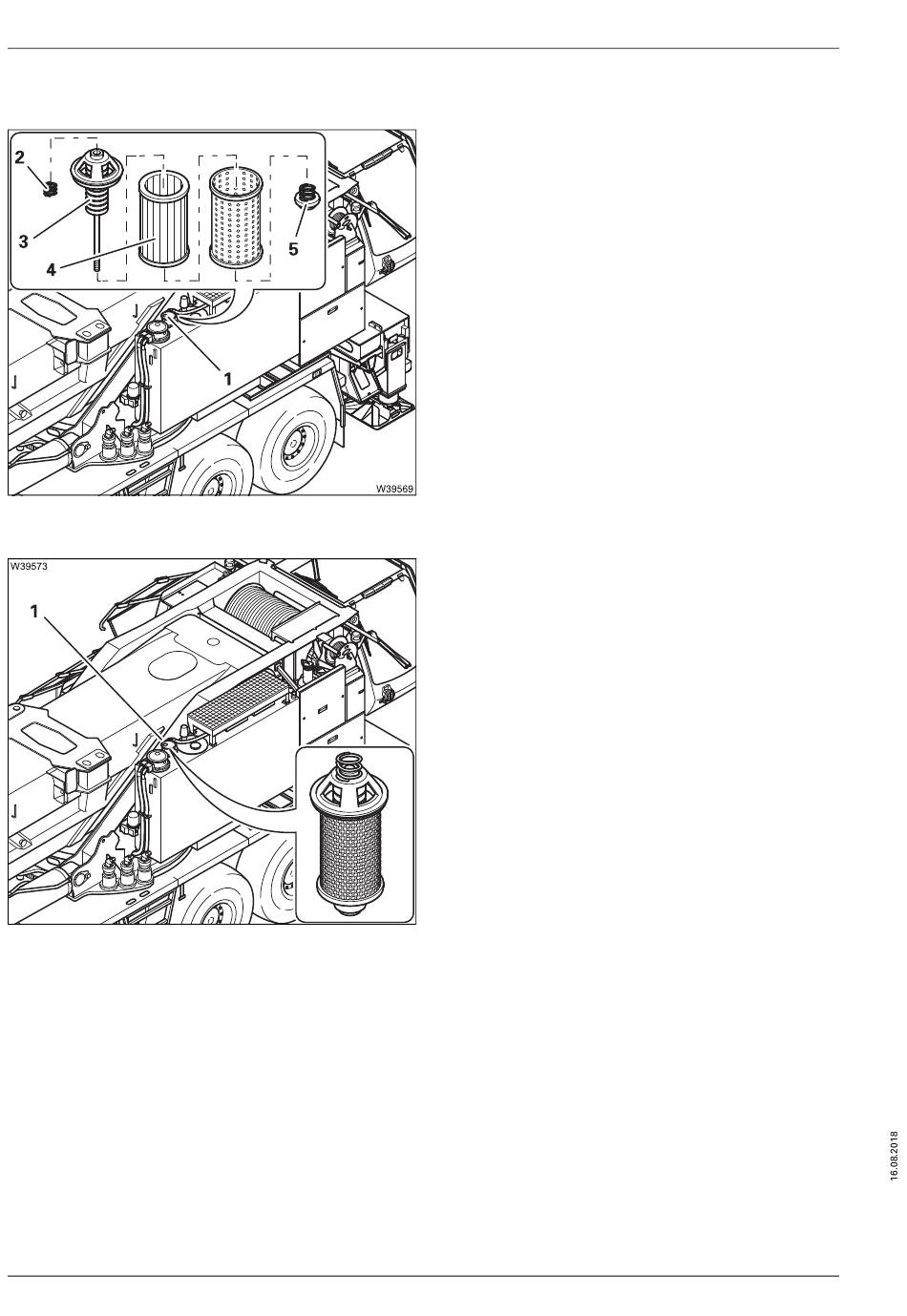

Take off the cap (1) and pull out the filter.
•
Place the filter in a receptacle.
•
Remove the spring (2).
•
Remove the nut (5).
•
Remove the magnetic rod (3) and filter (4)
from the filter cage.
•
Clean the magnetic rod (3) and filter cage.
•
Insert a new filter (4) into the filter cage.
•
Replace any damaged parts, if necessary.
•
Replace the gaskets.
•
Assemble the filter and insert it.
•
Fasten the cover (1).
3 302 577 en Maintenance manual
GMK7450
