Maintenance work on the superstructure

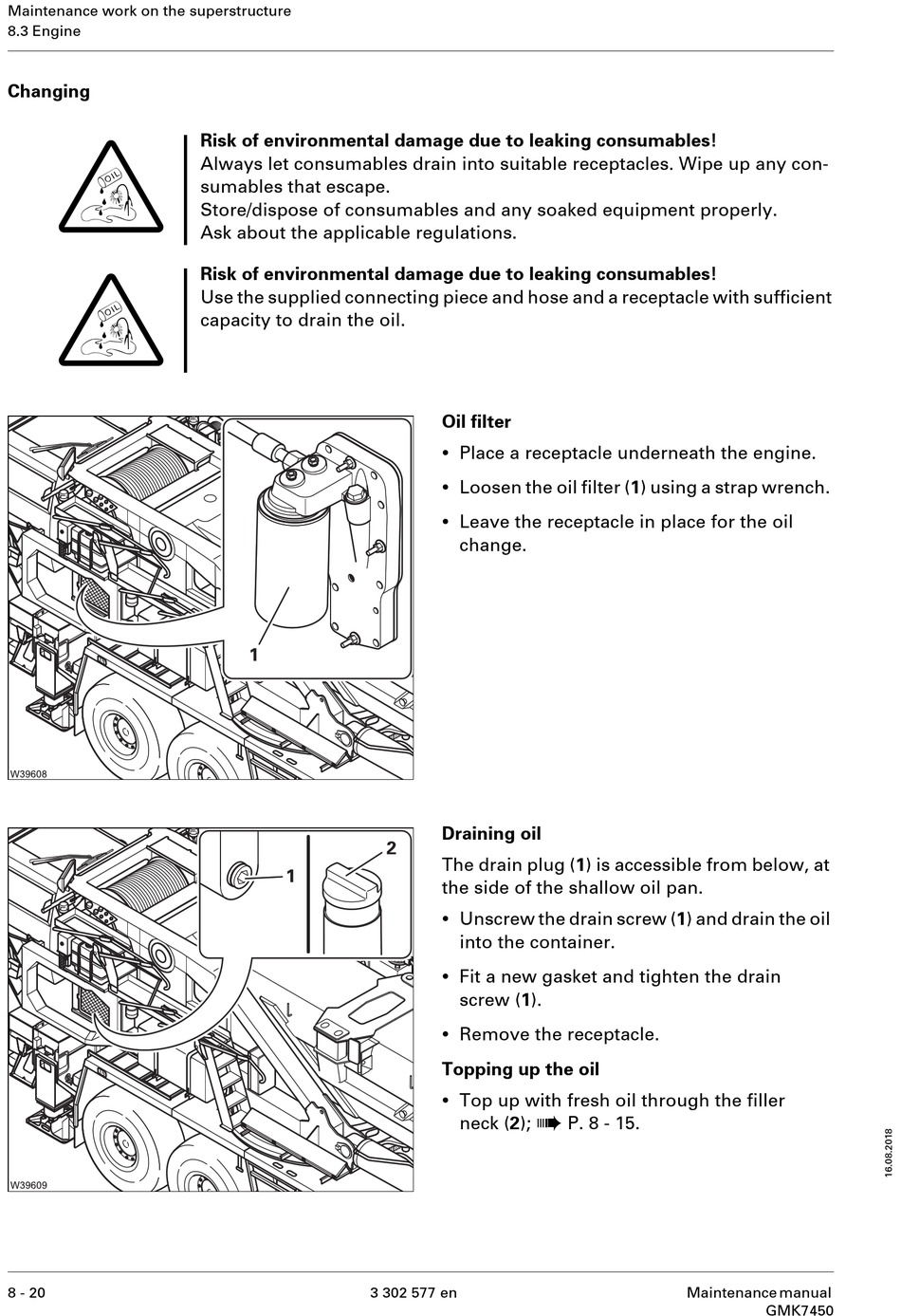

8.3 Engine
Changing
O
O
8 - 20
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
Risk of environmental damage due to leaking consumables!
Use the supplied connecting piece and hose and a receptacle with sufficient
capacity to drain the oil.
3 302 577 en
Oil filter
•
Place a receptacle underneath the engine.
•
Loosen the oil filter (1) using a strap wrench.
•
Leave the receptacle in place for the oil
change.
Draining oil
The drain plug (1) is accessible from below, at
the side of the shallow oil pan.
•
Unscrew the drain screw (1) and drain the oil
into the container.
•
Fit a new gasket and tighten the drain
screw (1).
•
Remove the receptacle.
Topping up the oil
•
Top up with fresh oil through the filler
à
neck (2); P. 8 - 15.
