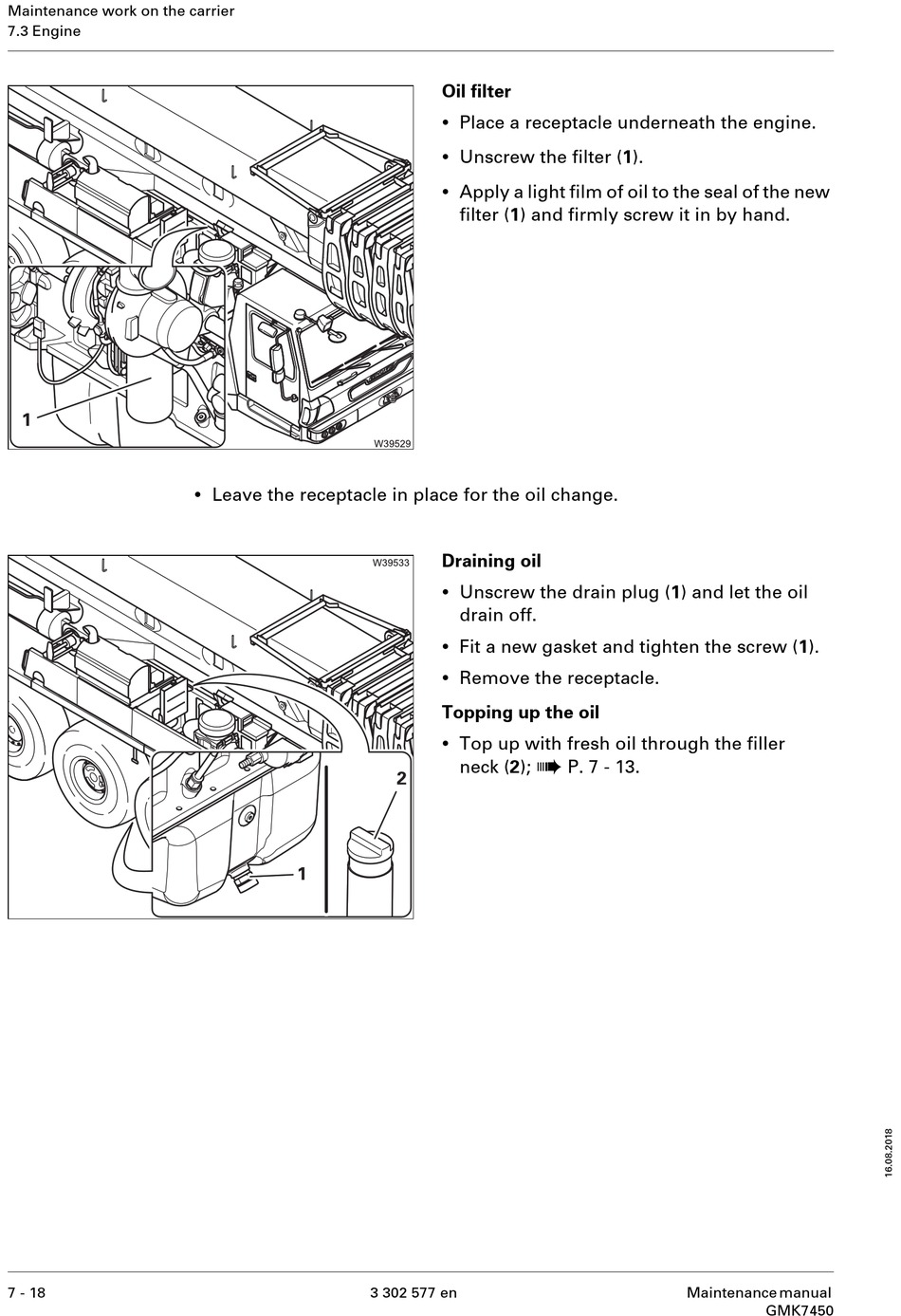

Manitowoc GROVE GMK7450 Maintenance Manual page 90

Maintenance work on the carrier
7.3 Engine
7 - 18
•
Leave the receptacle in place for the oil change.
Oil filter
•
Place a receptacle underneath the engine.
•
Unscrew the filter (1).
•
Apply a light film of oil to the seal of the new
filter (1) and firmly screw it in by hand.
Draining oil
•
Unscrew the drain plug (1) and let the oil
drain off.
•
Fit a new gasket and tighten the screw (1).
•
Remove the receptacle.
Topping up the oil
•
Top up with fresh oil through the filler
à
neck (2);
3 302 577 en
P. 7 - 13.
Maintenance manual
GMK7450
