8.5
Overview
Maintenance manual
GMK7450

Exhaust system with exhaust emission control

In order to adhere to the exhaust emission regulations, you are only permit-
ted to drive the crane with the multi-stage exhaust system consisting of
DOC catalytic converter, DPF particle filter, SCR catalytic converter (DOC =
Diesel Oxidation Catalyst, DPF = Diesel Particulate Filter, SCR = Selective
Catalytic Reduction).
The exhaust gas is cleaned with an AdBlue system (DEF). AdBlue (DEF)
(Diesel Exhaust Fluid) from the from the DEF tank is injected into the mixing
tube in the exhaust system for this.
The motor output is automatically sharply reduced when there is not
enough AdBlue solution available. Driving with an empty AdBlue tank will
cause the engine to malfunction;
turer's documentation .
8.5 Exhaust system with exhaust emission control
à
Operating manual ,

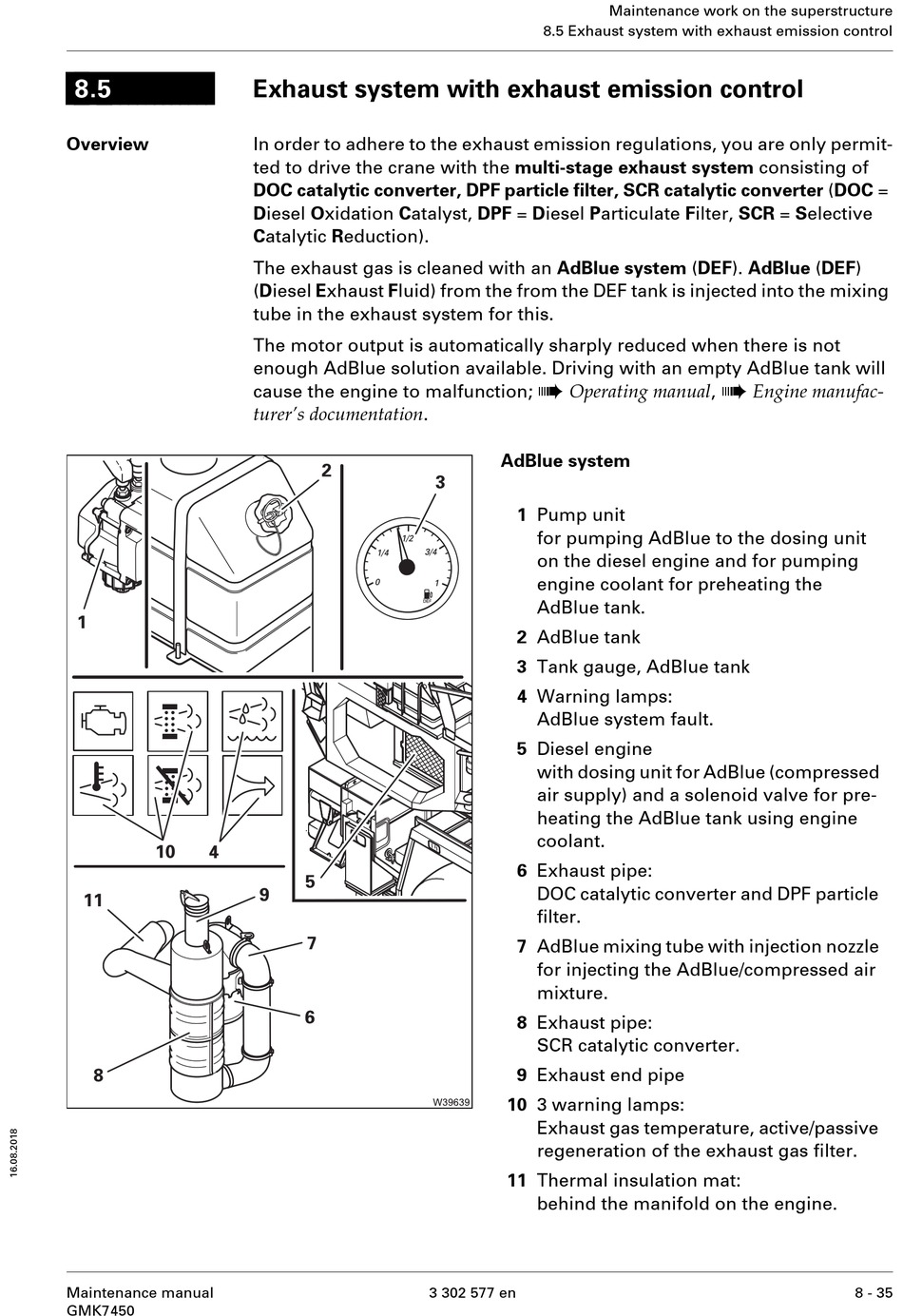

AdBlue system
1 Pump unit
for pumping AdBlue to the dosing unit
on the diesel engine and for pumping
engine coolant for preheating the
AdBlue tank.
2 AdBlue tank
3 Tank gauge, AdBlue tank
4 Warning lamps:
AdBlue system fault.
5 Diesel engine
with dosing unit for AdBlue (compressed
air supply) and a solenoid valve for pre-
heating the AdBlue tank using engine
coolant.
6 Exhaust pipe:
DOC catalytic converter and DPF particle
filter.
7 AdBlue mixing tube with injection nozzle
for injecting the AdBlue/compressed air
mixture.
8 Exhaust pipe:
SCR catalytic converter.
9 Exhaust end pipe
10 3 warning lamps:
Exhaust gas temperature, active/passive
regeneration of the exhaust gas filter.
11 Thermal insulation mat:
behind the manifold on the engine.
3 302 577 en
Maintenance work on the superstructure
à
Engine manufac-
8 - 35
