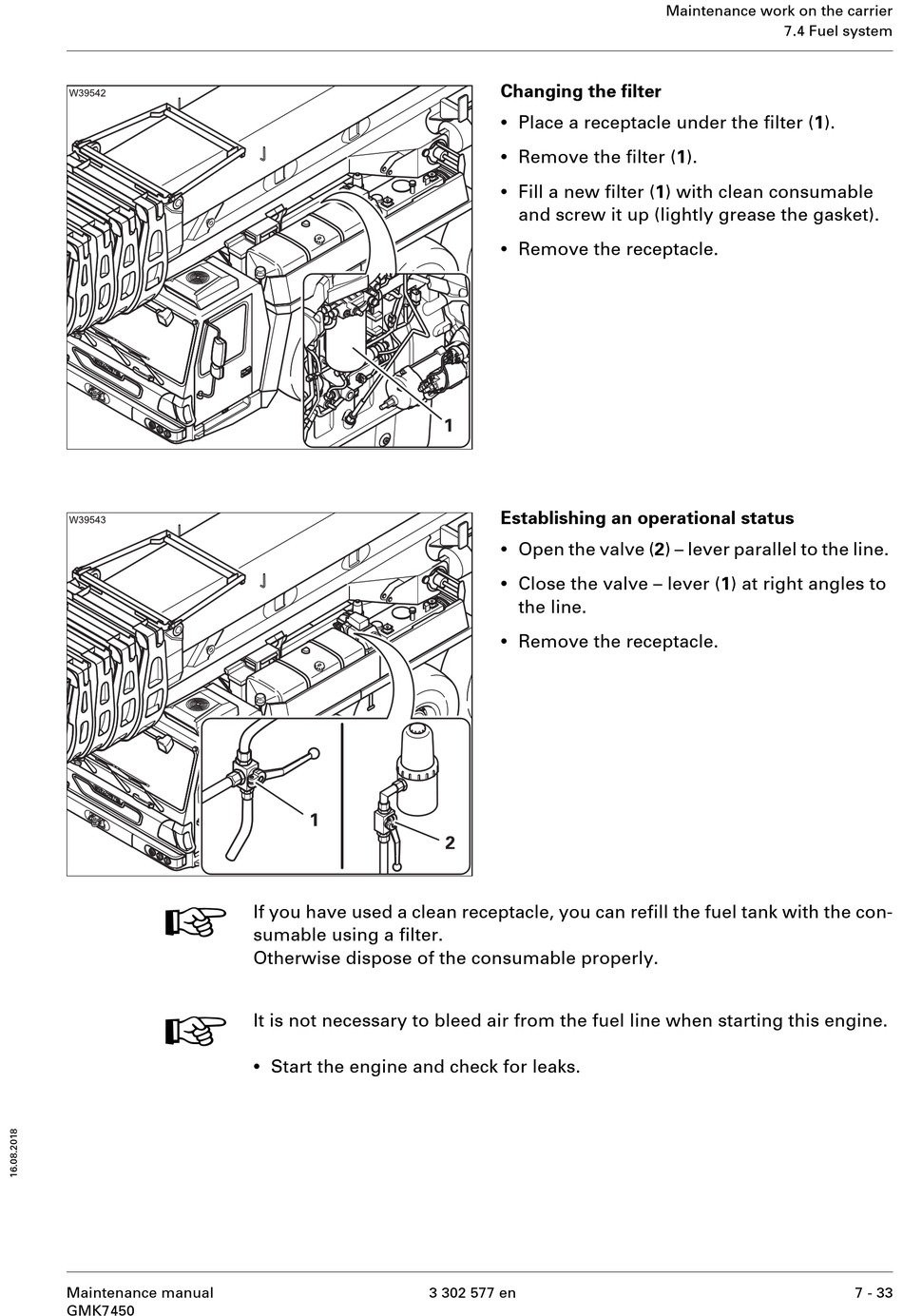

Manitowoc GROVE GMK7450 Maintenance Manual page 105

H
H
Maintenance manual
GMK7450
If you have used a clean receptacle, you can refill the fuel tank with the con-
sumable using a filter.
Otherwise dispose of the consumable properly.
It is not necessary to bleed air from the fuel line when starting this engine.
•
Start the engine and check for leaks.
Changing the filter
•
Place a receptacle under the filter (1).
•
Remove the filter (1).
•
Fill a new filter (1) with clean consumable
and screw it up (lightly grease the gasket).
•
Remove the receptacle.
Establishing an operational status
•
Open the valve (2) – lever parallel to the line.
•
Close the valve – lever (1) at right angles to
the line.
•
Remove the receptacle.
3 302 577 en
Maintenance work on the carrier
7.4 Fuel system
7 - 33
