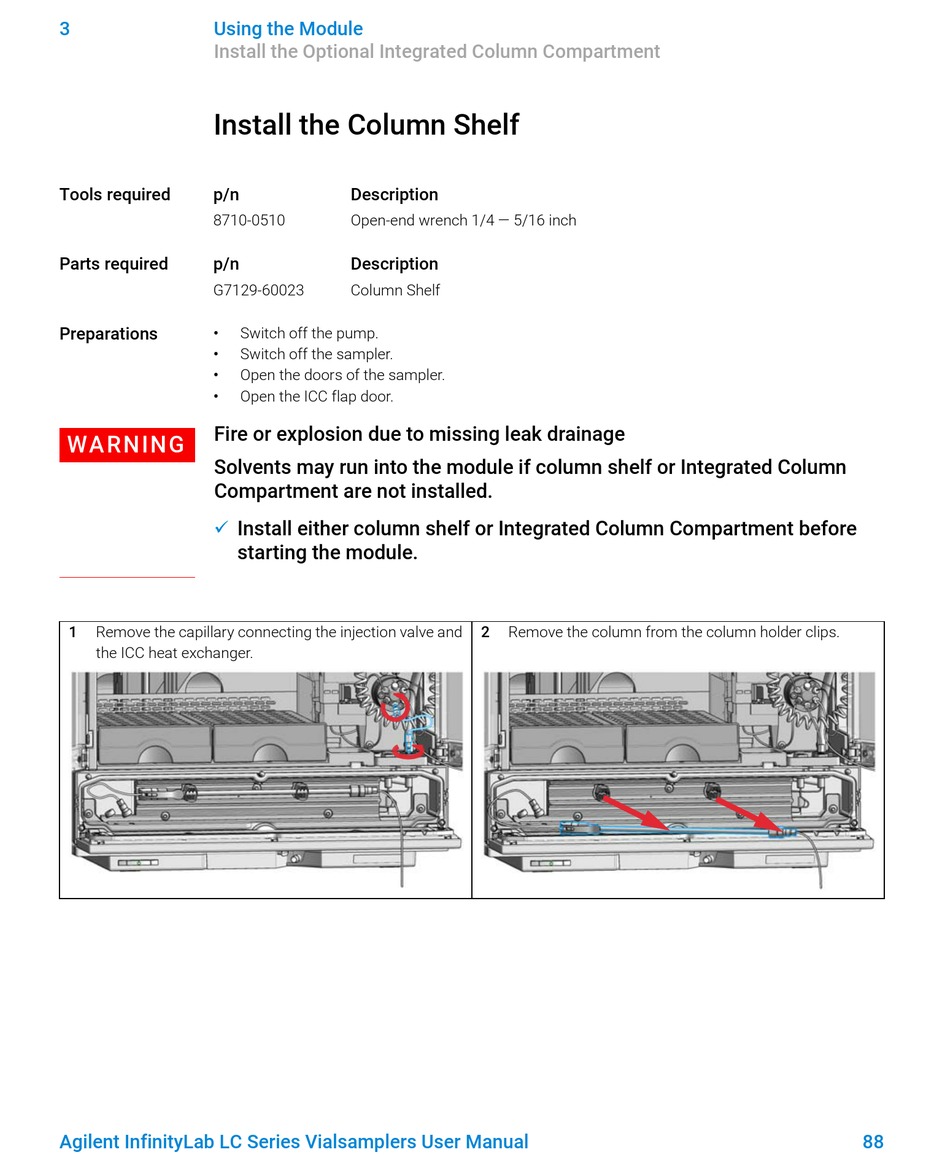

Agilent Technologies InfinityLab LC Series User Manual page 88

3 Using the Module
Install the Optional Integrated Column Compartment
Install the Column Shelf
Tools required p/n
8710-0510
Parts required p/n
G7129-60023
Preparations
•
•
•
•
Fire or explosion due to missing leak drainage
WAR N IN G
Solvents may run into the module if column shelf or Integrated Column
Compartment are not installed.
Install either column shelf or Integrated Column Compartment before

starting the module.
1 Remove the capillary connecting the injection valve and
the ICC heat exchanger.
Agilent InfinityLab LC Series Vialsamplers User Manual
Description
Open-end wrench 1/4 — 5/16 inch
Description
Column Shelf
Switch off the pump.
Switch off the sampler.
Open the doors of the sampler.
Open the ICC flap door.
2 Remove the column from the column holder clips.
