3 Using the Module
Using the Optional Integrated Column Compartment
3 Click the Insert button to insert a line above the currently selected line, or the
4 Click the Edit button to display a dialog box that allows you to edit the
5 Add or edit the other column-specific information (for example, maximum
6 If the column is installed and will be used in the Multicolumn Thermostat,
7 Click the Plumbing button.
Agilent InfinityLab LC Series Vialsamplers User Manual
Append button to add a line to the end of the table.
The new line contains a copy of the information in the template line.
column-specific information such as Serial Number, Batch Number and
Description.
pressure, maximum temperature, length, diameter, particle size) in the Edit
Columns table.
select YES in the Installed column.
The Column Assignment dialog box is displayed.

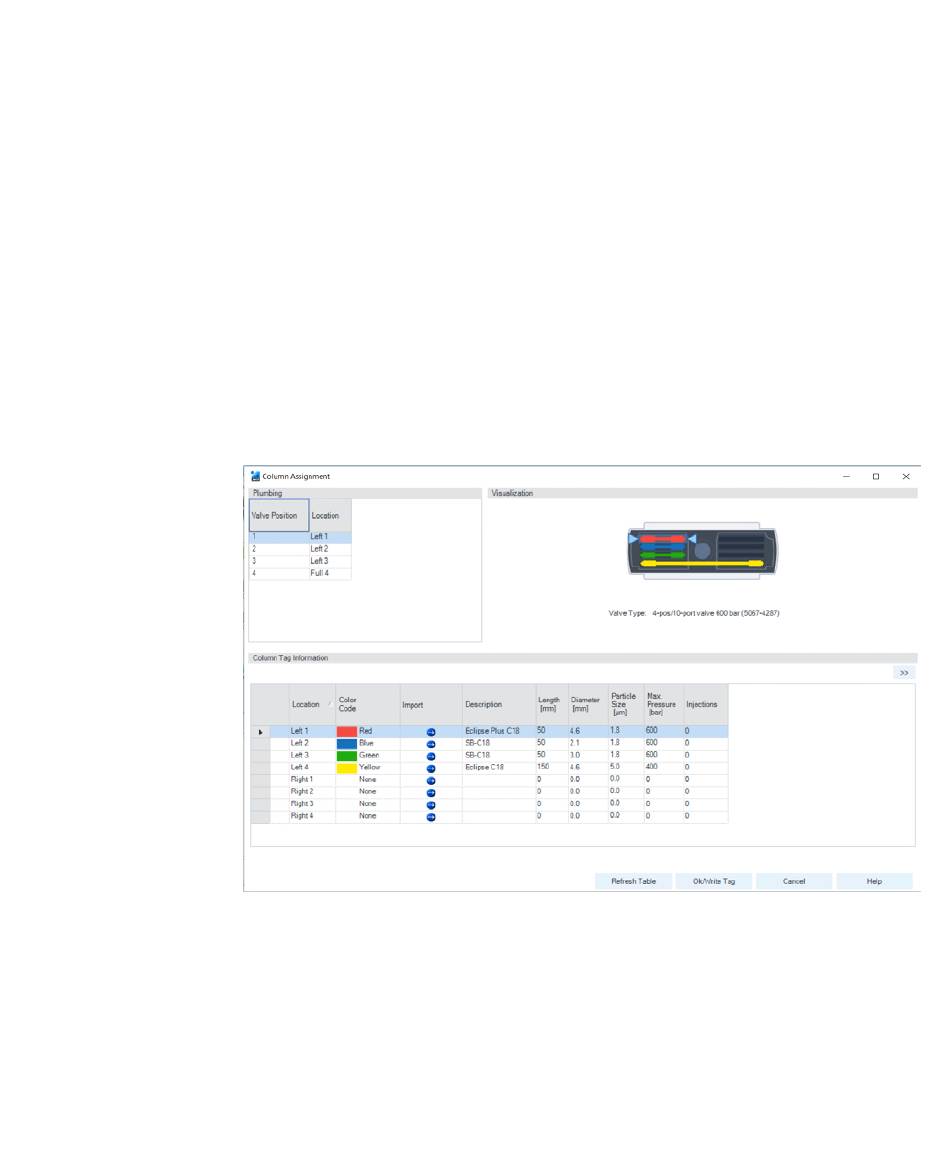

Figure 21 Column Assignment dialog box
