4 Preparing the Module
Installing Capillaries
Installing Capillaries
For correct installation of capillary connections of the sampler it's important to
choose the correct fittings, see
Parts required p/n
5067-4650
5067-4651
5067-4720
5067-4722
5065-4454
The capillaries mentioned above are examples only.
1 Select a nut that is long enough for the fitting you'll be
using.
Agilent InfinityLab LC Series Vialsamplers User Manual
"Capillary Color Coding Guide"
Description
Capillary ST 0.12 mm x 150 mm SL/SX
Capillary ST 0.12 mm x 280 mm SL/SX
Capillary ST 0.17 mm x 150 mm SL/SX
Capillary ST 0.17 mm x 280 mm SL/SX
Fitting screw long
10/pk
Quantity depends on configuration of the module (number of connections to the
multisampler).

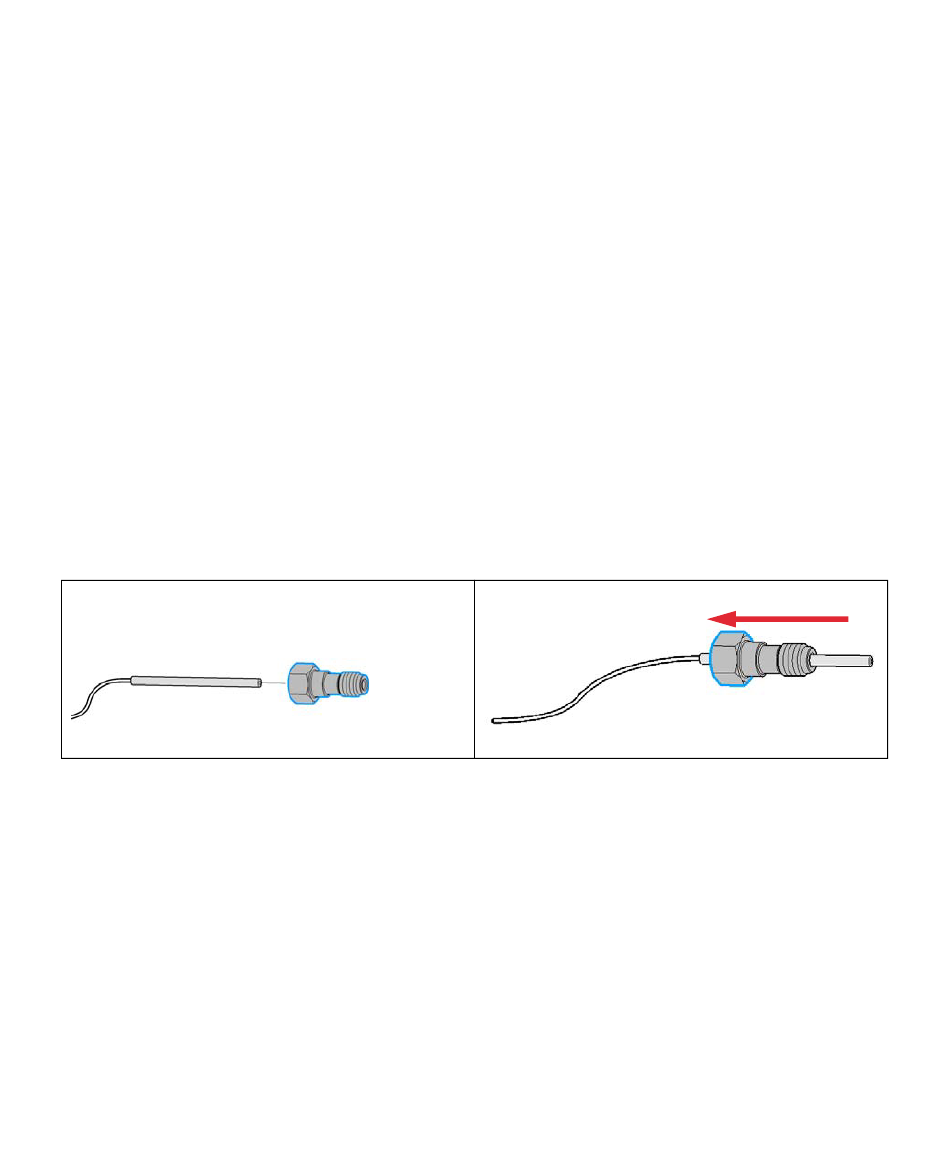

2 Slide the nut over the end of the tubing or capillary.
on page 149.
