9 Parts and Materials for Maintenance
Analytical Head Assembly (100 µL)
Analytical Head Assembly (100 µL)
Item
1
2
3
4
5
6
7
Figure 45
With the 100 µL analytical head, the maximum system pressure is limited to
NOTE
800 bar.
Agilent InfinityLab LC Series Vialsamplers User Manual
p/n Description
G7129-60082 Analytical Head Assembly 100 µL
G7129-27710 Analytical-Head 100 µL
0905-1503 Metering Seal, 100 µL
G7129-60182 Seal Support, 100 µL
0515-1052 Screw, ST, M3x0.5, Hex 2.5 mm
G7129-60006 Analytical Head Adapter
0515-0850 Screw, ST, M4x0.7, Hex 4 mm
5067-5678 Piston, 100 µL, Zirconia
4
3
2
1

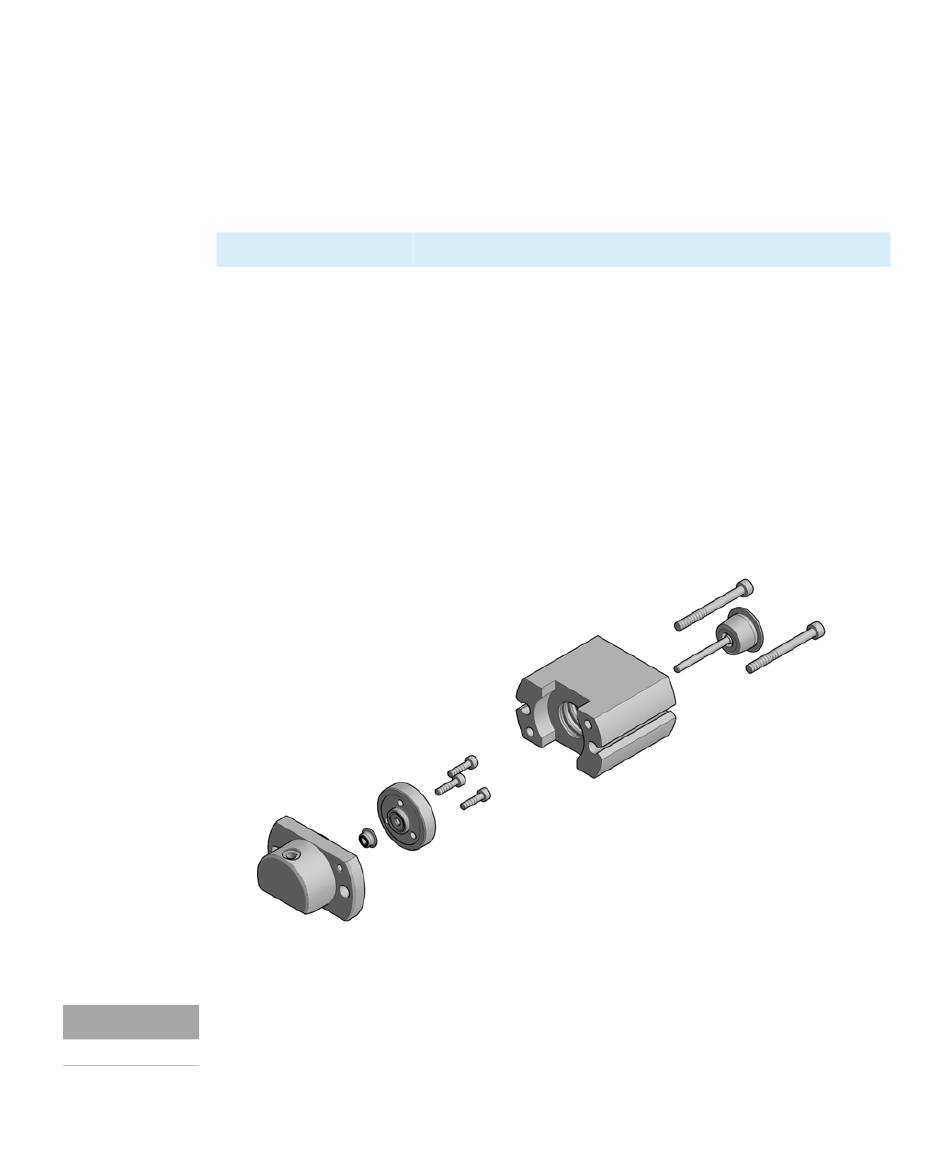

Analytical head assembly, 100 µL
6
5
7
