3 Using the Module
Install the Optional Integrated Column Compartment
Remove a Column from the ICC
Tools required p/n
8710-0510
Preparations
•
•
•

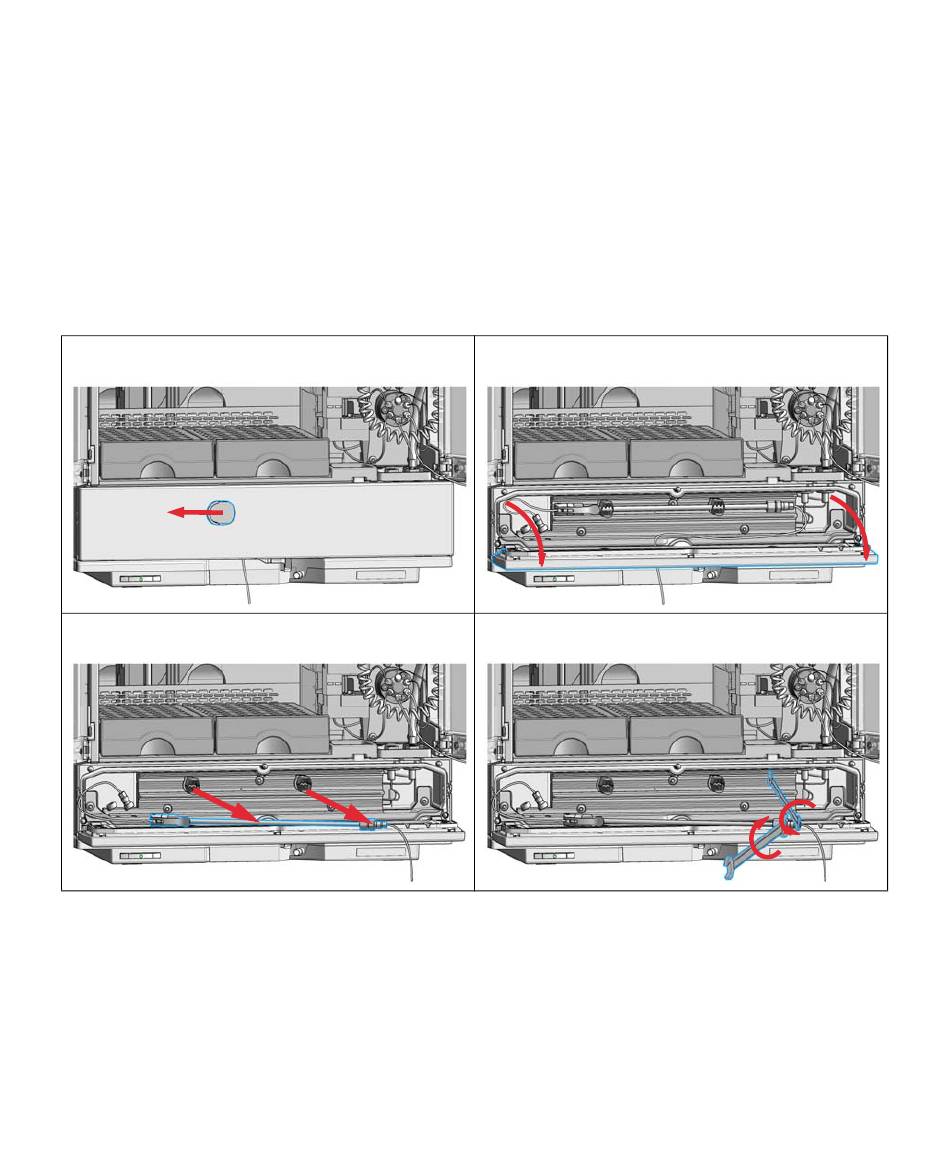

1 Push the latch of the Integrated Column Compartment
to the left.
3 Remove the column from the column holder clips.
Agilent InfinityLab LC Series Vialsamplers User Manual
Description
Open-end wrench 1/4 — 5/16 inch
Switch off the pump
Switch off the sampler
Open the doors of the sampler
2 Open the flap door.
4 Loosen the Quick Turn Fitting either with your fingers or
with the help of two wrenches.
