Using the Optional Sample Cooler/Sample Thermostat
Using the Optional Sample Cooler/Sample
Thermostat
The following section describes how to operate the Agilent Infinity II Sample
Cooler and the Agilent InfinityLab Sample Thermostat using the Multisampler as
an example for the hosting sampler. The operation principle is the same for any
other Infinity II sampler type.
Dashboard

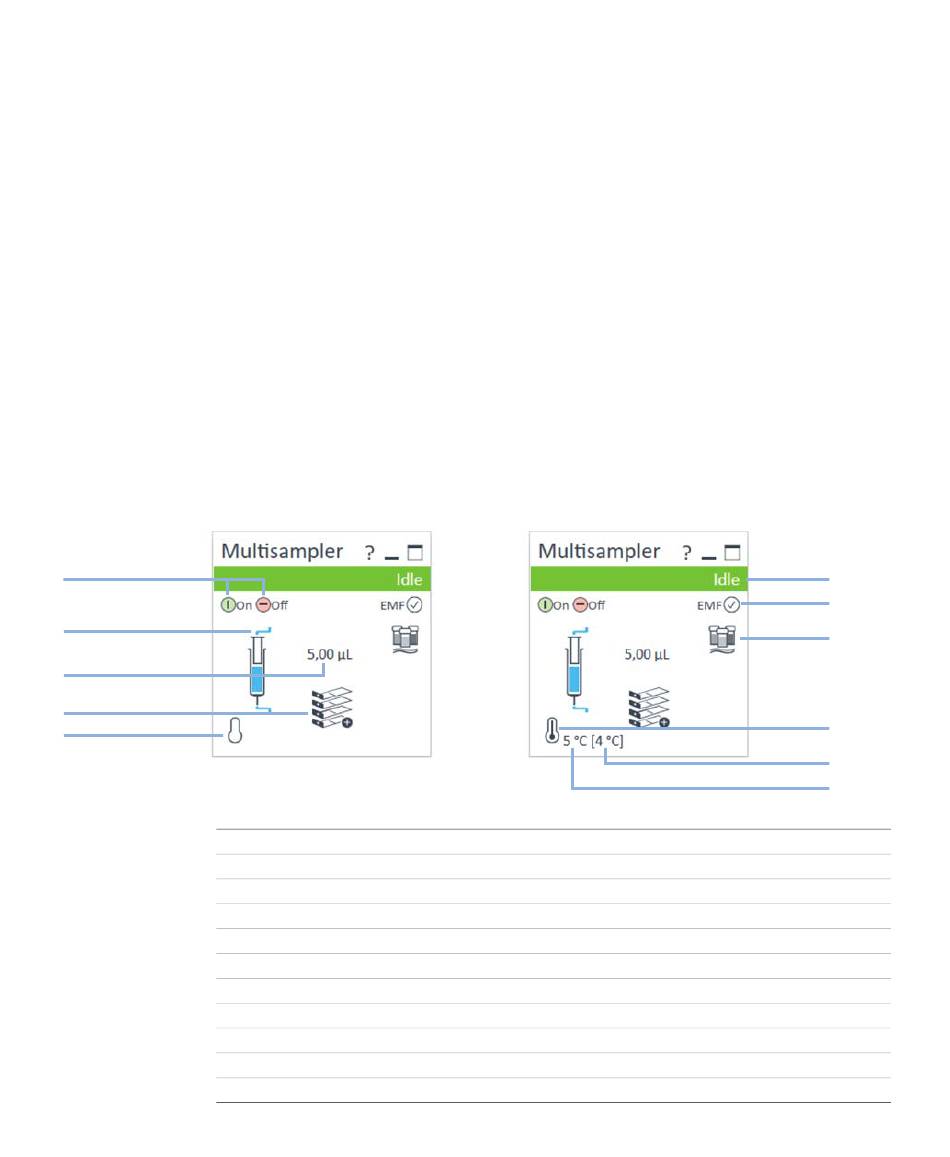

The status indicator of the Sample Cooler/Sample Thermostat is incorporated in
the graphical user interface (GUI) of the hosting sampler, which appears
automatically when the unit is configured in the chromatography data system
(CDS). When the cooler/thermostat is turned on, the set temperature and the
actual temperature are also displayed.
1
2
3
4
8
1
2
3
4
5
6
7
8
9
10
11
Agilent InfinityLab LC Series Vialsamplers User Manual
Sampler: Turn On/Off
Sampler: Analytical head configuration
Sampler: Injection volume
Sampler: Hotel configuration
Sampler: Status indicator
Sampler: Early Maintenance Feedback (EMF) status
Sampler: Multiwash installed
Cooler/Thermostat: Status indicator (Off)
Cooler/Thermostat: Status indicator (On)
Cooler/Thermostat: Set temperature
Cooler/Thermostat: Actual temperature
5
6
7
9
10
11
