8 Maintenance

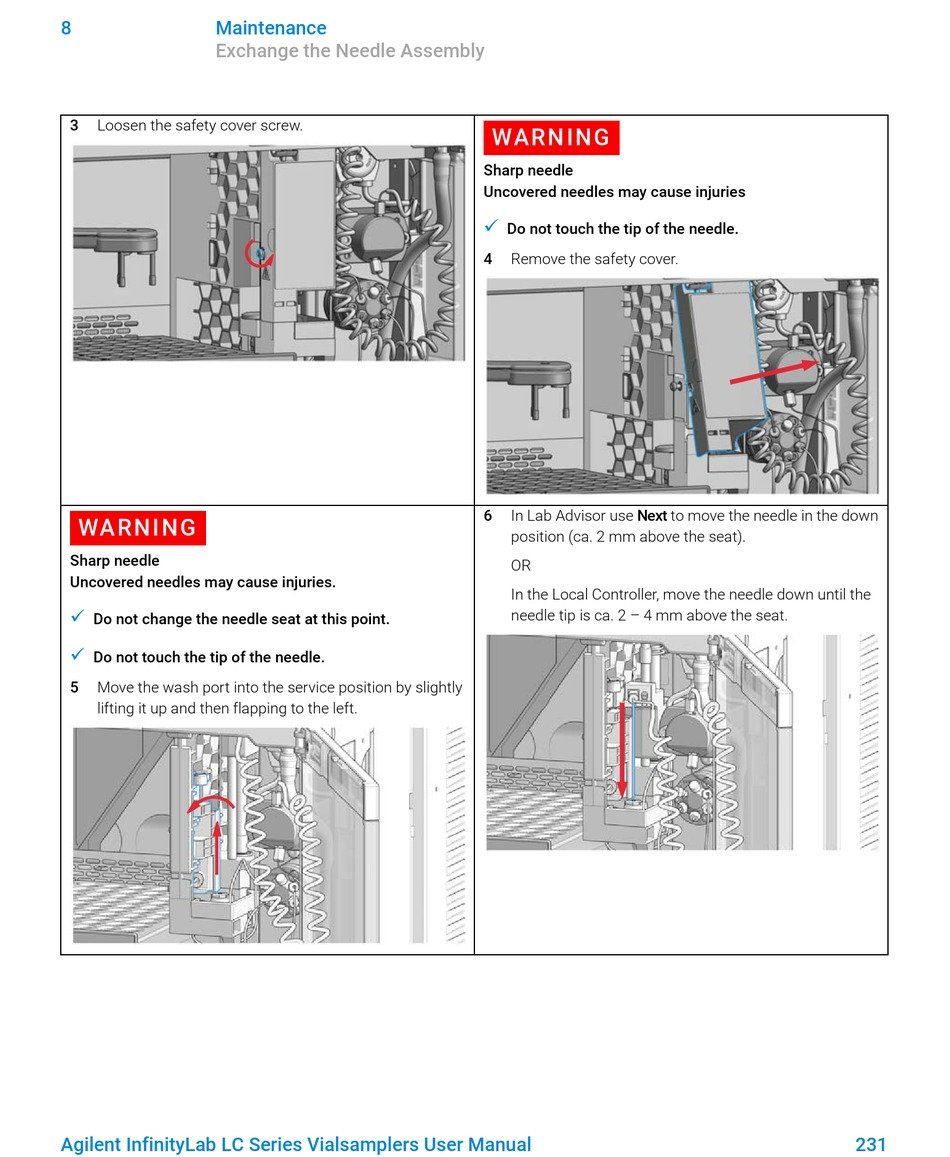

Exchange the Needle Assembly
3 Loosen the safety cover screw.
WAR N IN G
Sharp needle
Uncovered needles may cause injuries.

Do not change the needle seat at this point.

Do not touch the tip of the needle.
5 Move the wash port into the service position by slightly
lifting it up and then flapping to the left.
Agilent InfinityLab LC Series Vialsamplers User Manual
WAR N IN G
Sharp needle
Uncovered needles may cause injuries

Do not touch the tip of the needle.
4 Remove the safety cover.
6 In Lab Advisor use Next to move the needle in the down
position (ca. 2 mm above the seat).
OR
In the Local Controller, move the needle down until the
needle tip is ca. 2 – 4 mm above the seat.
