8 Maintenance

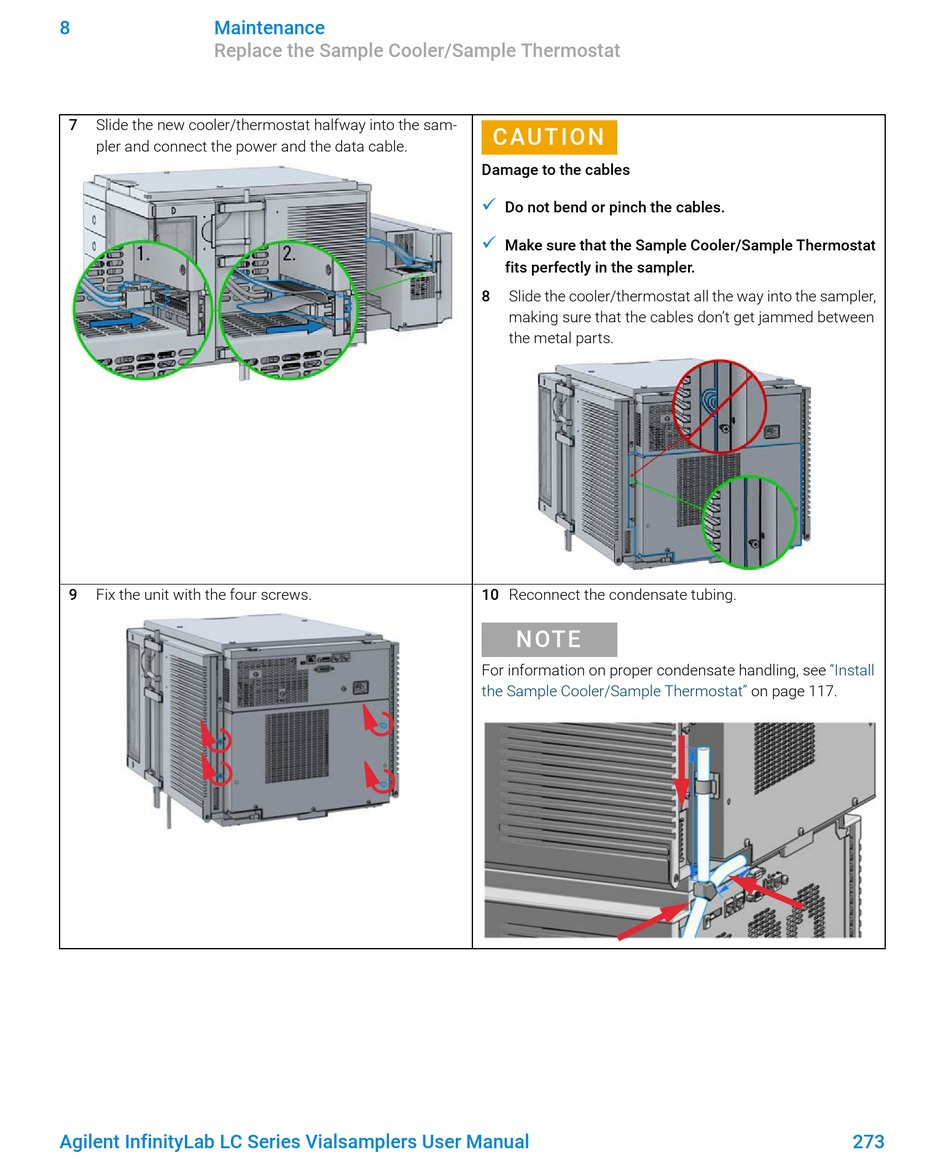

Replace the Sample Cooler/Sample Thermostat
7 Slide the new cooler/thermostat halfway into the sam-
pler and connect the power and the data cable.
9 Fix the unit with the four screws.
Agilent InfinityLab LC Series Vialsamplers User Manual
C AU T I O N
Damage to the cables

Do not bend or pinch the cables.

Make sure that the Sample Cooler/Sample Thermostat
fits perfectly in the sampler.
8 Slide the cooler/thermostat all the way into the sampler,
making sure that the cables don't get jammed between
the metal parts.
10 Reconnect the condensate tubing.
NOTE
For information on proper condensate handling, see
the Sample Cooler/Sample Thermostat"
"Install
on page 117.
