3 Using the Module
Install the Optional Integrated Column Compartment

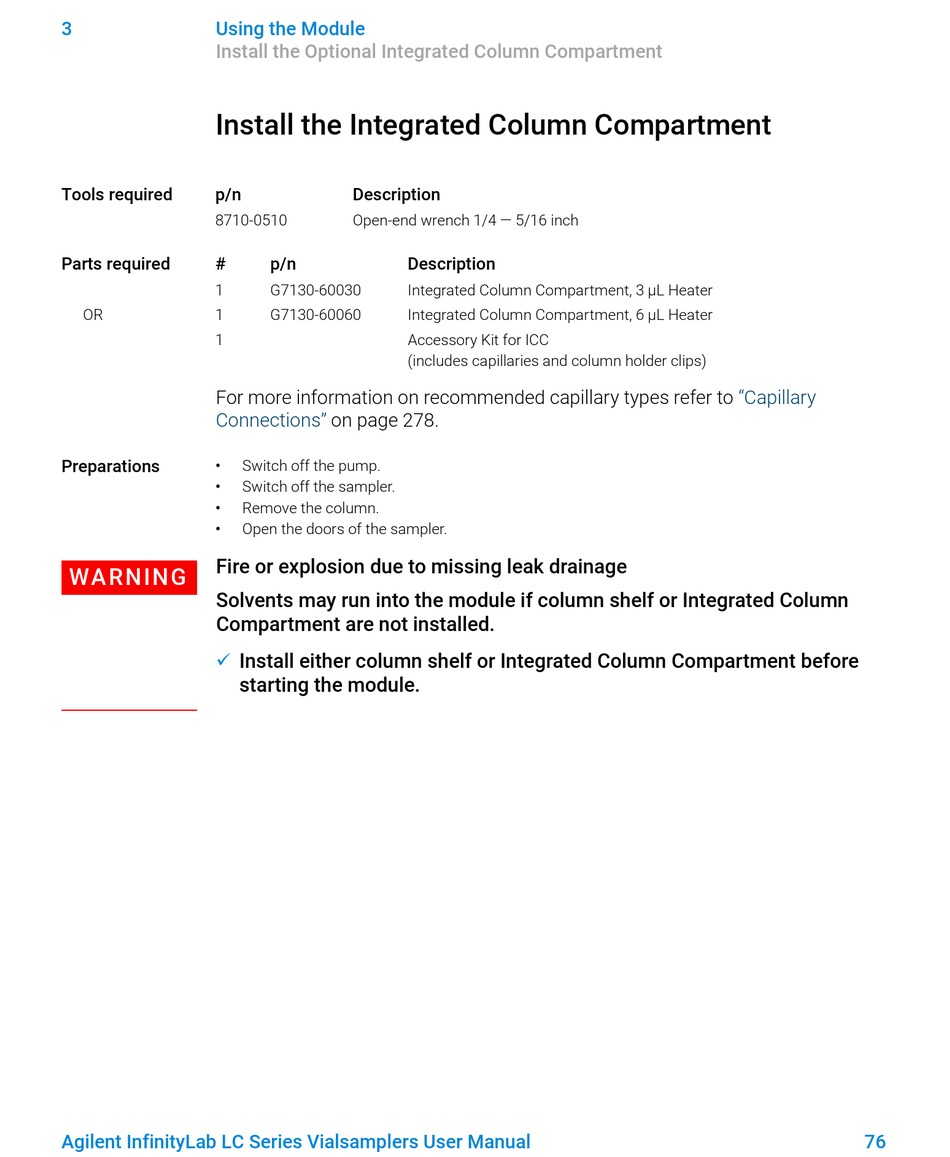

Install the Integrated Column Compartment
Tools required p/n
8710-0510
Parts required #
1
OR 1
1
For more information on recommended capillary types refer to
Connections"
Preparations
•
•
•
•
Fire or explosion due to missing leak drainage
WAR N IN G
Solvents may run into the module if column shelf or Integrated Column
Compartment are not installed.
Install either column shelf or Integrated Column Compartment before

starting the module.
Agilent InfinityLab LC Series Vialsamplers User Manual
Description
Open-end wrench 1/4 — 5/16 inch
p/n Description
G7130-60030 Integrated Column Compartment, 3 µL Heater
G7130-60060 Integrated Column Compartment, 6 µL Heater
Accessory Kit for ICC
(includes capillaries and column holder clips)
on page 278.
Switch off the pump.
Switch off the sampler.
Remove the column.
Open the doors of the sampler.
"Capillary
