G720-Install-IG101 Installation Guide
Attaching the Rear Brackets to the Rack Posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts,
as shown in the figure. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts.
Use the upper and lower holes in the bracket.
3. Tighten all 10-32 x 5/8-in. screws to a torque of 29 cm-kg (25 in.-lb).

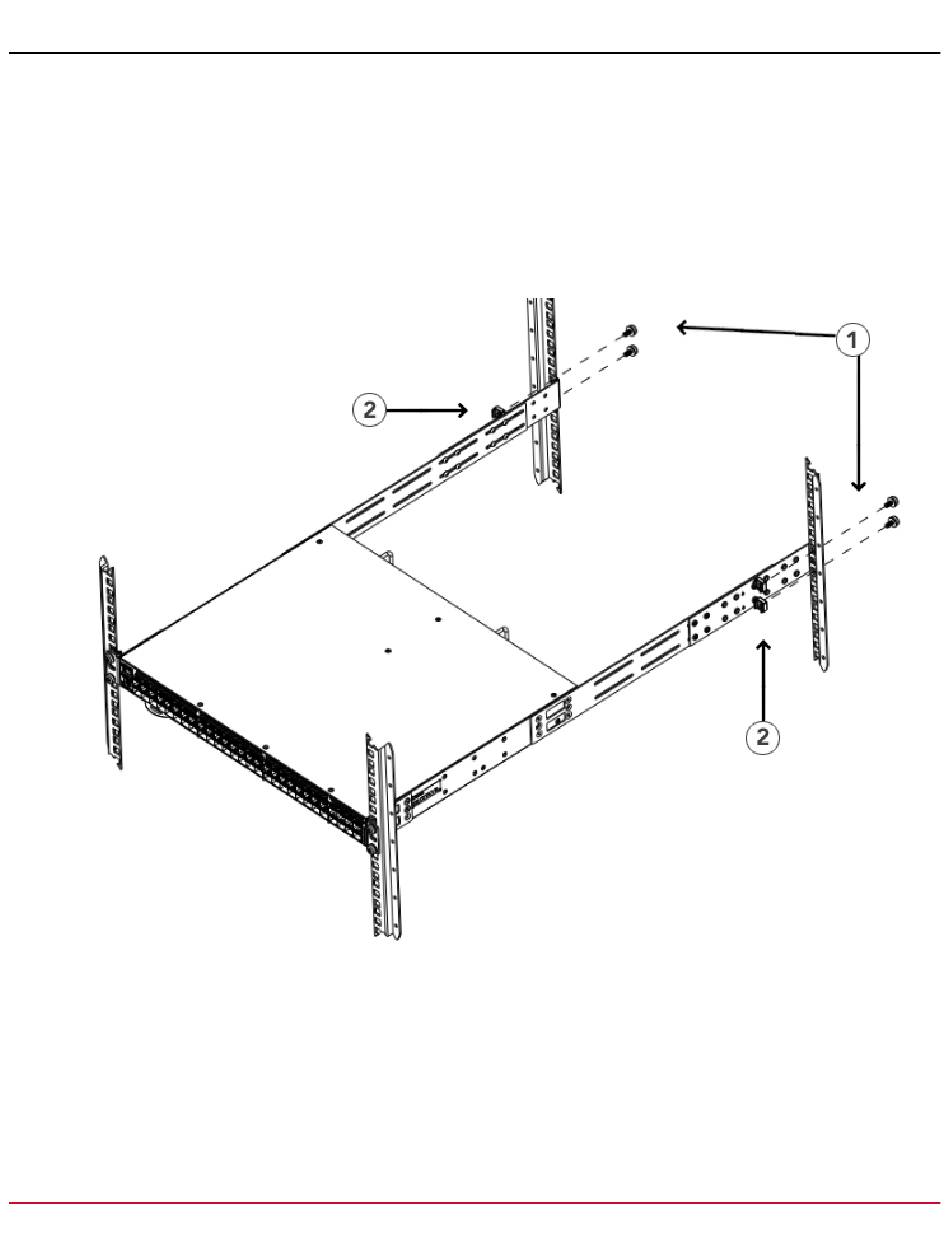

Figure 8: Attaching the Rear Brackets to the Rack Posts
1. Screws, 10-32 x 5/8-in. Panhead Phillips
2. Retainer Nuts, 10-32
Flush-Rear (Recessed) Mounting
Flush-rear (recessed) mounting is similar to flush-front mounting except that the brackets are reversed on the device.
Broadcom
®
Brocade
G720 Switch Hardware Installation Guide
G720-Install-IG101
27
